8361SI10.00A802

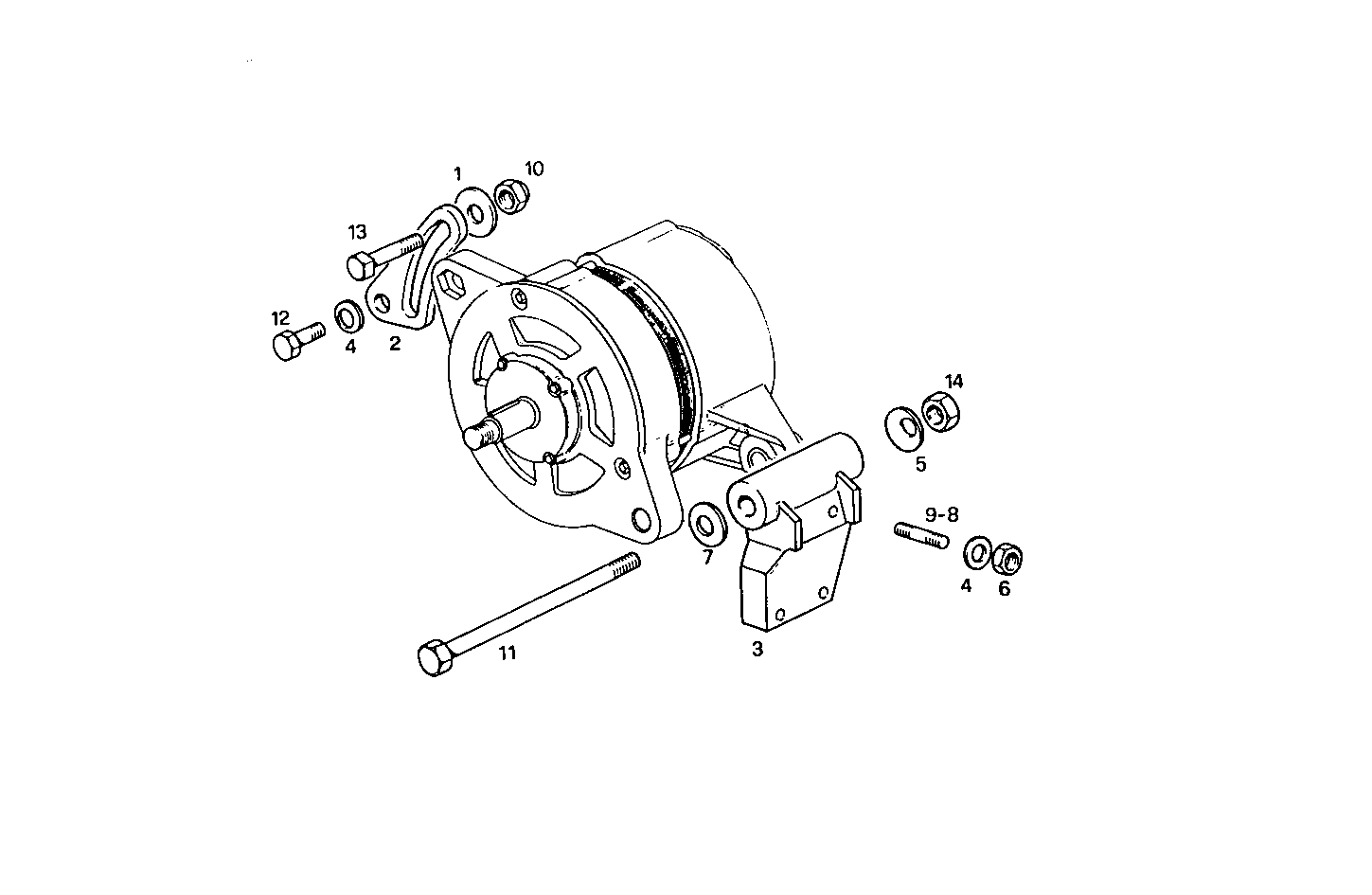

4010.111 MOUNT

Iveco/FPT MOUNT

Item Part number Description
1 4513436 SUPPORT RING Ø10X21X2 MM
2 4712521 BELT TENSIONER
3 4733103 SUPPORT
4 17090274 WASHER Ø10X20 MM
5 17091174 SPRING WASHER Ø12X24 MM
6 17038221 HEXAGON NUT M10
7 12646901 WASHER Ø12X28 MM
8 13546921 STUD M8X12X22 MM
9 13547721 STUD M10X20X90
10 17157221 NUT M10X1,25
11 15541921 HEXAGON BOLT M12X1,25X130 MM
12 15004021 HEXAGON BOLT M10X1,25X25 MM
13 15970924 HEXAGON BOLT M10X1,25X35 MM
14 17038621 NUT M12
