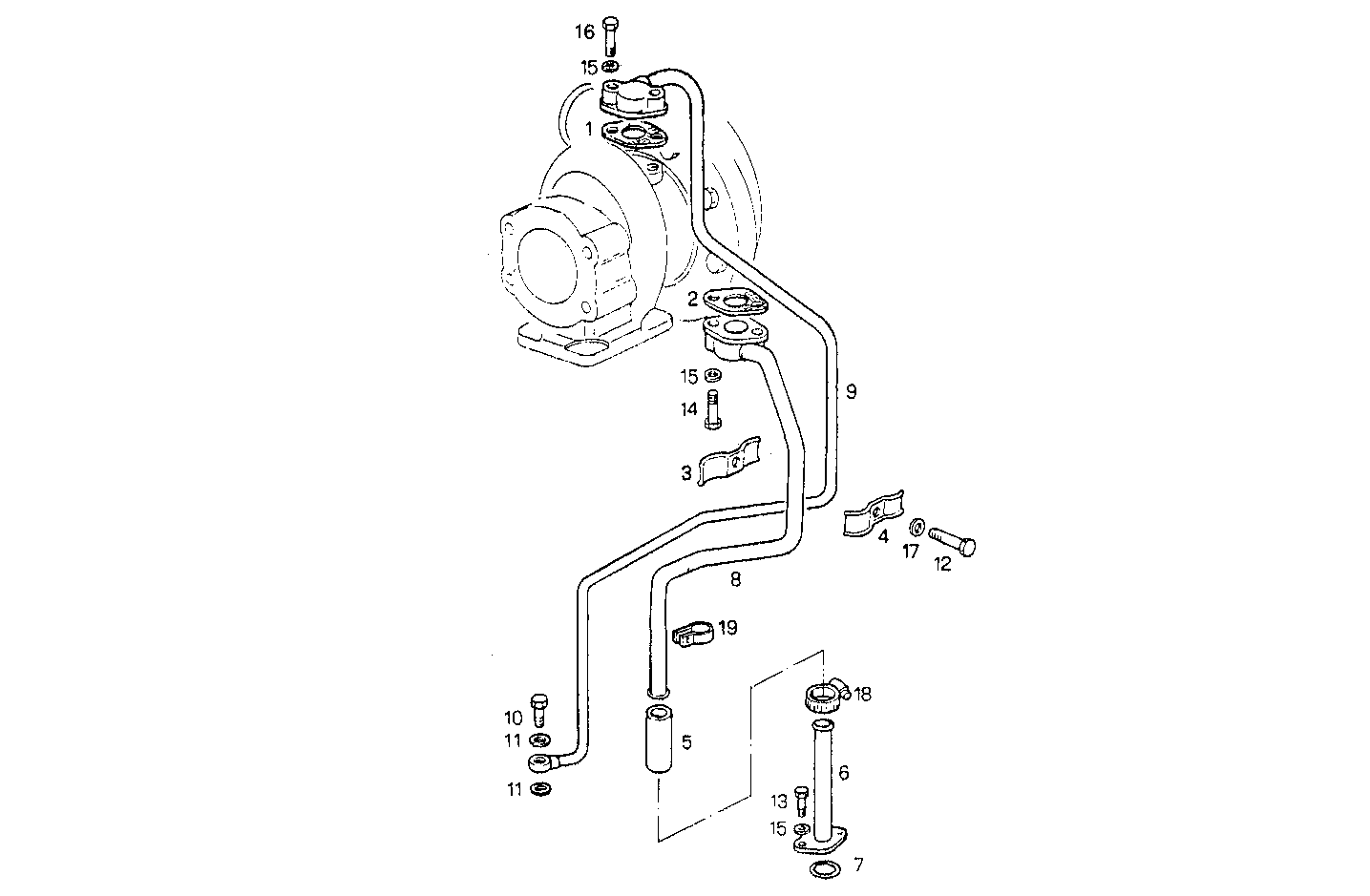

| Item |
Part number |
Description |
|
1 |
98415922 |
FLAT ENGINE GASKET |
|
2 |
98412509 |
FLAT ENGINE GASKET |
|
3 |
4754649 |
RETAINER |
|
4 |
4754651 |
RETAINER |
|
5 |
98420478 |
RUBBER SLEEVE |
|
6 |
98426497 |
OIL LINE |
|
7 |
14457981 |
WASHER |
|
8 |
98426499 |
OIL LINE |
|
9 |
98428334 |
OIL LINE |
|
10 |
4864084 |
BANJO BOLT M16X1,5 |
|
11 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
12 |
10902321 |
HEXAGON BOLT M6X18 MM (8.8) |
|
13 |
16043621 |
HEXAGON BOLT M8X25 MM |
|
14 |
16044524 |
SCREW M8X65 |
|
15 |
11193871 |
WASHER Ø8X16X1,4 MM |
|
16 |
16625734 |
HEXAGON BOLT M8X35 |
|
17 |
11197771 |
SPRING WASHER Ø6X12 MM SP=1,2 MM |
|
18 |
17764592 |
CLIP Ø20/32 MM |
|
19 |
10450690 |
PIPE CLIP Ø20 MM |
