8361Si11.05

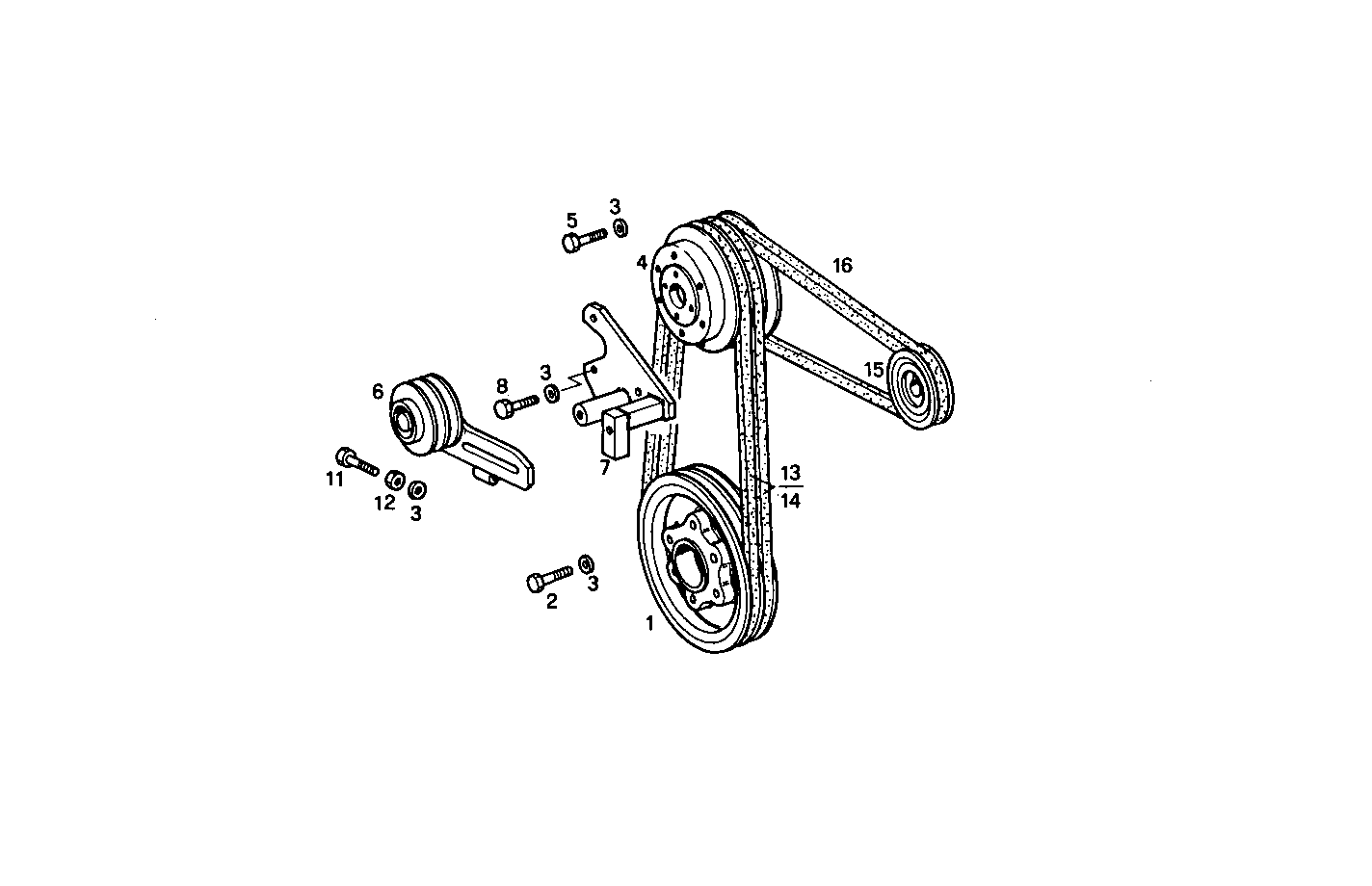

A12050001 PREARRANGEMENT BELTS DOUBLE DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 8112730 | PULLEY |
| 2 | 15888831 | HEXAGON BOLT M10X70 MM |
| 3 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 4 | 8112729 | PULLEY |
| 5 | 11306931 | SCREW M10X1,25X30 |
| 6 | 8112733 | BELT TENSIONER |
| 7 | 8112731 | SUPPORT |
| 8 | 15971321 | HEXAGON BOLT M10X1,25X75 MM |
| 11 | 15231721 | SCREW M10X1,25X65 |
| 12 | 15164711 | NUT |
| 13 | 4739632 | V-BELT |
| 14 | 4763649 | SET OF V-BELTS KIT |
| 15 | 8112961 | PULLEY |
| 16 | 4830442 | V-BELT |
