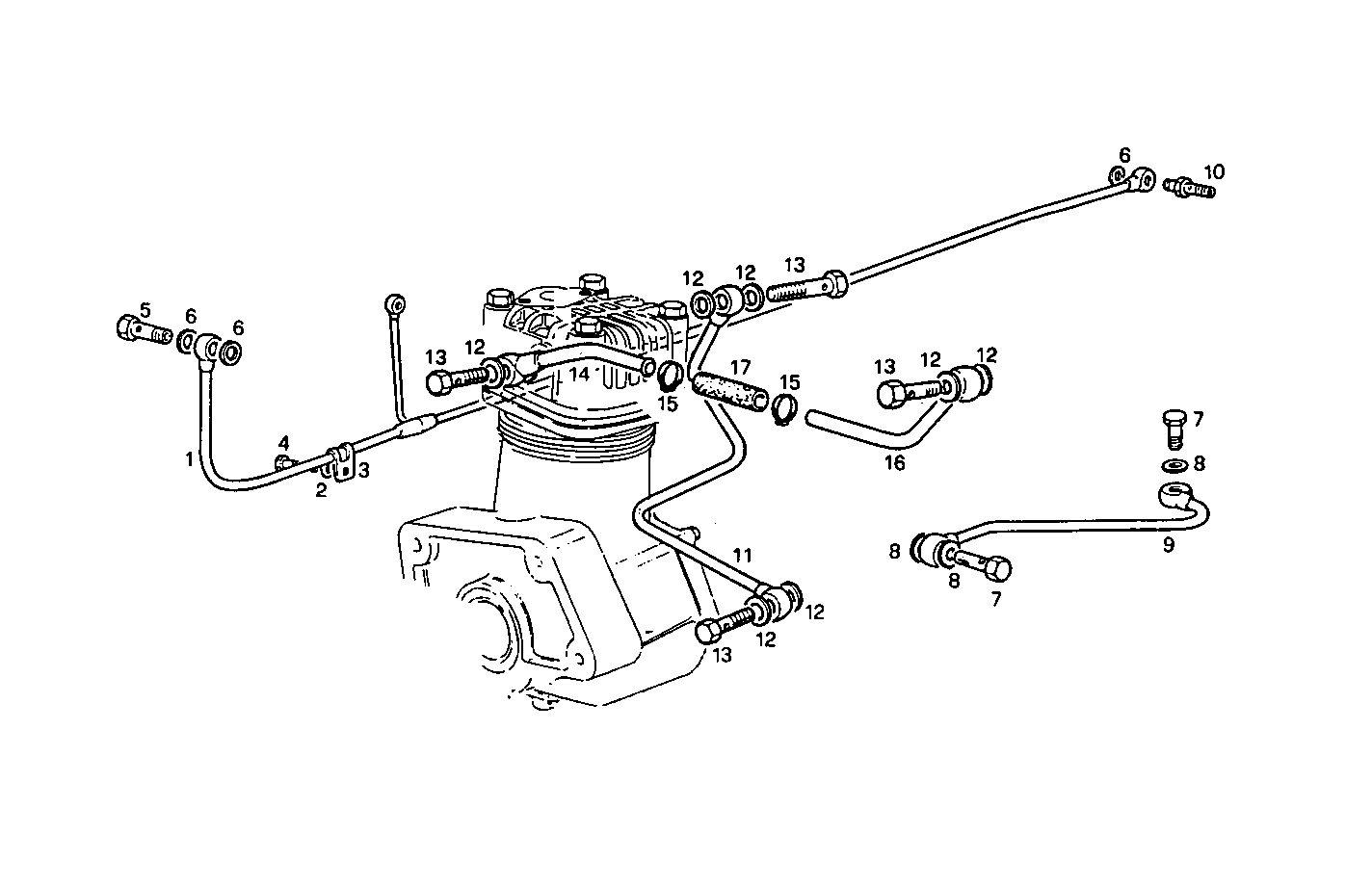

| Item |
Part number |
Description |
|
1 |
8012380 |
OIL LINE |
|
2 |
11197771 |
SPRING WASHER Ø6X12 MM SP=1,2 MM |
|
3 |
10450090 |
PIPE CLIP Ø8 MM |
|
4 |
10902121 |
HEXAGON BOLT M6X14 MM |
|
5 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
6 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
7 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
8 |
4858606 |
GASKET Ø10X14X1 MM |
|
9 |
4731129 |
OIL LINE |
|
10 |
4930504 |
SCREW CONNECTOR |
|
11 |
4715861 |
WATER PIPE |
|
12 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
13 |
4864084 |
BANJO BOLT M16X1,5 |
|
14 |
8011718 |
WATER PIPE |
|
15 |
12179590 |
CLIP Ø14-24 MM |
|
16 |
8011717 |
WATER PIPE |
|
17 |
12074286 |
RUBBER SLEEVE |
