8361Si11.05

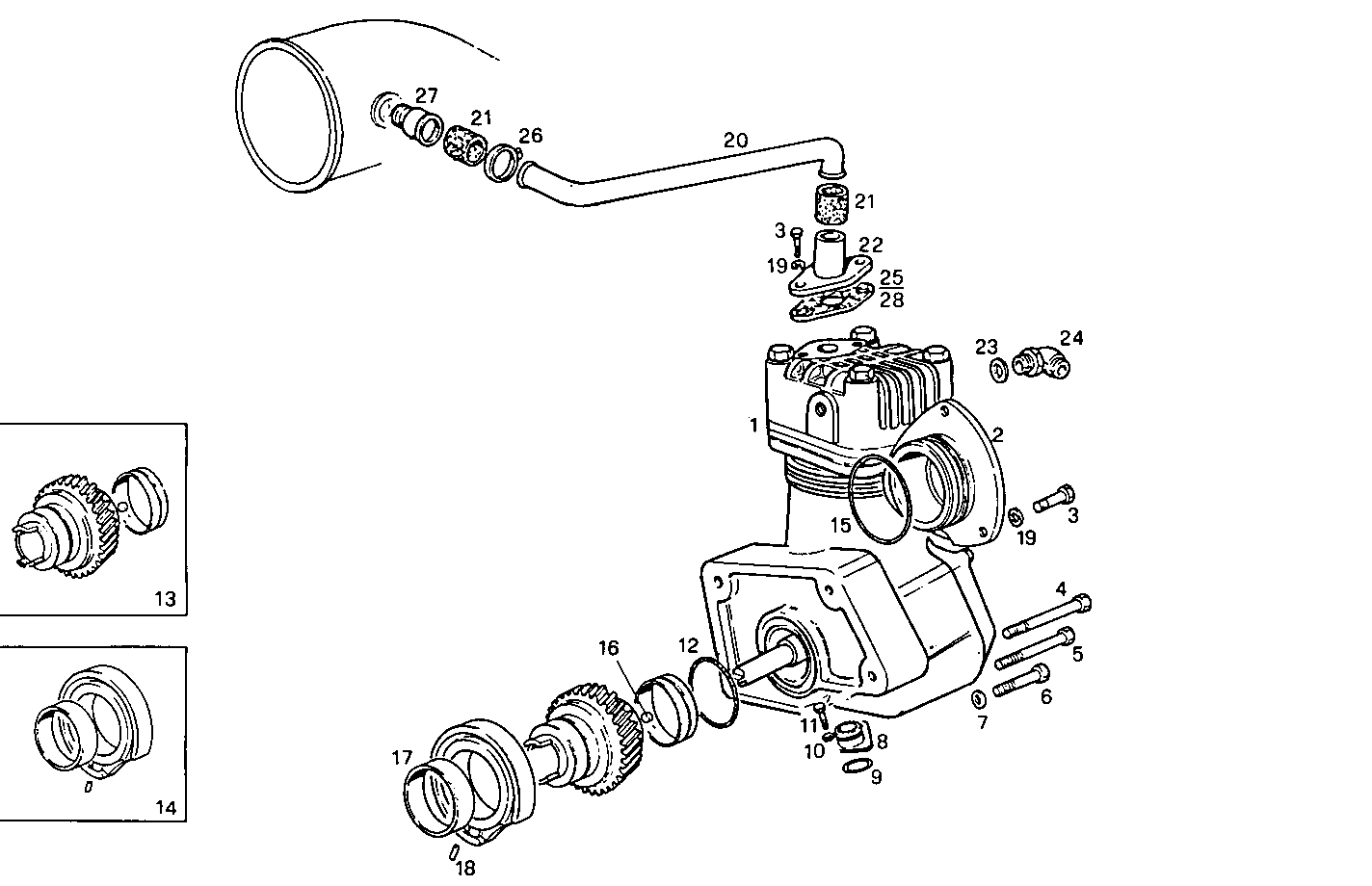

A18030007/02 AIR COMPRESSOR - 170cc MARELLI

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 99440225 AIR COMPRESSOR ASSY BENDIX
2 4726906 COVER
3 16043421 HEXAGON BOLT M8X20 MM
4 15071821 SCREW
5 15971621 HEXAGON BOLT M10X1,25X90 MM
6 10923621 HEXAGON BOLT M10X1,25X35 MM
7 11198371 SPRING WASHER Ø10X20 MM
8 4711788 PIPE
9 14457581 O-RING Ø20,29 MM SP=2,62 MM
11 10902121 HEXAGON BOLT M6X14 MM
12 14464081 O-RING SP=3,53 MM
13 4708217 GEAR ASSY
14 4708219 SUPPORT ASSY
15 14460181 O-RING SP=2,62 MM
16 14327101 LOCK PLUG Ø7 MM
17 10837610 DOWEL PIN Ø8 MM
18 4692781 CENTERING BUSH
20 8107906 AIR PIPE/DUCT
21 12080686 RUBBER SLEEVE Ø25 MM
22 8101132 PIPE SOCKET
23 10264560 SEAL GASKET Ø24X32 MM SP=1,5 MM
24 8830348 ELBOW COUPLING
25 4513714 GASKET
26 12173890 CLIP Ø25/40 MM
27 4734507 THREADED UNION
28 3881554 GASKET
