8361SM21.00

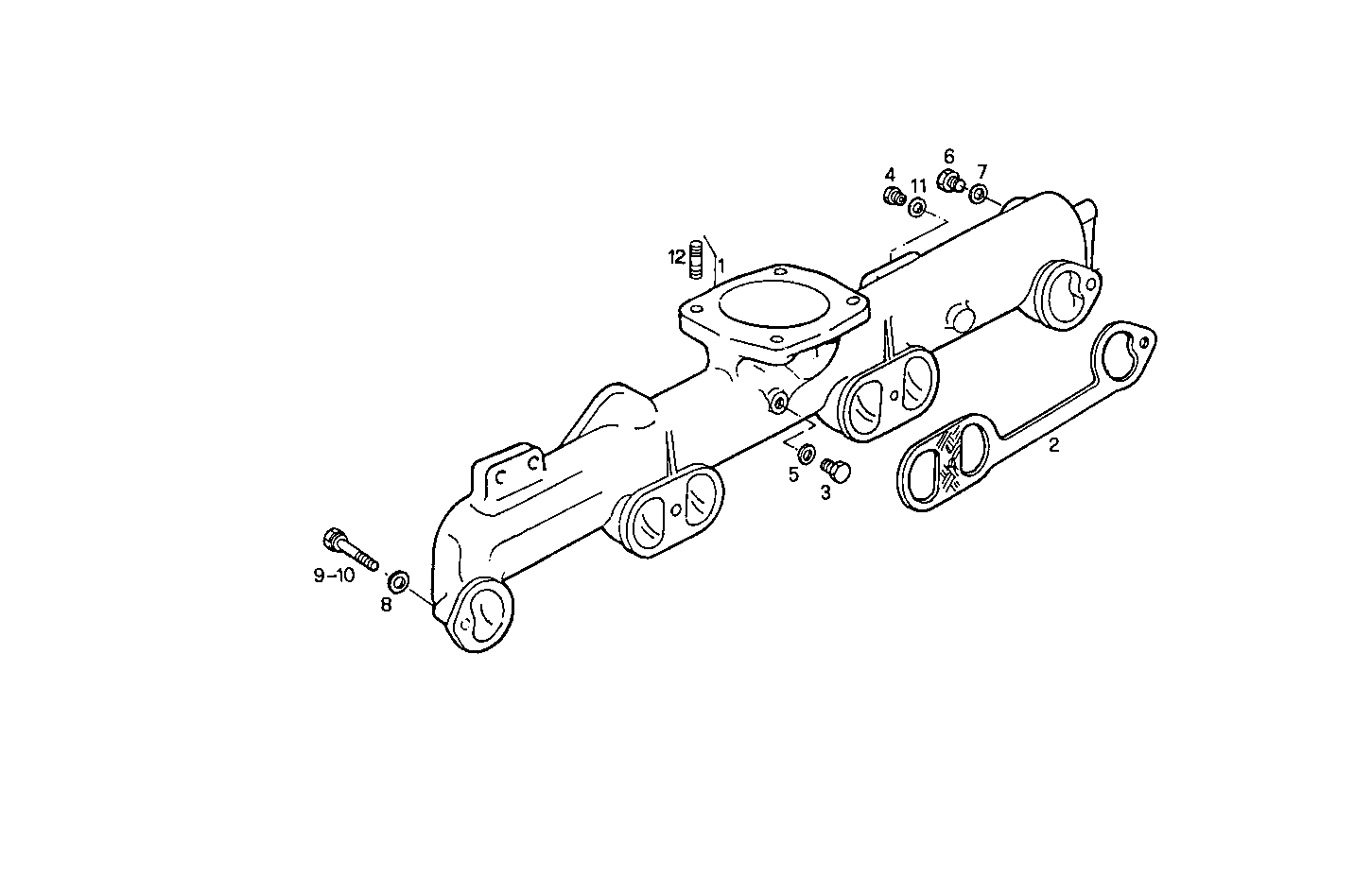

0710.021 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 4726705 INTAKE ELBOW ASSY
2 500300885 INTAKE ELBOW GASK.
3 4577310 THREADED PLUG
4 4753563 PLUG M10X1,5
5 10263360 SEAL GASKET 20x26x1
6 10276401 LOCK PLUG M24X1,5
7 10264560 SEAL GASKET Ø24X32 MM SP=1,5 MM
8 10520001 WASHER Ø12X22 MM
9 15541021 HEXAGON BOLT M12X1,25X60 MM
10 15541621 HEXAGON BOLT M12X1,25X100 MM
11 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
12 13543421 STUD M8X16 MM
