8361SM21.00

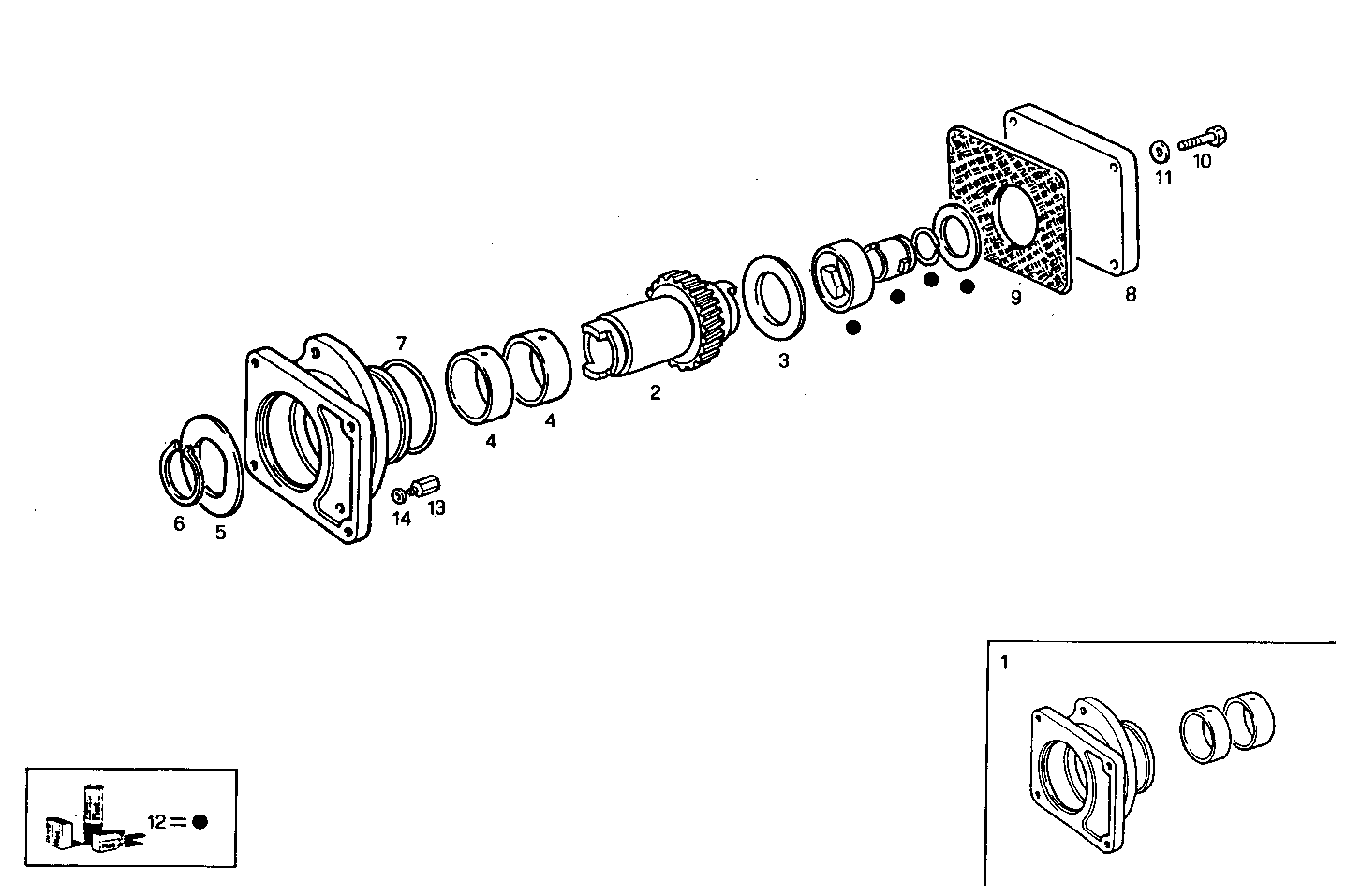

A09080012 ARRANGED FOR HYDRAULIC PUMP - loose
Item | Part number | Description |
---|---|---|
1 | 8009813 | SUPPORT ASSY |
2 | 4724168 | SHAFT |
3 | 4667452 | SUPPORT RING |
4 | 4607586 | BUSH |
5 | 4755621 | RING |
6 | 4725414 | SPRING LOCKWASHER |
7 | 14460181 | O-RING SP=2,62 MM |
8 | 564530 | COVER |
9 | 4538832 | FLAT ENGINE GASKET |
10 | 10902221 | HEXAGON BOLT M6X16 MM |
11 | 11197779 | SPRING WASHER Ø6X12 MM |
12 | 8090343 | KIT-HYDRAULIC PUMP |
13 | 8009814 | SPACING BAR |
14 | 4858606 | GASKET Ø10X14X1 MM |
