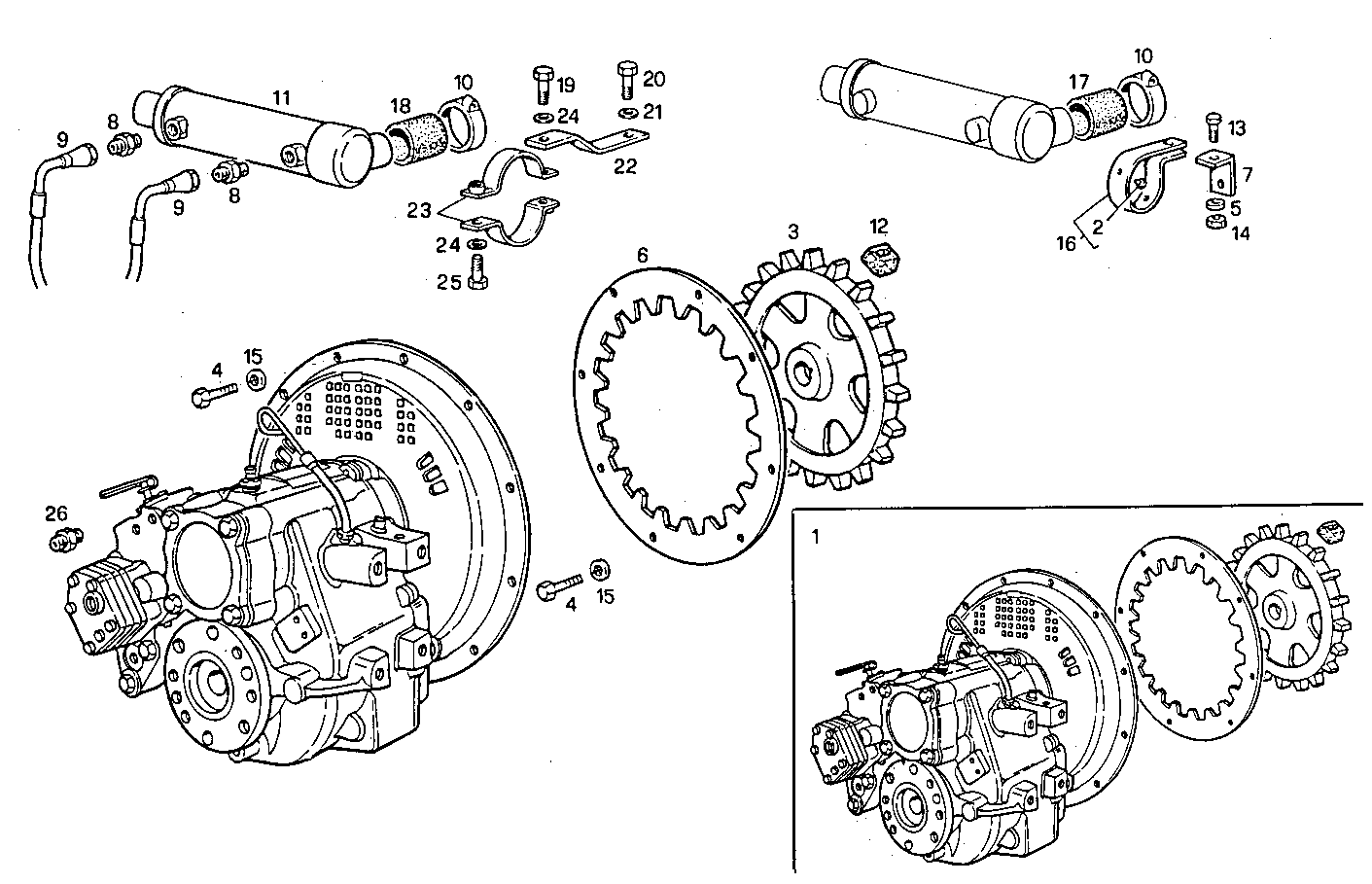

| Item |
Part number |
Description |
|
1 |
8006209 |
MARINE GEAR 2,04:1 |
|
2 |
4568427 |
RUBBER PAD |
|
3 |
8007790 |
UNIVERSAL JOINT |
|
4 |
11306921 |
SCREW M10X1,25X30 |
|
5 |
17090274 |
WASHER Ø10X20 MM |
|
6 |
8007789 |
FLANGE |
|
7 |
8103023 |
RETAINER |
|
8 |
4935465 |
PIPE SOCKET |
|
9 |
8105619 |
HOSE |
|
10 |
17764993 |
CLIP Ø50/70 MM |
|
11 |
4918188 |
MARINE GEAR OIL HEAT EXCH ASSY |
|
12 |
4932462 |
DOWEL |
|
13 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
14 |
12164711 |
HEXAGON NUT M10X1,25 |
|
16 |
8013591 |
CLIP ASSY [up to 06-93] |
|
17 |
17742687 |
RUBBER SLEEVE |
|
18 |
8016662 |
RUBBER SLEEVE |
|
19 |
16606024 |
SCREW M8X45 MM |
|
21 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
22 |
8100407 |
RETAINER |
|
23 |
5116798 |
CLIP ASSY [from 06-93] |
|
24 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
25 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
26 |
8101161 |
PIPE SOCKET |
