8361SM21.01

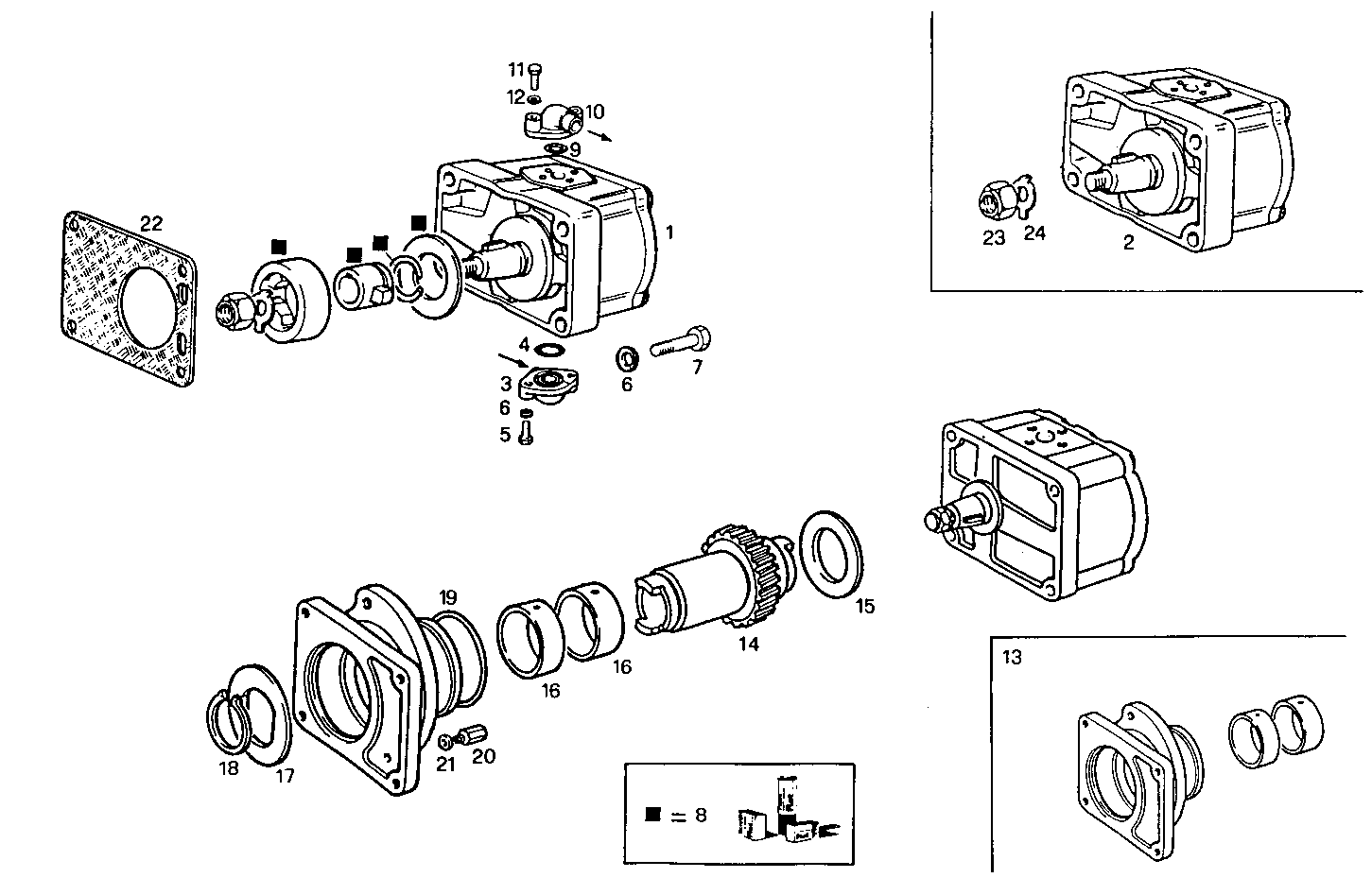

A09040008 FRONT HYDRAULIC PUMP
Item | Part number | Description |
---|---|---|
1 | 5169039 | HYDRAULIC PUMP ASSY PLESSEY C31 |
2 | 5179728 | HYDRAULIC PUMP ASSY BOSCH |
3 | 4670953 | PIPE SOCKET |
4 | 14457280 | O-RING Ø2,62X15,54 MM |
5 | 14305521 | SCREW M6X30 |
6 | 11197779 | SPRING WASHER Ø6X12 MM |
7 | 10902821 | HEXAGON BOLT M6X30 MM |
8 | 8090343 | KIT-HYDRAULIC PUMP |
9 | 14457680 | O-RING Ø21,89 MM |
10 | 4690715 | PIPE SOCKET |
11 | 14306621 | SCREW M8X35 |
12 | 11193879 | SPRING WASHER Ø8X16 MM |
13 | 8009813 | SUPPORT ASSY |
14 | 4724168 | SHAFT |
15 | 4667452 | SUPPORT RING |
16 | 4607586 | BUSH |
17 | 4755621 | RING |
18 | 4725414 | SPRING LOCKWASHER |
19 | 14460181 | O-RING SP=2,62 MM |
20 | 8009814 | SPACING BAR |
21 | 4858606 | GASKET Ø10X14X1 MM |
22 | 4538832 | FLAT ENGINE GASKET |
23 | 8273919 | NUT BOSCH |
24 | 8273920 | WASHER BOSCH |
