8361SM21.01

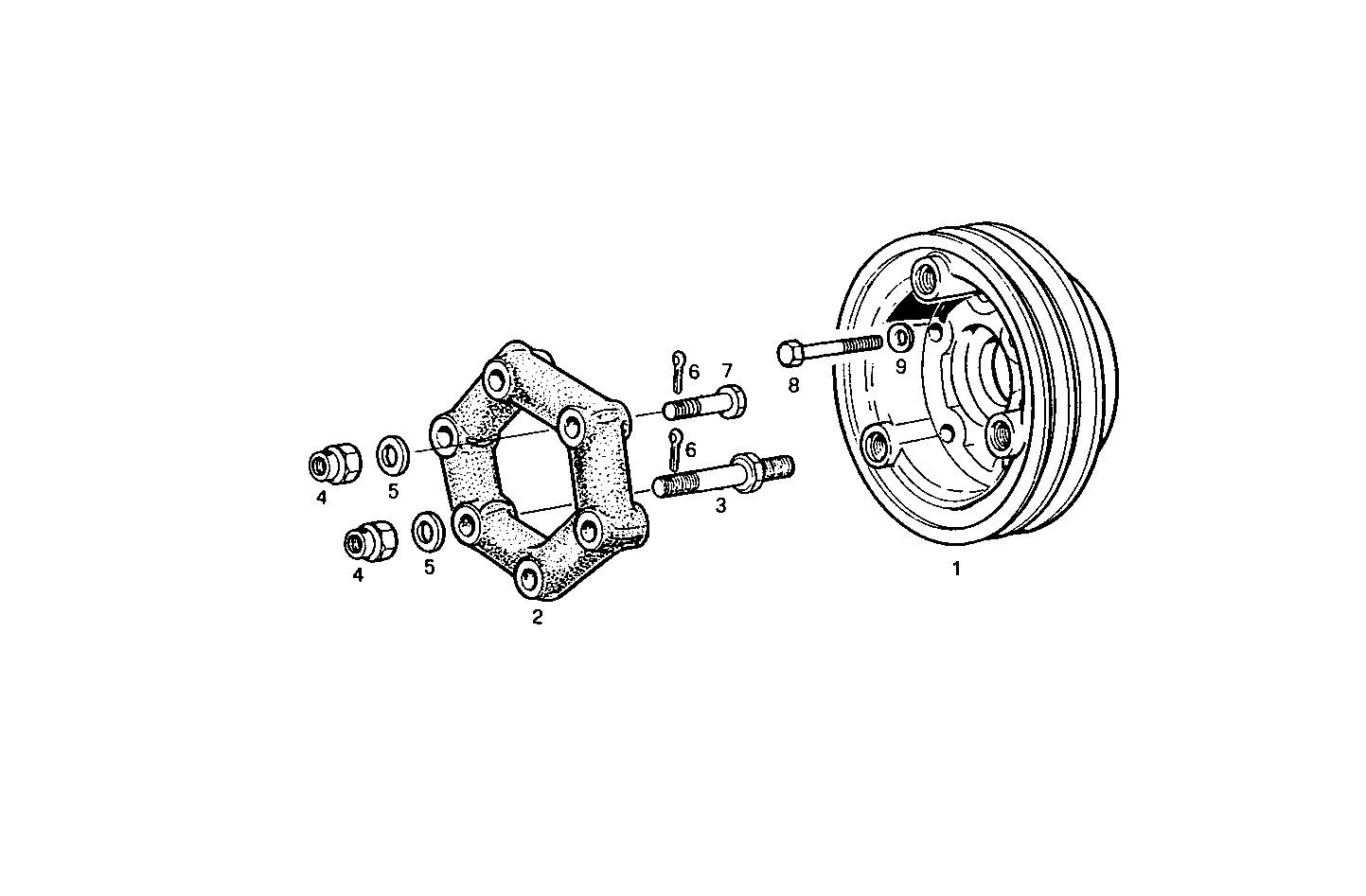

A26060001 PULLEY ON ENGINE AXIS - with additional groves with flexible coupling
| Item | Part number | Description |
|---|---|---|
| 1 | 4936583 | PULLEY |
| 2 | 4927373 | FLEXIBLE COUPLING |
| 3 | 4927437 | STUD |
| 4 | 10792321 | CASTLE NUT M14X1,5 |
| 5 | 10520101 | WASHER Ø14X24 MM |
| 6 | 10734601 | SPLIT PIN Ø3,2 MM |
| 7 | 4927438 | SCREW |
| 8 | 15971631 | HEXAGON BOLT M10X1,25X90 |
| 9 | 11198371 | SPRING WASHER Ø10X20 MM |
