8361SM21.01A580

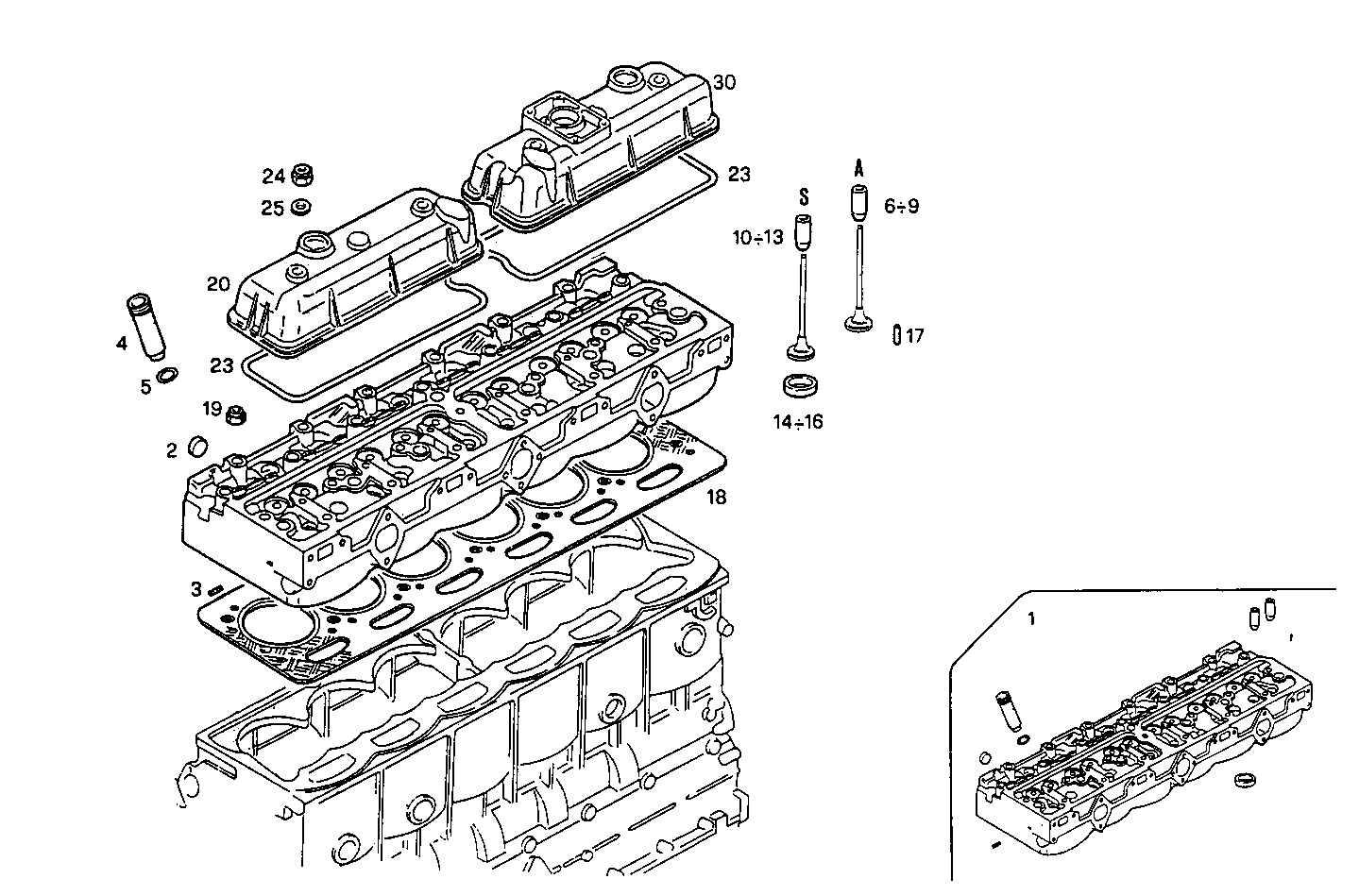

0600.095/01 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 4798421 | CYLINDER HEAD ASSY |
| 2 | 16990870 | LOCK PLUG Ø28 MM |
| 3 | 14326001 | THREADED PLUG M10X1,25 |
| 4 | 4707319 | NOZZLE HOLDER SEAT |
| 5 | 17278981 | O-RING Ø25,12 MM SP=1,78 MM |
| 6 | 4758794 | VALVE GUIDE |
| 7 | 4758795 | VALVE GUIDE +0.04 |
| 8 | 4758796 | VALVE GUIDE +0,2 |
| 9 | 4758797 | VALVE GUIDE +0,4 |
| 10 | 4758798 | VALVE GUIDE |
| 11 | 4758799 | VALVE GUIDE +0.04 |
| 12 | 4758800 | VALVE GUIDE +0,2 |
| 13 | 4758801 | VALVE GUIDE +0,4 |
| 14 | 8829237 | VALVE SEAT STD. +0,0 MM |
| 15 | 8829262 | VALVE SEAT +0.20 |
| 16 | 8829263 | VALVE SEAT +0.05 |
| 17 | 38819032 | DOWEL PIN |
| 18 | 4845364 | CYL.HEAD GASKET |
| 19 | 4713556 | NUT |
| 20 | 98418729 | CYL. HEAD COVER |
| 23 | 8829321 | HEAD COVER GASKET |
| 24 | 98418750 | NUT |
| 25 | 98418749 | WASHER |
| 30 | 98418733 | CYL. HEAD COVER |
