8361SM21.01A580

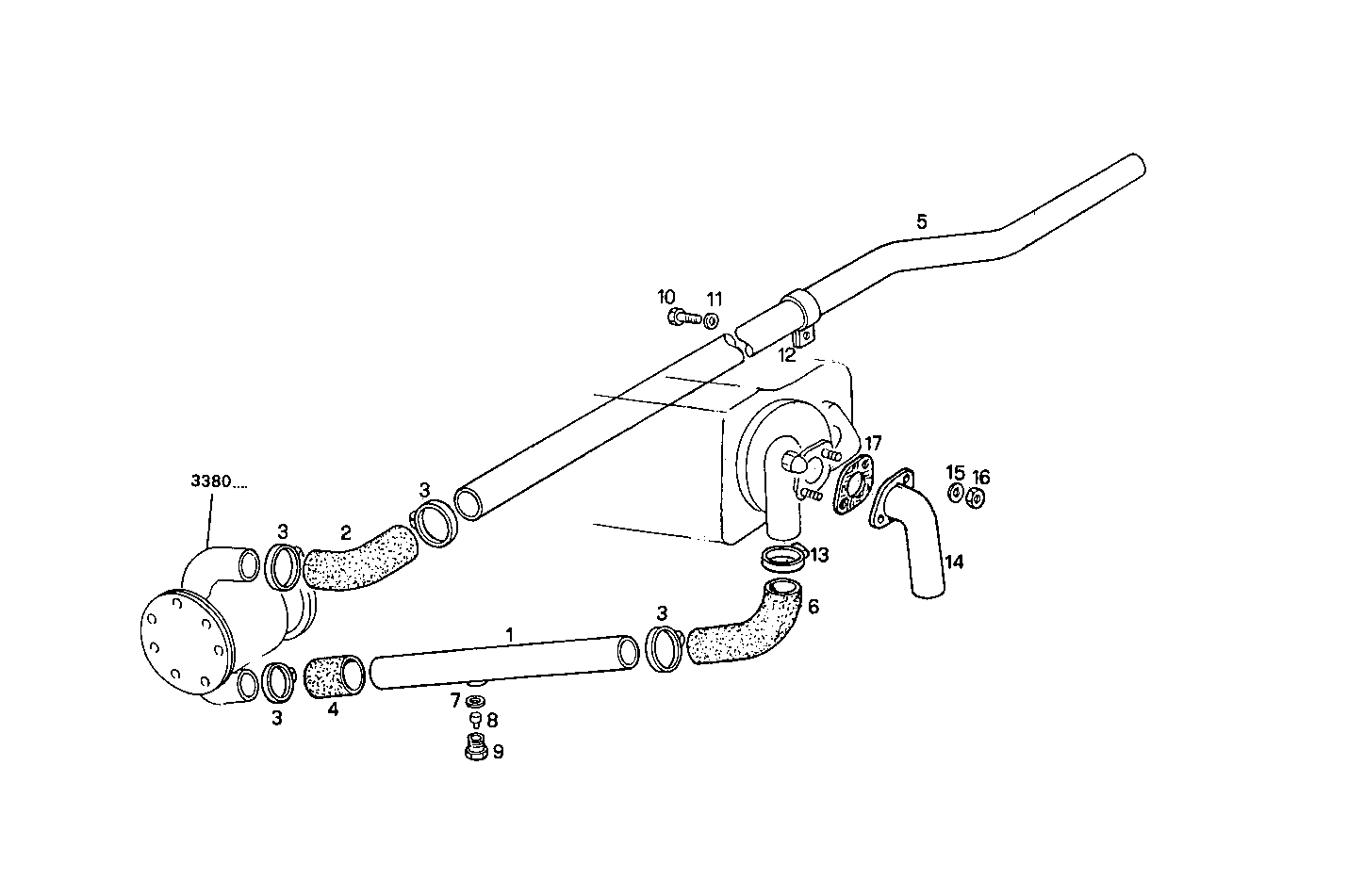

3390.008 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8112883 | WATER PIPE |
| 2 | 8100546 | RUBBER SLEEVE |
| 3 | 17764792 | HOSE CLIP Ø32-50 MM |
| 4 | 4919497 | RUBBER SLEEVE |
| 5 | 8112882 | WATER PIPE |
| 6 | 4936760 | RUBBER SLEEVE |
| 7 | 10263160 | SEAL GASKET Ø18X24 MM SP=1 MM |
| 8 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 9 | 4917793 | PLUG M18 |
| 10 | 15970524 | HEXAGON BOLT M10X1,25X20 |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 8103077 | CLIP |
| 13 | 17764992 | CLIP Ø50-70 MM |
| 14 | 8005049 | WATER PIPE |
| 15 | 11197879 | WASHER |
| 16 | 16100811 | HEXAGON NUT M8 |
| 17 | 8008755 | FLAT ENGINE GASKET |
