8361SRE10.00

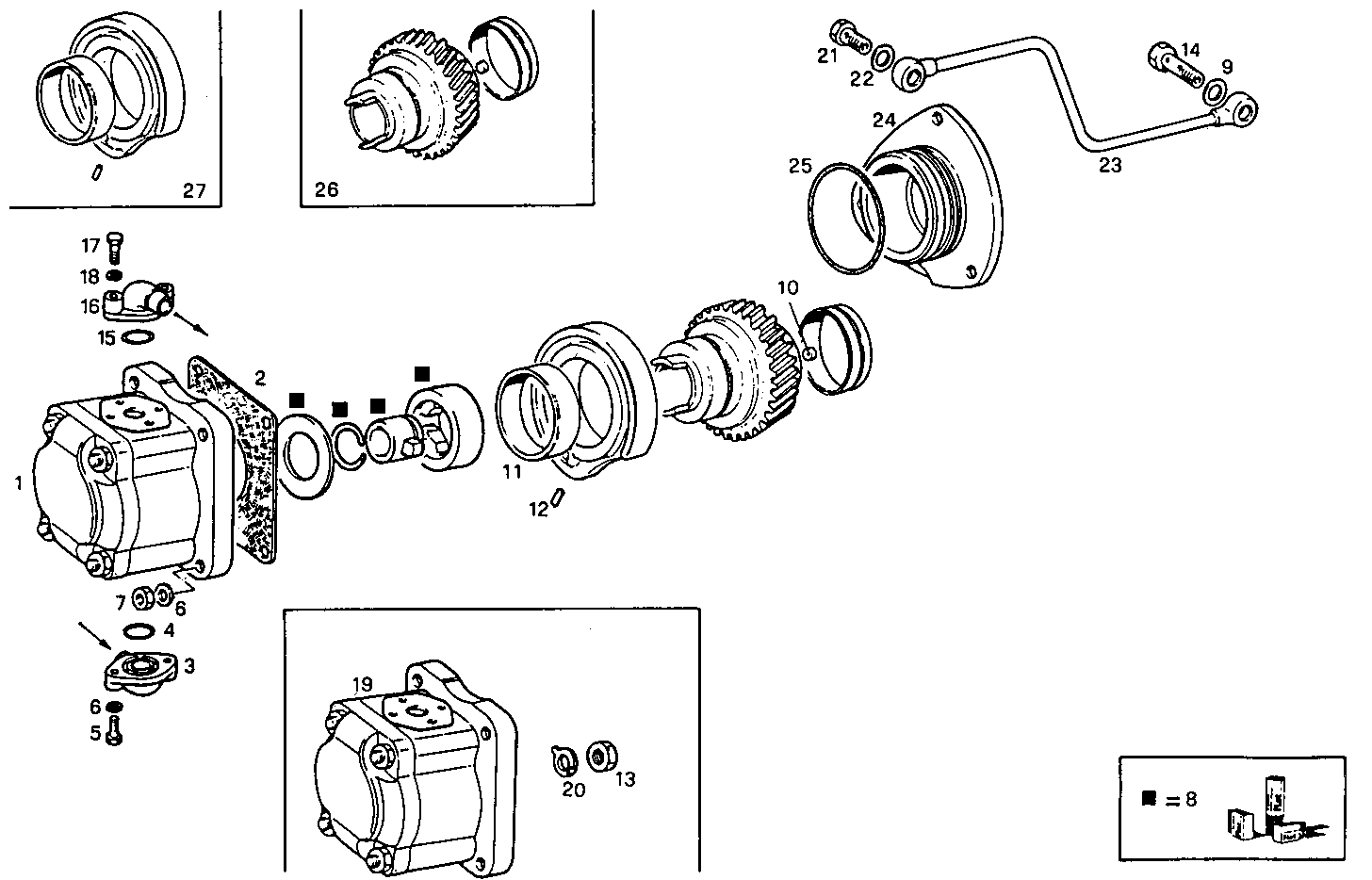

A09040004 LOW FRONT HYDRAULIC PUMP

Iveco/FPT LOW FRONT HYDRAULIC PUMP

Item Part number Description
1 5169039 HYDRAULIC PUMP ASSY PLESSEY C31
2 4850986 FLAT ENGINE GASKET
3 4670953 PIPE SOCKET
4 14457280 O-RING Ø2,62X15,54 MM
5 14305521 SCREW M6X30
6 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
6 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
7 15896211 HEXAGON NUT M6
8 8090343 KIT-HYDRAULIC PUMP
10 14327101 LOCK PLUG Ø7 MM
11 10837610 DOWEL PIN Ø8 MM
12 4692781 CENTERING BUSH
13 8273919 NUT BOSCH
14 4930504 SCREW CONNECTOR
15 14457680 O-RING Ø21,89 MM
16 4690715 PIPE SOCKET
17 14306621 SCREW M8X35
18 11198371 SPRING WASHER Ø10X20 MM
19 5179728 HYDRAULIC PUMP ASSY BOSCH
20 8273920 WASHER BOSCH
22 4858606 GASKET Ø10X14X1 MM
23 4826379 OIL LINE
24 4738944 COVER
25 14460181 O-RING SP=2,62 MM
26 4708217 GEAR ASSY
27 4708219 SUPPORT ASSY
