8361SRE10.00

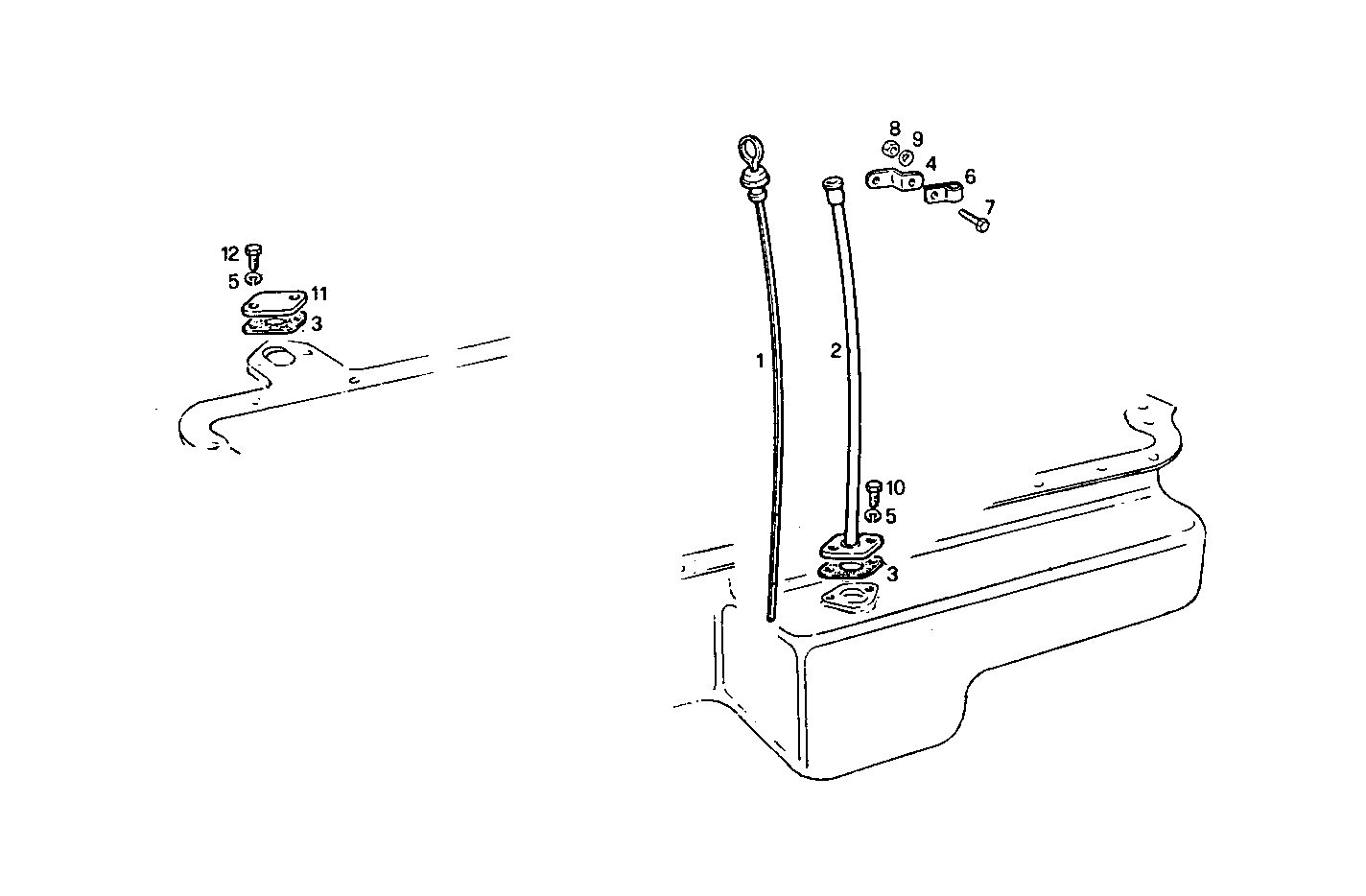

A41010003 LONG OIL DIPSTICK LEFT SIDE
| Item | Part number | Description |
|---|---|---|
| 1 | 4735922 | OIL DIPSTICK |
| 2 | 4804069 | OIL LINE |
| 3 | 4723428 | GASKET |
| 4 | 4735924 | RETAINER |
| 5 | 11193871 | WASHER Ø8X16X1,4 MM |
| 6 | 10418400 | CLIP |
| 7 | 10903621 | HEXAGON BOLT M6X50 MM |
| 8 | 15896211 | HEXAGON NUT M6 |
| 9 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 10 | 16044021 | HEXAGON BOLT M8X1,25X40 MM |
| 11 | 4726341 | COVER |
| 12 | 16043821 | HEXAGON BOLT M8X30 MM |
