8361SRE10.00

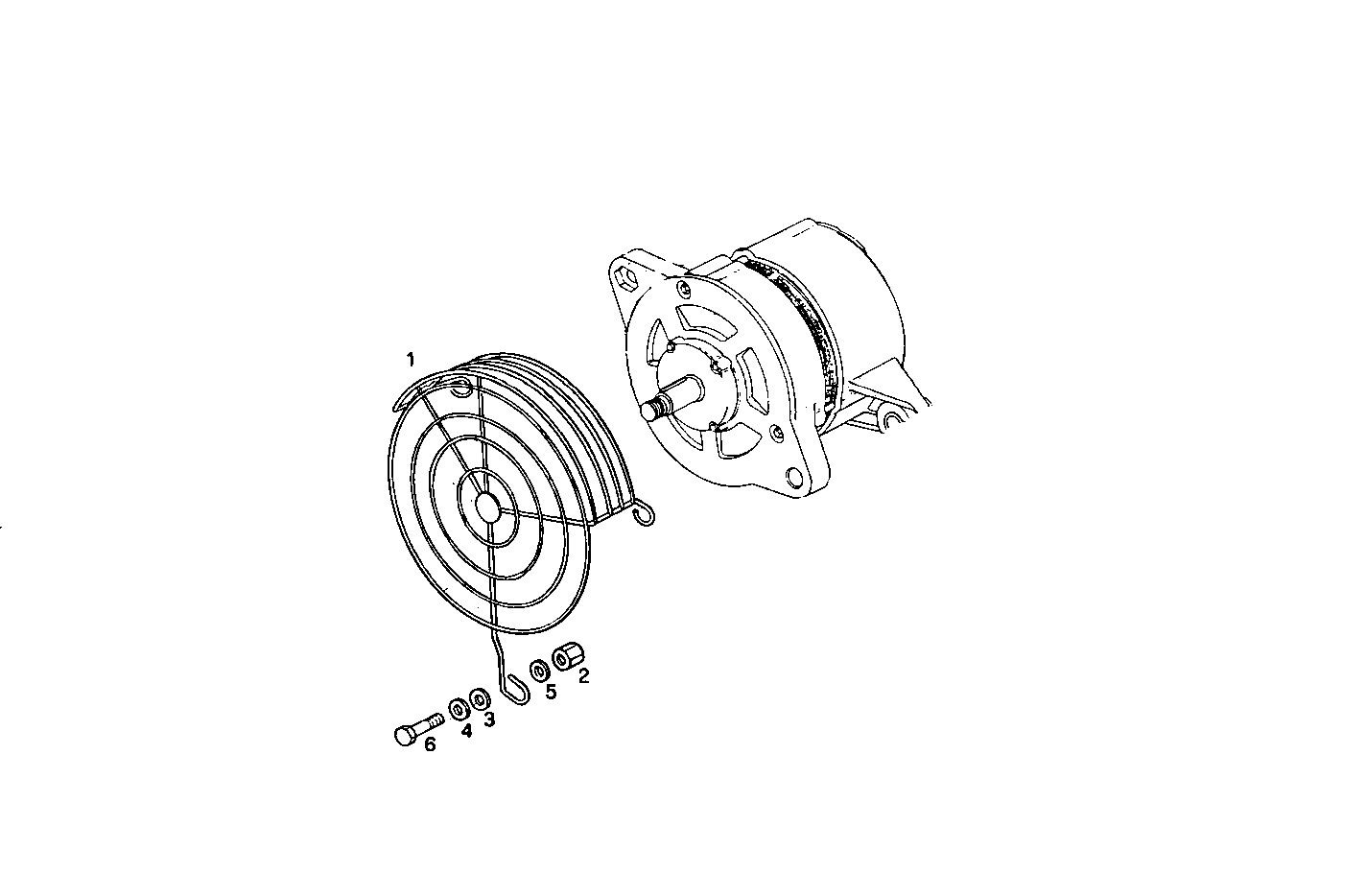

A48000002 GUARD - for alternator

Iveco/FPT GUARD

Item Part number Description
1 8113839 PROTECTION
2 8005194 SPACING BAR
3 12646901 WASHER Ø12X28 MM
4 17090174 SPRING WASHER Ø10X20 MM
5 12626201 WASHER Ø10,25X3 MM
6 15004021 HEXAGON BOLT M10X1,25X25 MM
