8361SRE10.00A004

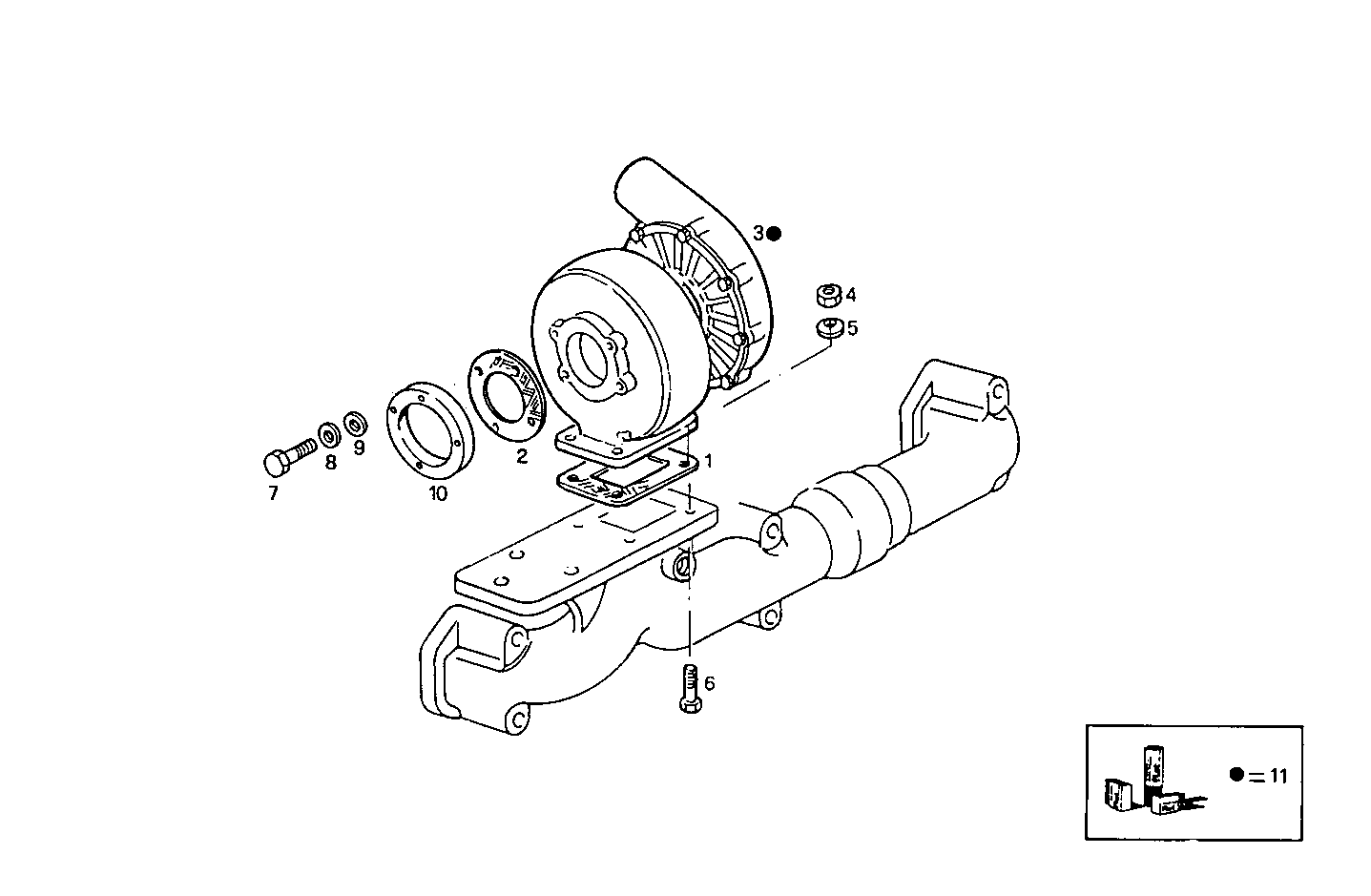

2400.121 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4632123 | GASKET |
| 2 | 4729026 | GASKET |
| 3 | 8108015 | TURBOCHARGER ASSY HOLSET |
| 4 | 17038221 | HEXAGON NUT M10 |
| 5 | 17095004 | WASHER Ø10X18X2 MM |
| 6 | 11307021 | HEXAGON BOLT M10X40 MM |
| 7 | 16605734 | HEXAGON BOLT M8X30 MM |
| 8 | 10730321 | WASHER Ø8,15 MM |
| 9 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 10 | 8113659 | FLANGE |
| 11 | 8090147 | KIT-TURBOCHARGER HOLSET |
