8361SRE10.00A004

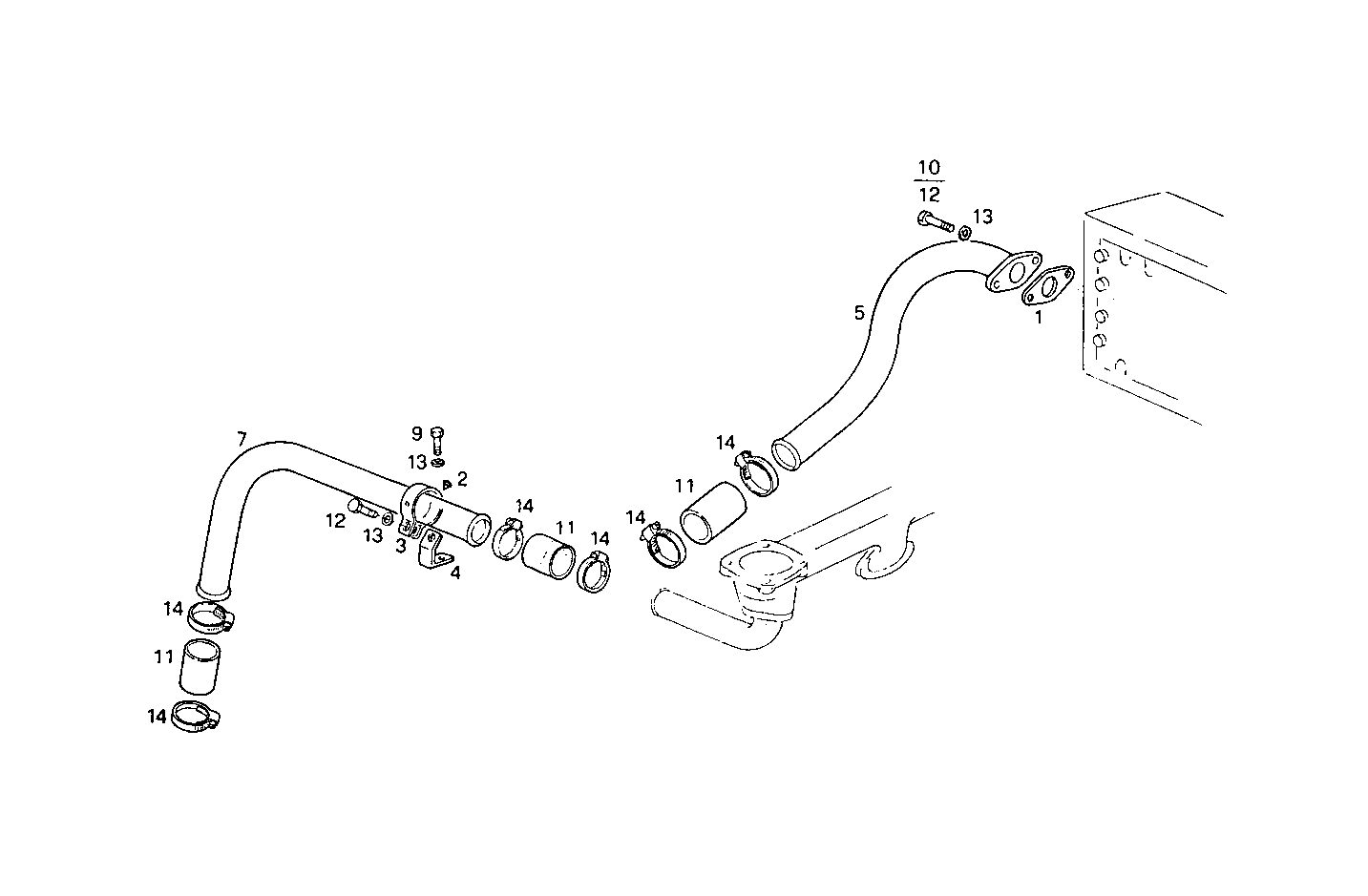

3210.157/01 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98412227 | GASKET |
| 2 | 4565875 | RUBBER PAD |
| 3 | 4640545 | CLIP |
| 4 | 4930322 | RETAINER |
| 5 | 8105971 | WATER PIPE |
| 7 | 8105976 | WATER PIPE |
| 9 | 16043321 | HEXAGON BOLT M8X18 MM |
| 10 | 16606124 | HEXAGON BOLT M8X50 MM |
| 11 | 17743887 | RUBBER SLEEVE |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
| 13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 14 | 98490783 | CLIP Ø55-65 MM |
