8361SRE10.00A004

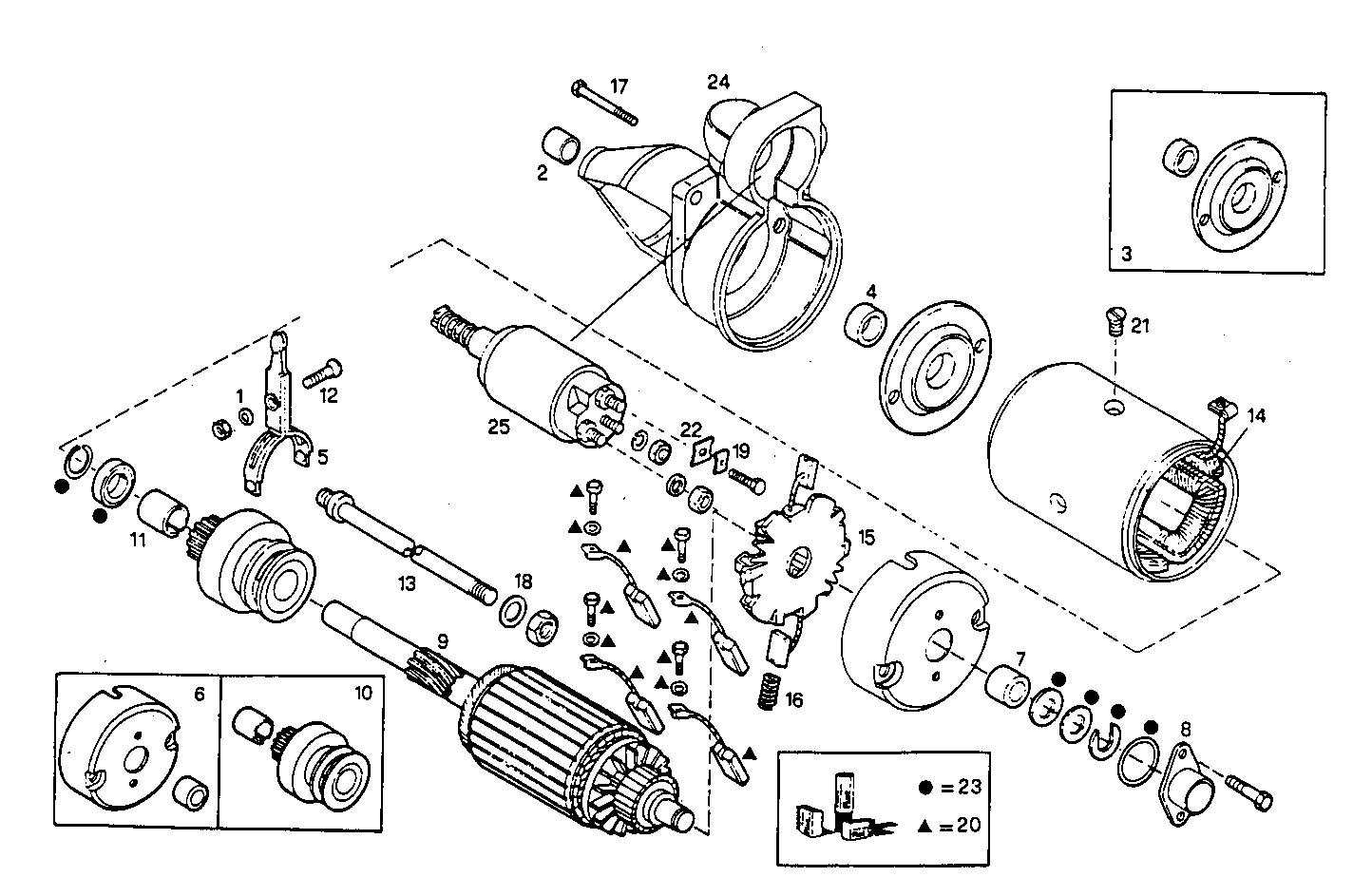

T1001002 STARTER MOTOR - (components)

Iveco/FPT STARTER MOTOR

Item Part number Description
1 1107238 WASHER
2 1289961 BUSH
3 1308810 STARTER SUPPORT ASSY
4 1307038 BUSH ASSY
5 1307218 START.COUPL.LEVER
6 9983636 STARTER SUPPORT ASSY
7 1308147 BUSH
8 1308151 COVER
9 1308809 STARTER ARMATURE
10 42489248 COUPLER
11 1308811 BUSH
12 1308812 SCREW
13 1308813 TIE ROD
14 1308814 STARTER WINDING
15 1308817 BRUSH HOLDER
16 1308848 SPRING
17 2985048 SCREW
18 2985194 WASHER
19 9918358 STOP PLATE
20 9918362 KIT-STARTER
21 9983638 SCREW
22 9927935 PLATE
23 42487786 KIT-STARTER
24 42489246 SUPPORT
25 42492165 STARTER SOLENOID
