8361SRE10.00A800

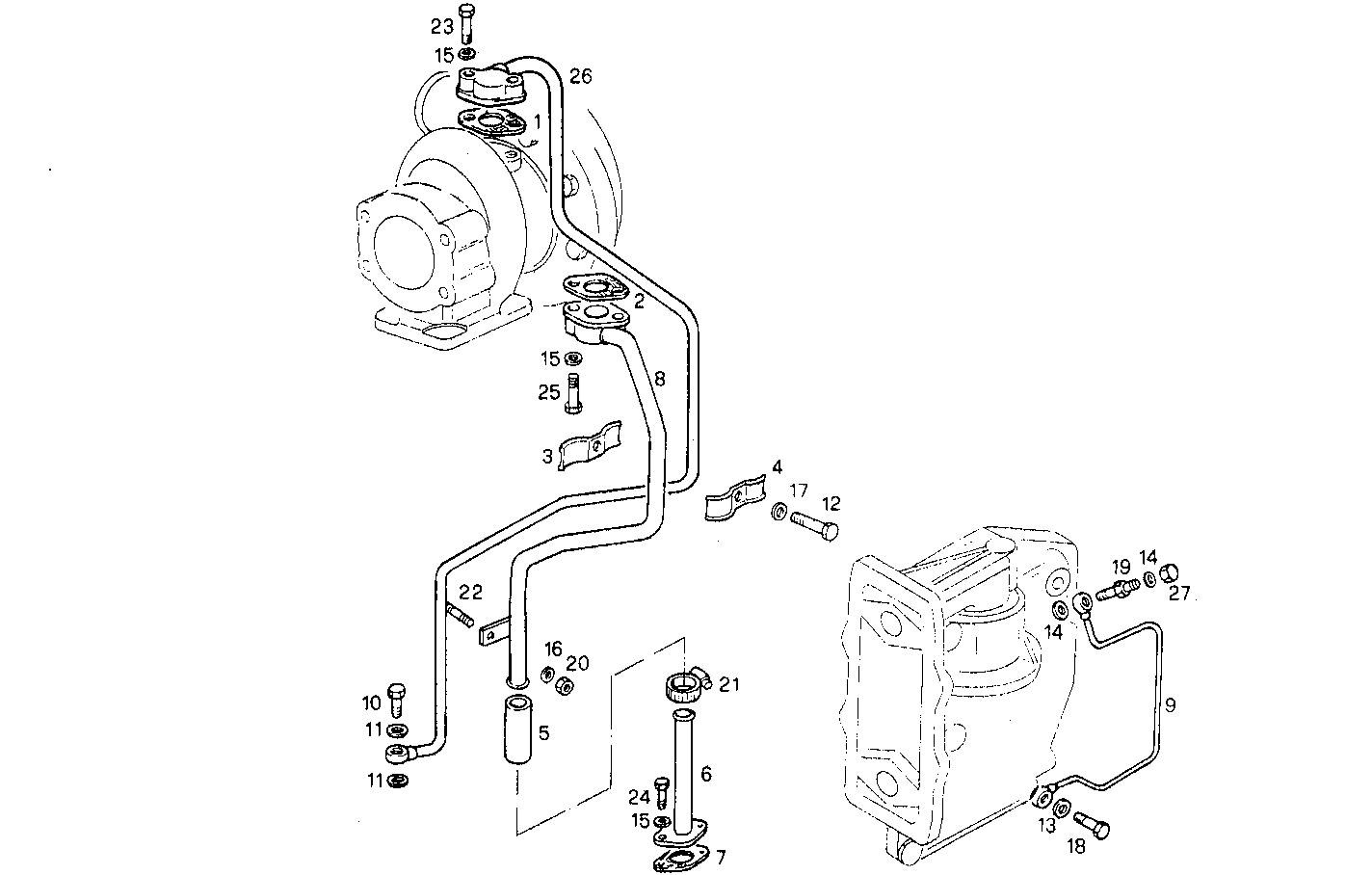

3010.055 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 98415922 FLAT ENGINE GASKET
2 98415923 FLAT ENGINE GASKET
3 4754649 RETAINER
4 4754651 RETAINER
5 98420478 RUBBER SLEEVE
6 98426429 OIL LINE
7 98412509 FLAT ENGINE GASKET
8 98426492 OIL LINE
9 8014822 OIL LINE
10 4864084 BANJO BOLT M16X1,5
11 4858609 WASHER Ø16X22 MM SP=1,5 MM
12 10902321 HEXAGON BOLT M6X18 MM (8.8)
13 4858606 GASKET Ø10X14X1 MM
14 4858605 WASHER Ø8X12 MM
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 17090174 SPRING WASHER Ø10X20 MM
17 17088474 WASHER Ø6X12 MM
18 4864080 SCREW CONNECTOR M10X1,25
19 11901611 PIPE SOCKET
20 17038221 HEXAGON NUT M10
21 17764692 CLIP Ø25/40 MM
22 13453021 STUD M10X25X16
23 16605824 HEXAGON BOLT M8X35 MM
24 16605624 HEXAGON BOLT M8X25 MM (8.8)
25 16605734 HEXAGON BOLT M8X30 MM
26 8010749 OIL LINE
27 11902017 LOCK PLUG M8
