8361SRE10.00A801

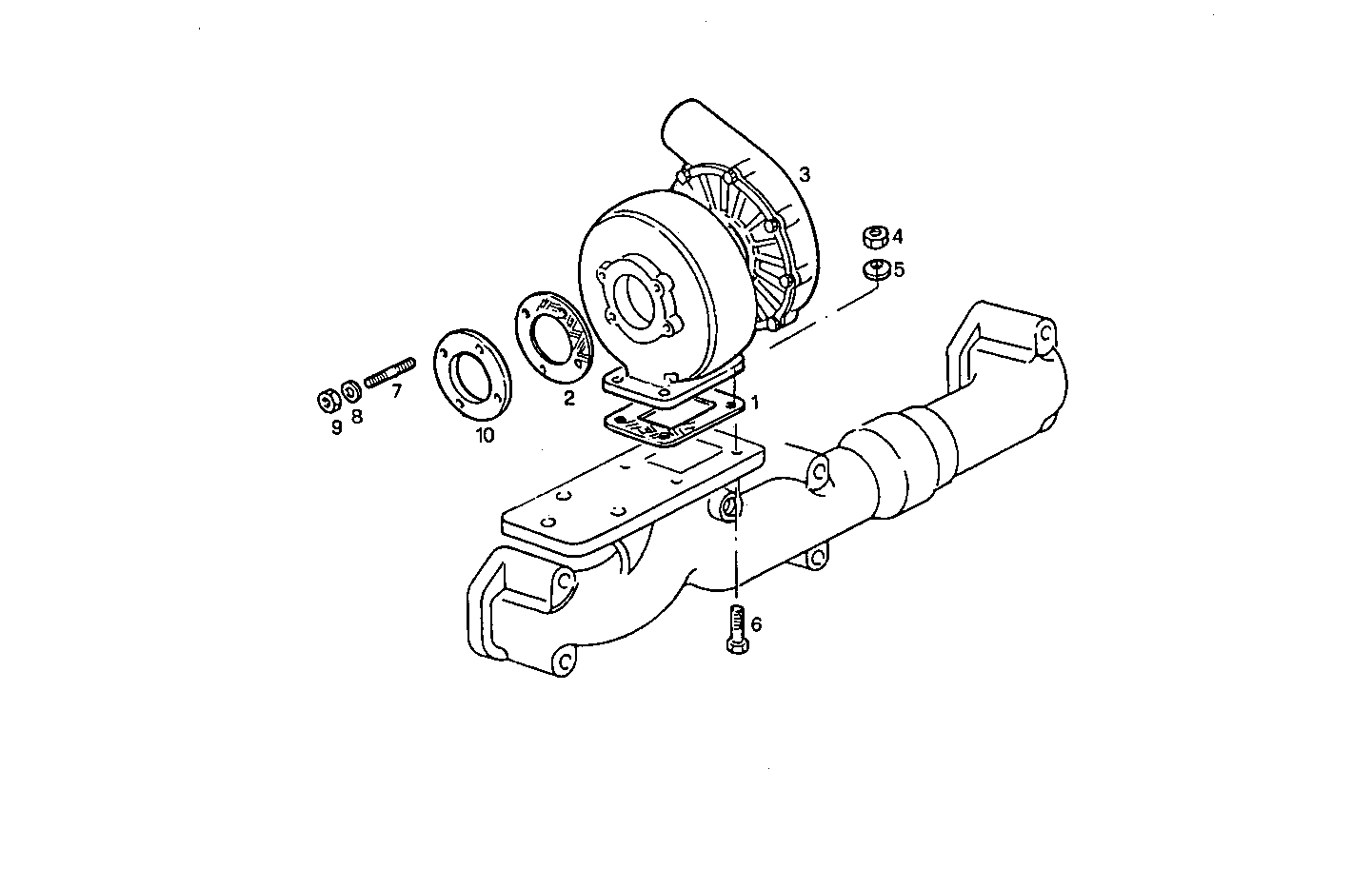

2400.119 TURBOCHARGER
Item | Part number | Description |
---|---|---|
1 | 4632123 | GASKET |
2 | 4729026 | GASKET |
3 | 8109562 | TURBOCHARGER ASSY HOLSET |
4 | 17038221 | HEXAGON NUT M10 |
5 | 12638601 | WASHER Ø10X18 MM |
6 | 11307031 | HEXAGON BOLT M10X40 MM |
7 | 16729424 | STUD M8X1,25X25 |
8 | 16666504 | WASHER Ø8X16X1,6 MM |
9 | 17037931 | HEXAGON NUT M8X1,25 |
10 | 8113659 | FLANGE |
