8361SRE11.00

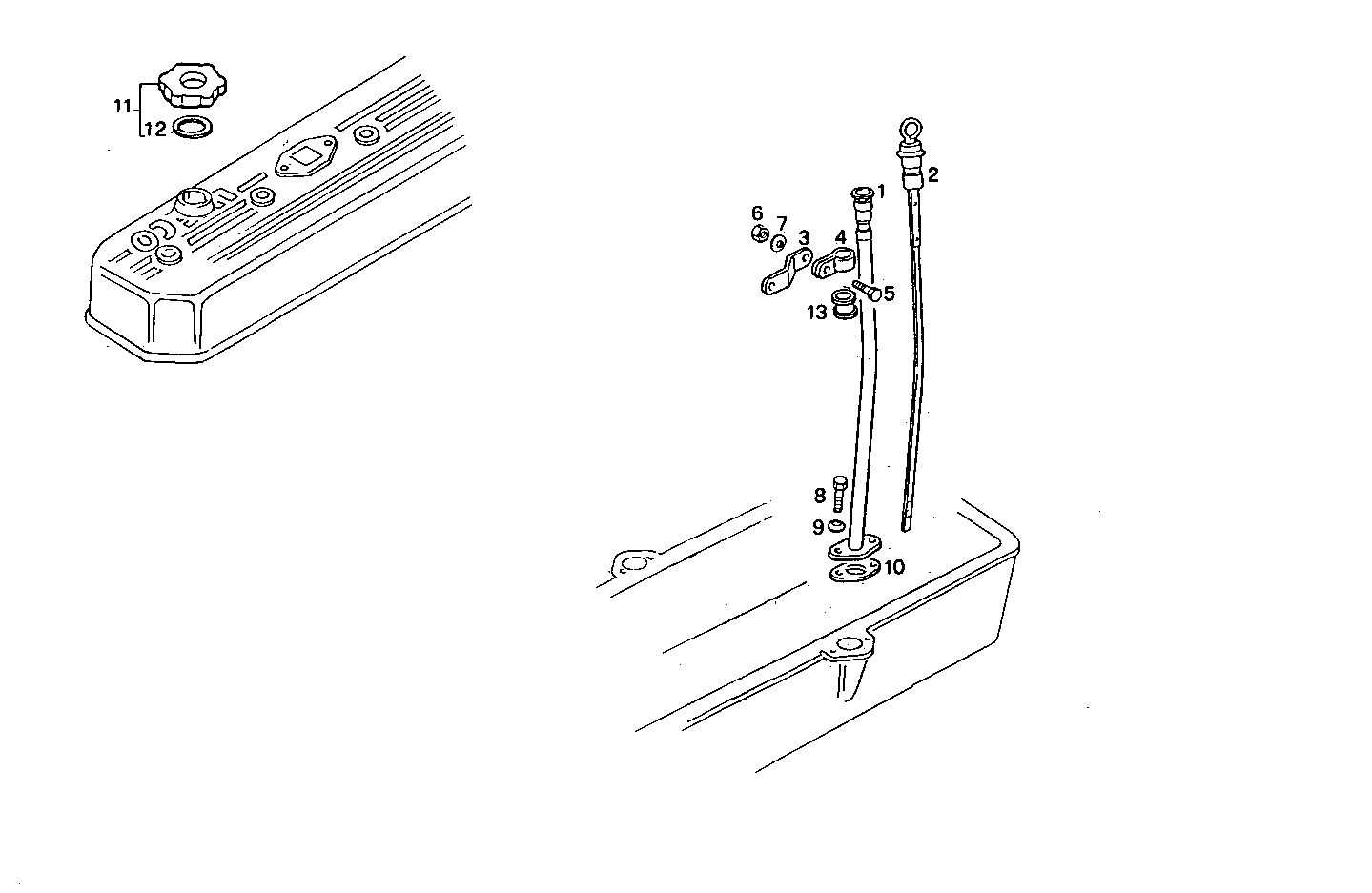

2710.028 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 8007593 | ROD GUIDE |
2 | 8009992 | OIL DIPSTICK |
3 | 8113297 | RETAINER |
4 | 4763804 | FASTENING BRACKET |
5 | 16605524 | HEXAGON BOLT M8X20 MM |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
8 | 16605734 | HEXAGON BOLT M8X30 MM |
9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
10 | 98412099 | GASKET |
11 | 98418980 | OIL FILLER PLUG ASSY |
12 | 98418978 | GASKET |
13 | 4757122 | RUBBER PAD |
