8361SRE11.00

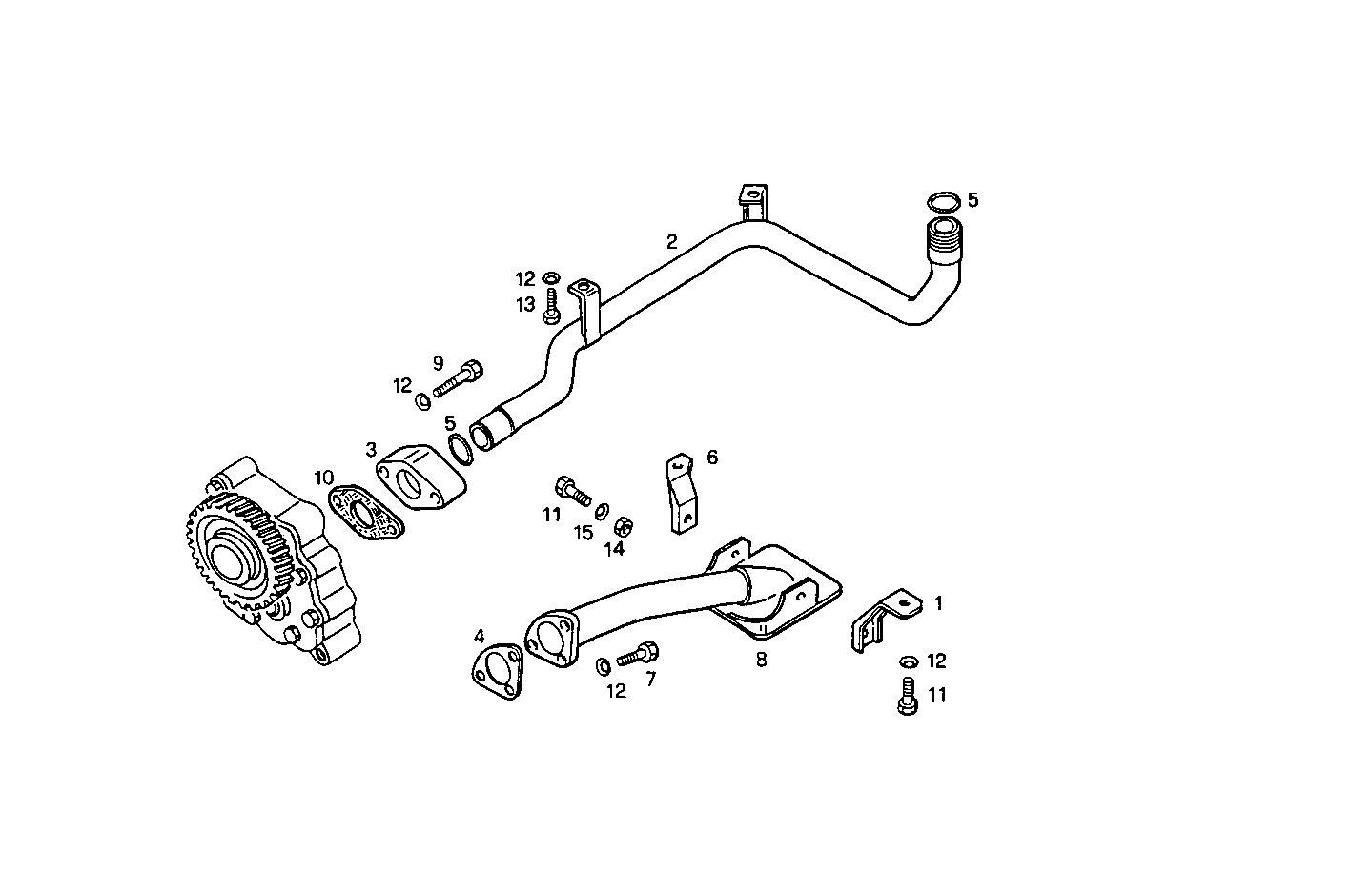

3010.071/01 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98424682 | RETAINER |
| 2 | 4853440 | OIL LINE |
| 3 | 4692711 | BULKHEAD STR.COUPL |
| 4 | 4851438 | FLAT ENGINE GASKET |
| 5 | 17282081 | O-RING Ø20,2 MM SP=2,62 MM |
| 6 | 98424683 | RETAINER |
| 7 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 8 | 4735487 | SUCTION STRAINER |
| 9 | 16605924 | SCREW M8X40 MM |
| 10 | 98412165 | FLAT ENGINE GASKET |
| 11 | 16605524 | HEXAGON BOLT M8X20 MM |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 16043324 | HEXAGON BOLT M8X18 MM |
| 14 | 17157021 | NUT M8X1,25 |
| 15 | 17094914 | WASHER 8x16 |
