8361SRE11.00

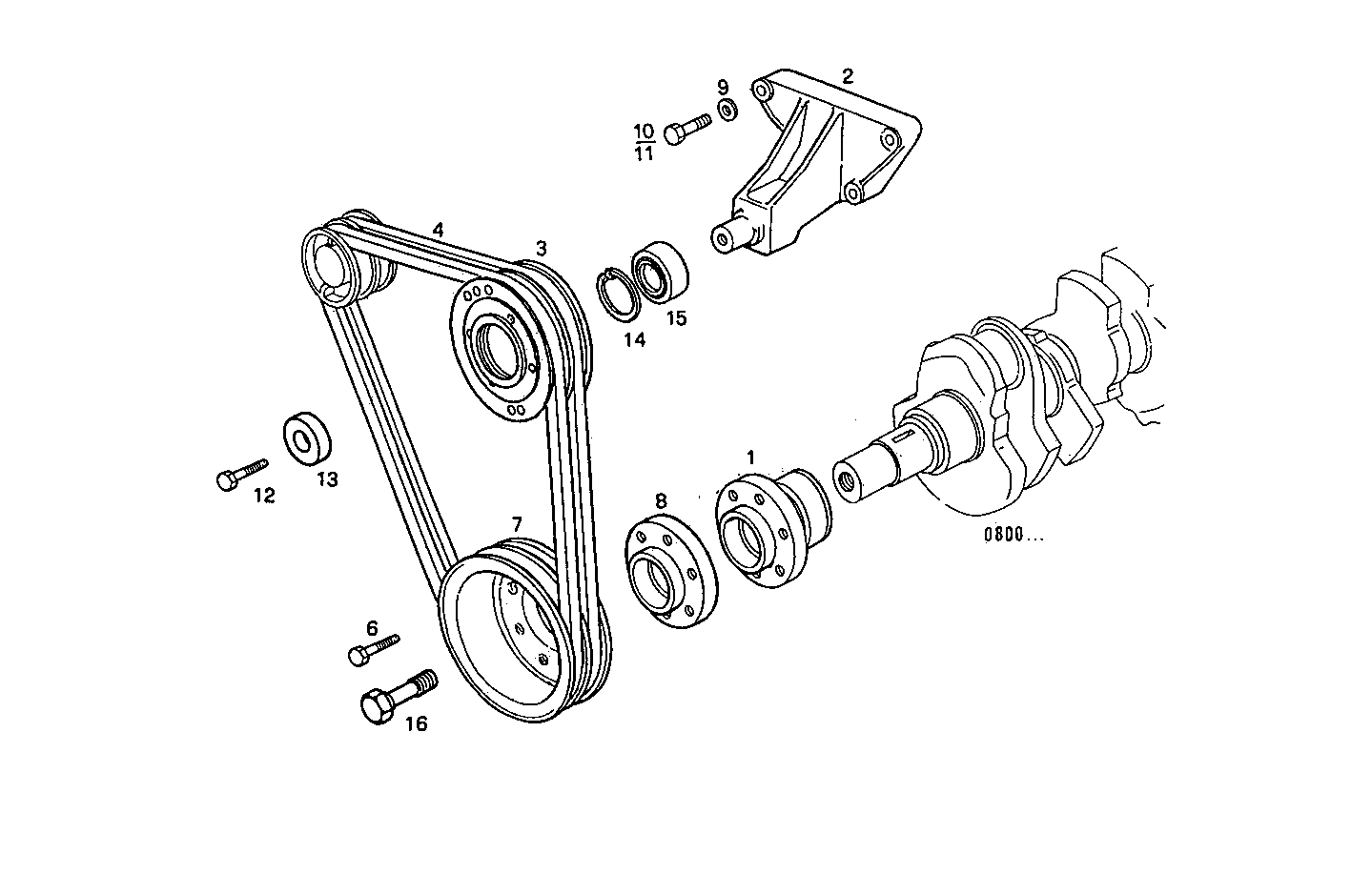

3240.089 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4852786 | HUB |
| 2 | 98470565 | SUPPORT |
| 3 | 98470573 | PULLEY ASSY |
| 4 | 98429205 | SET OF V-BELTS KIT |
| 6 | 16324134 | HEXAGON BOLT M10X60 MM |
| 7 | 98415051 | CRANKSHAFT PULLEY |
| 8 | 98424646 | SPACING BAR |
| 9 | 17090174 | SPRING WASHER Ø10X20 MM |
| 10 | 11343721 | HEXAGON BOLT M10X65 MM |
| 11 | 15971821 | SCREW M10X1,25X100 |
| 12 | 16678434 | HEXAGON BOLT M12X60 MM |
| 13 | 98427590 | WASHER |
| 14 | 16874776 | CIRCLIP Ø85,5 MM [from 10-92] |
| 15 | 98427607 | ENGINE BEARINGS |
| 16 | 99435038 | SCREW M27X2X148 MM |
