8361SRE11.00

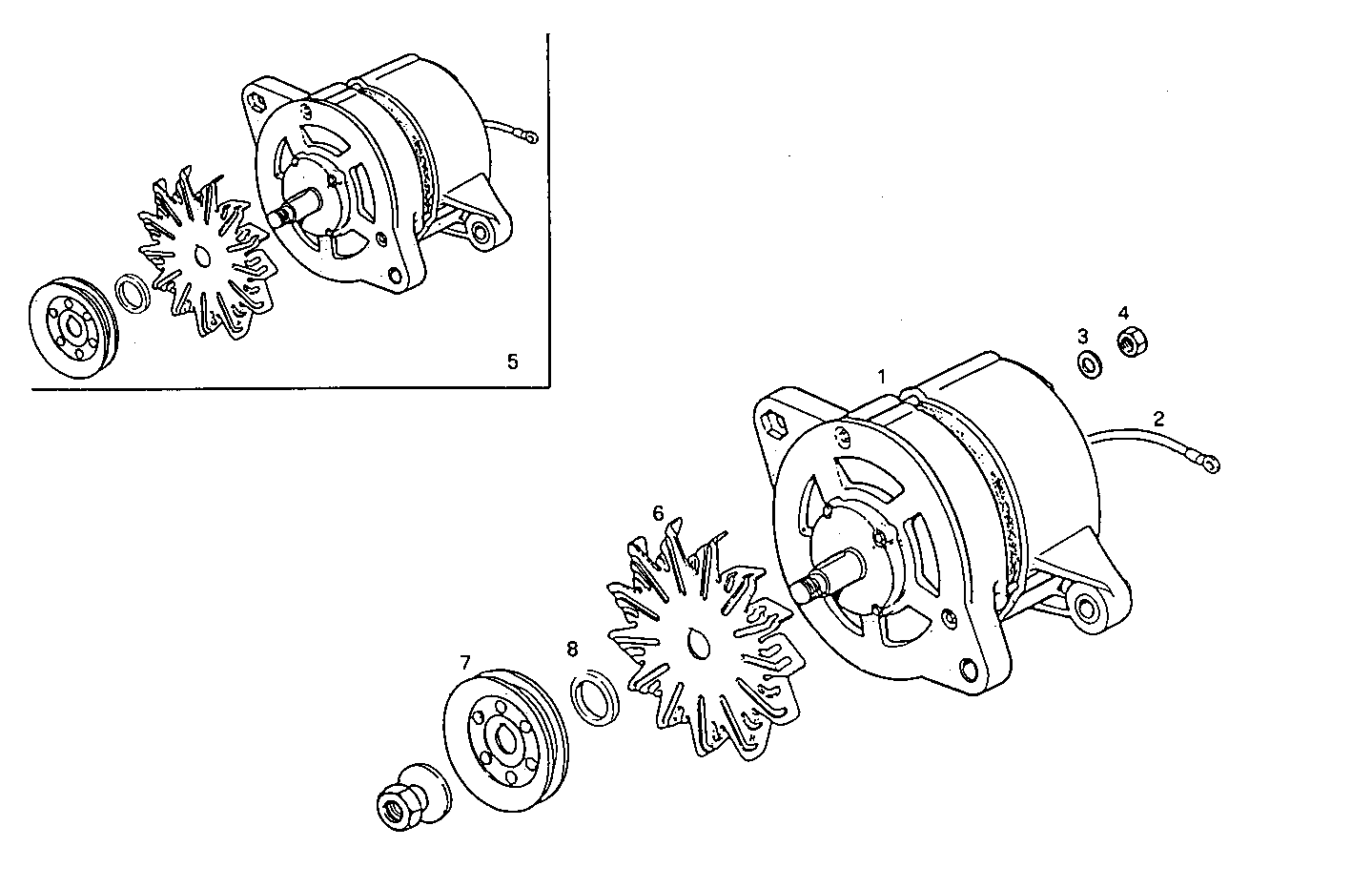

4000.075 GENERATOR
Item | Part number | Description |
---|---|---|
1 | 4808519 | ALTERNATOR MARELLI - 24V [from 26031986] |
2 | 8105654 | WIRE/CABLE |
3 | 17088474 | WASHER Ø6X12 MM |
4 | 17037821 | HEXAGON NUT M6X1 |
5 | 8107965 | ALTERNATOR ASSY MARELLI - 24V |
6 | 4727026 | PROTECTION |
7 | 4808603 | GENERATOR PULLEY |
8 | 4815284 | SPACING BAR |
