8361SRE11.00

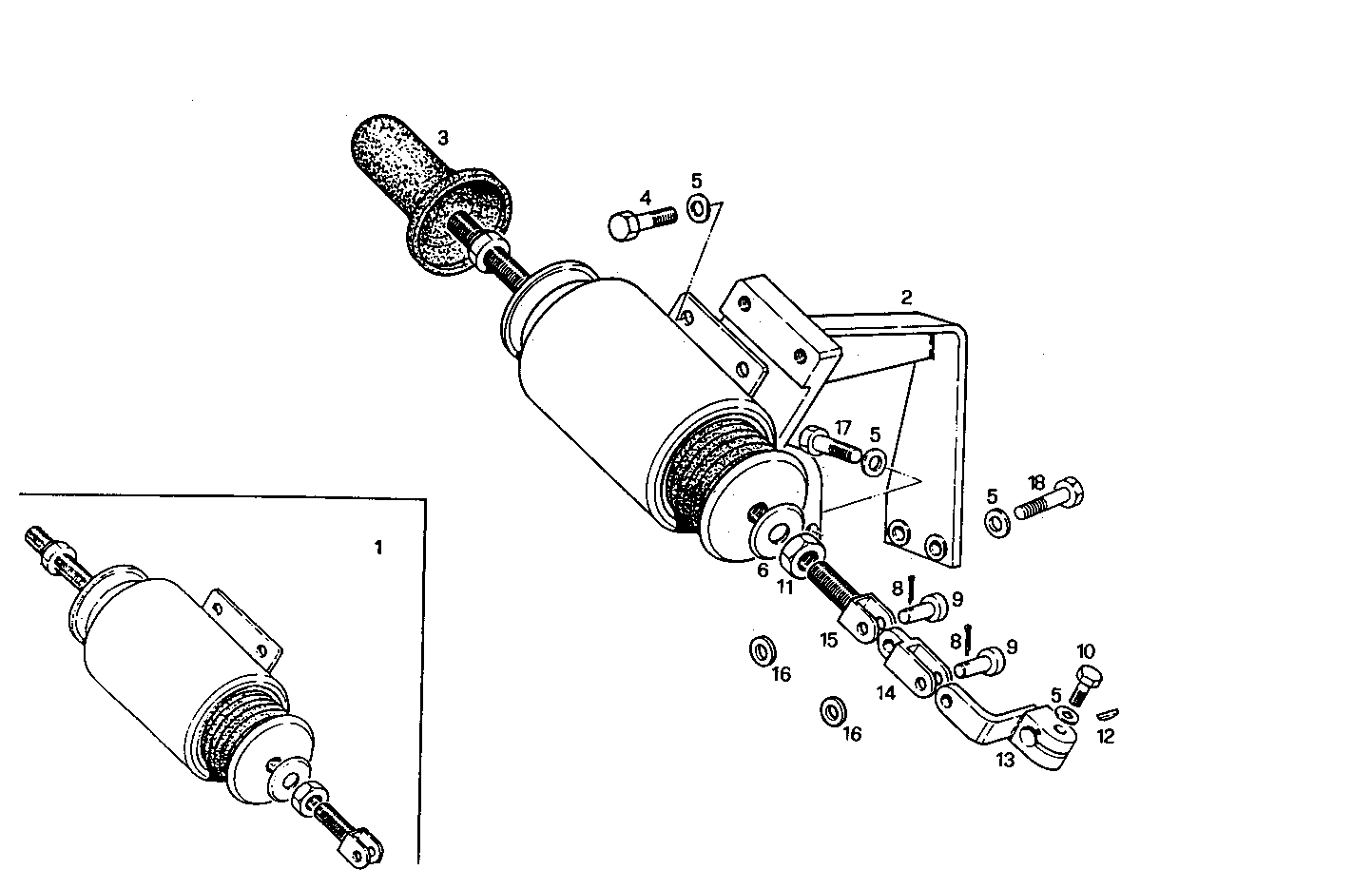

A38440021 STOP SOLENOID - ENERGIZE TO RUN - 24V
Item | Part number | Description |
---|---|---|
1 | 8112462 | SOLENOID ASSY |
2 | 8006296 | SUPPORT |
3 | 8111523 | PROTECTIVE HOOD |
4 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
5 | 17088474 | WASHER Ø6X12 MM |
6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
8 | 16852501 | SPLIT PIN Ø1,6X12 MM |
9 | 17718411 | PIN Ø5 MM |
10 | 10977721 | HEXAGON BOLT M5X14 MM |
11 | 17037931 | HEXAGON NUT M8X1,25 |
12 | 1136607 | KEY |
13 | 8110753 | LEVER |
14 | 8108833 | CLEVIS |
15 | 8110822 | CLEVIS |
16 | 17094504 | WASHER Ø5,3X10 MM |
17 | 16689624 | HEXAGON BOLT M6X40 MM (8.8) |
18 | 16603424 | SCREW M6X10 |
