8361SRE11.00A001

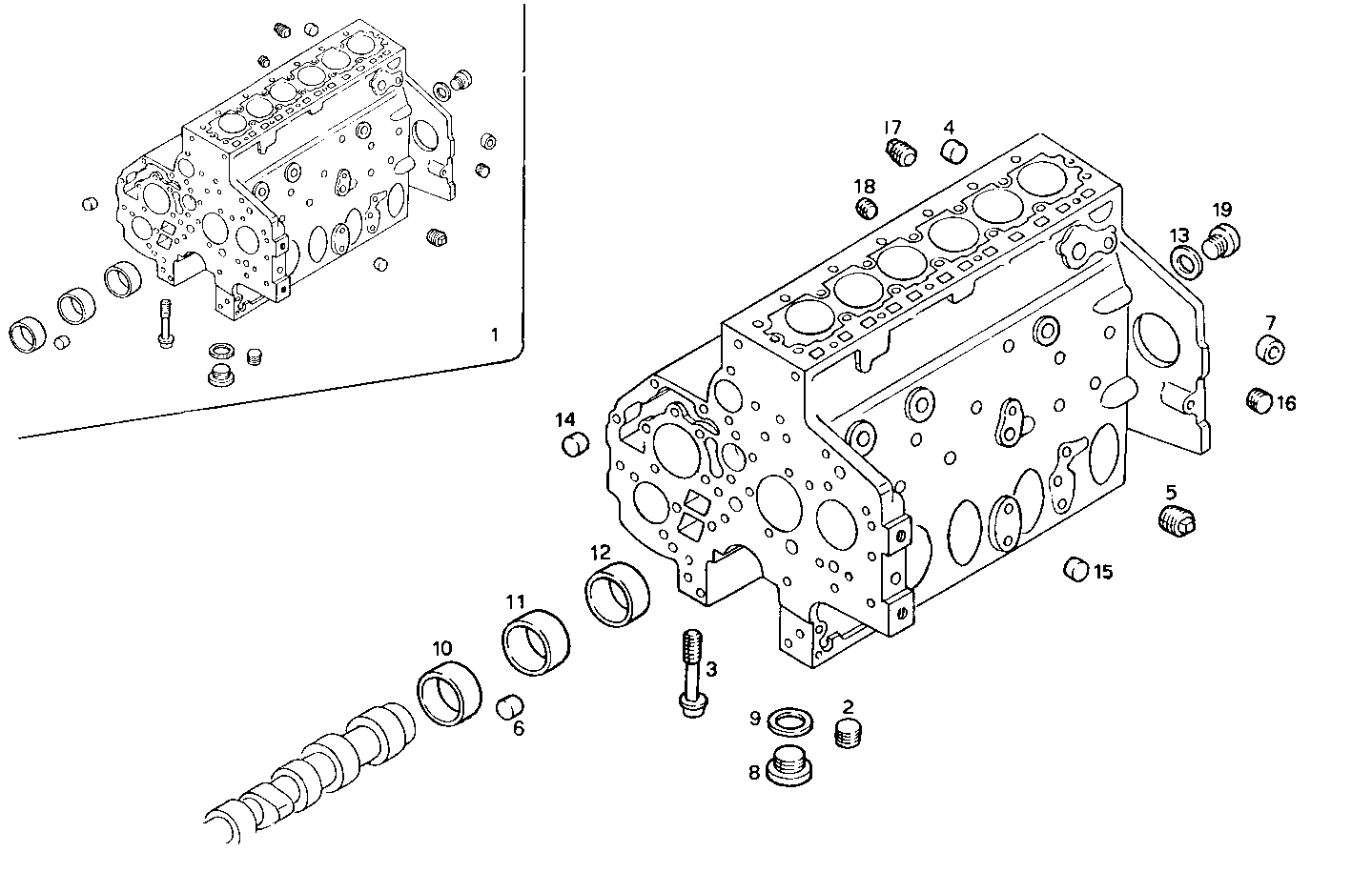

0400.051/01 CRANKCASE
Item | Part number | Description |
---|---|---|
1 | 4860550 | CRANKCASE ASSY |
2 | 4731414 | THREADED PLUG |
3 | 4851814 | SCREW [from ...] |
4 | 16991170 | LOCK PLUG Ø36 MM |
5 | 14323911 | LOCK PLUG M10X1,25 |
6 | 16988401 | LOCK PLUG Ø22 MM |
7 | 16989201 | LOCK PLUG Ø42 MM |
8 | 4665029 | LOCK PLUG M42X1,5 |
9 | 10265460 | SEAL GASKET Ø42X49 MM SP=1,5 MM |
10 | 98471160 | CAMSHAFT BEARING |
11 | 98471161 | CAMSHAFT BEARING |
12 | 98471162 | CAMSHAFT BEARING |
13 | 98450424 | WASHER |
14 | 16987801 | LOCK PLUG Ø12 MM |
15 | 16988101 | LOCK PLUG Ø16 MM |
16 | 10269501 | LOCK PLUG M14 |
17 | 16996211 | LOCK PLUG M14 |
18 | 14326101 | THREADED PLUG M8X1,25 |
19 | 16993411 | THREADED PLUG M22X1,5 |
