8361SRE11.00A001

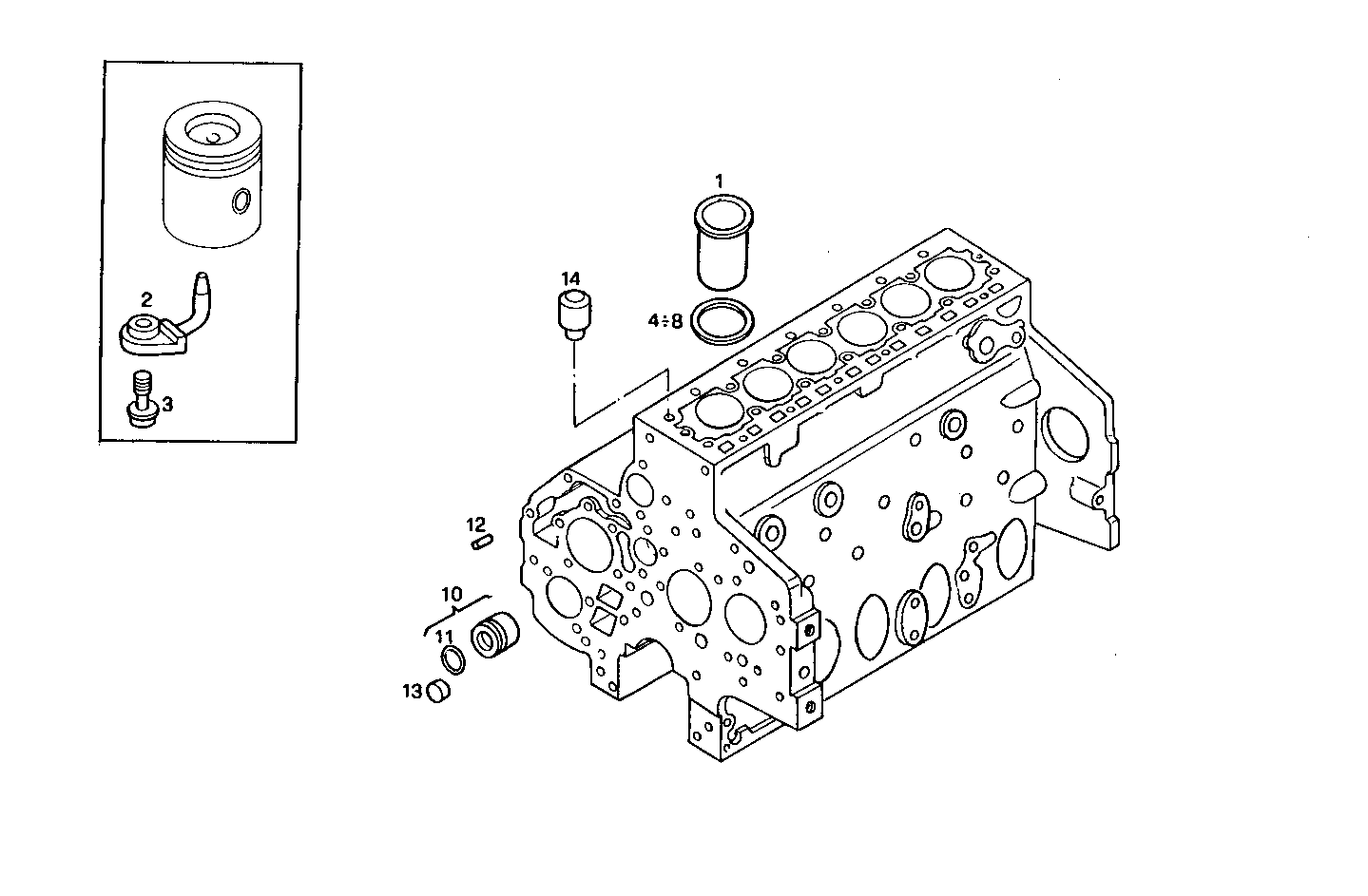

0400.051/02 CRANKCASE
| Item | Part number | Description |
|---|---|---|
| 1 | 98429670 | CYLINDER LINER |
| 2 | 98432725 | OIL NOZZLE |
| 3 | 61315726 | SCREW CONNECTOR |
| 4 | 98435305 | SPAC.RING CYL.LIN. SP=3,18-3,19 MM |
| 5 | 98435306 | SPAC.RING CYL.LIN. SP=3,19-3,2 MM |
| 6 | 98435307 | SPAC.RING CYL.LIN. SP=3,2-3,21 MM |
| 7 | 98435308 | SPAC.RING CYL.LIN. SP=3,21-3,22 MM |
| 8 | 98435309 | SPAC.RING CYL.LIN. SP=3,22-3,23 MM |
| 10 | 4853427 | VALVE ASSY |
| 11 | 17282881 | O-RING 2,62x32,99 |
| 12 | 4708557 | DOWEL PIN |
| 13 | 17275610 | DOWEL PIN |
| 14 | 98425922 | DOWEL PIN |
