8361SRE11.00A001

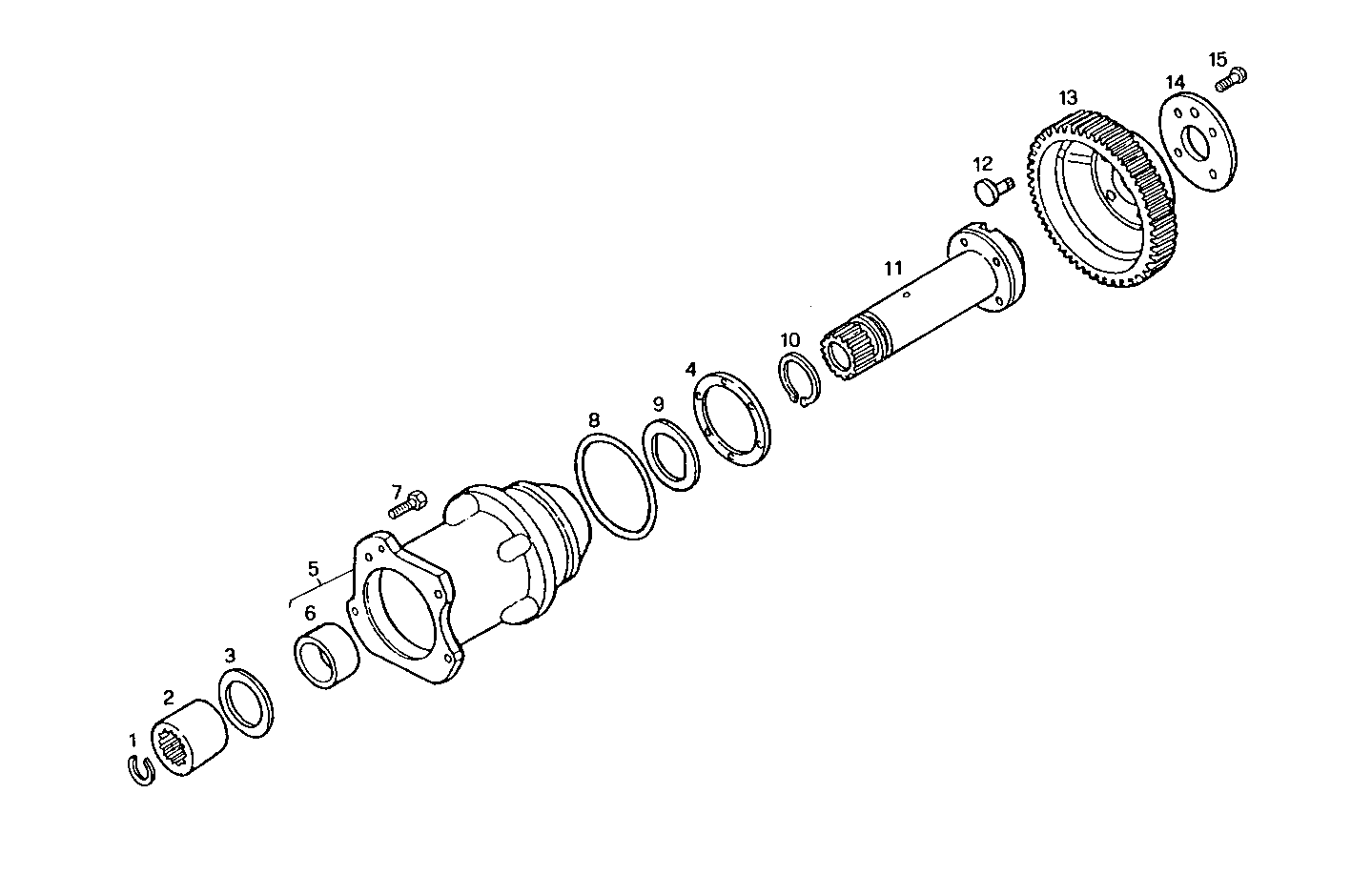

1410.045 INJECTION PUMP DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 17085876 | CIRCLIP Ø42 MM |
| 2 | 4852814 | INJECT.PUMP BUSH |
| 3 | 98415571 | WASHER |
| 4 | 98488133 | FLAT ENGINE GASKET Ø105X142 MM [from 18308] |
| 5 | 98415428 | SUPPORT ASSY |
| 6 | 4775901 | BUSH |
| 7 | 16321624 | HEXAGON BOLT M8X55 MM |
| 8 | 17285781 | O-RING Ø94,92 MM SP=2,62 MM |
| 9 | 4667498 | WASHER |
| 10 | 4708213 | CIRCLIP |
| 11 | 4853228 | INJECT.PUMP SPIND |
| 12 | 4852809 | RETAINING CAM |
| 13 | 98445184 | PINION |
| 14 | 4852808 | RING |
| 15 | 14233621 | LOCKING SCREW M10X1,25X30 MM |
