8361SRE11.00A001

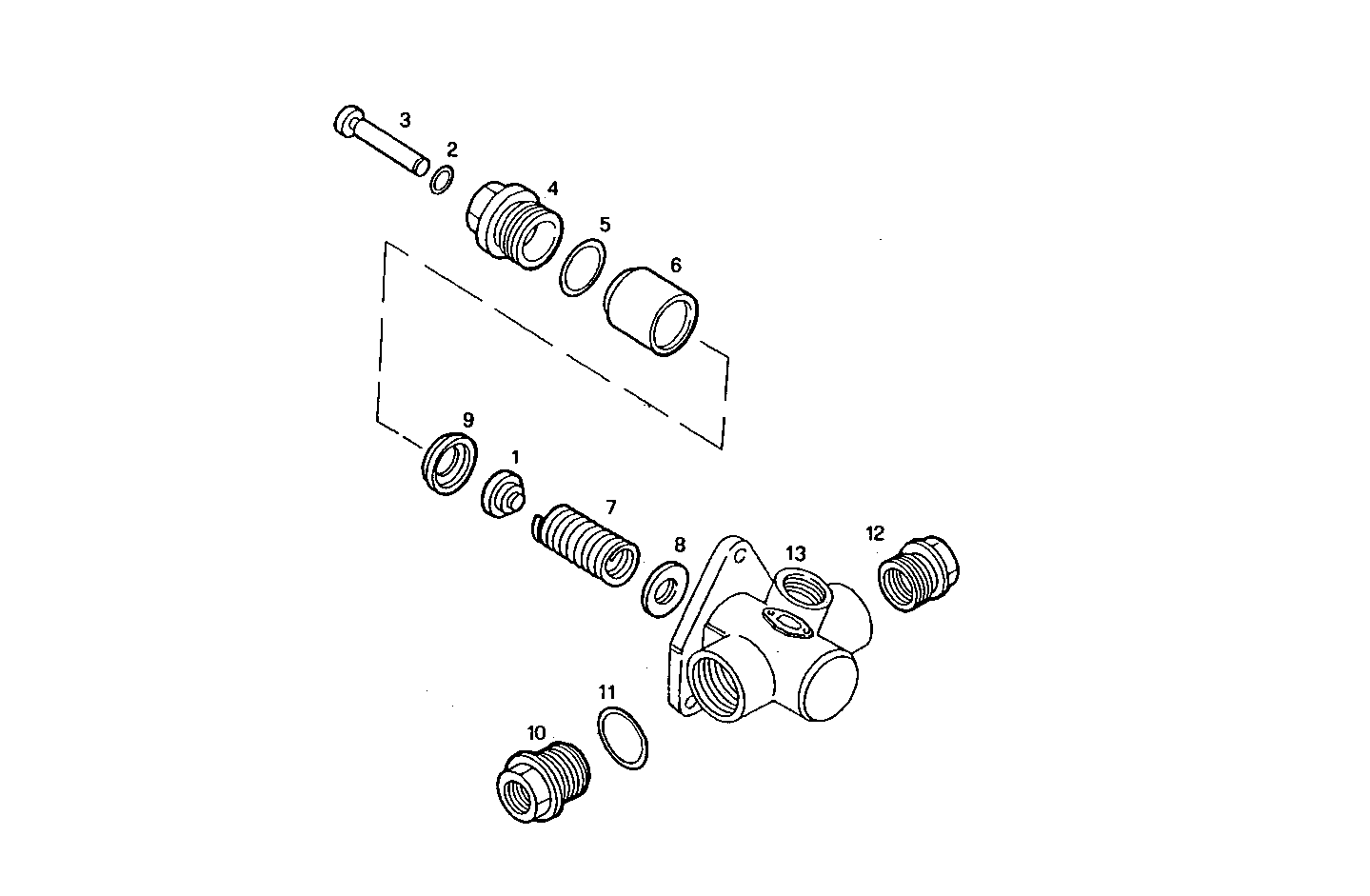

2040.030 FUEL PUMP (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 42522534 | VALVE |
| 2 | 79070369 | O-RING |
| 3 | 93160441 | VALVE |
| 4 | 93156914 | VALVE HOUSING |
| 5 | 93156915 | O-RING |
| 6 | 93156916 | PUMP PLUNGER |
| 7 | 93156917 | SPRING |
| 8 | 93156918 | CAP SP=0,5 MM |
| 9 | 93156919 | CAP |
| 10 | 93156921 | THREADED UNION |
| 11 | 93156922 | O-RING |
| 12 | 93157238 | THREADED UNION |
| 13 | 8018467 | FUEL PUMP |
