8361SRE11.00A001

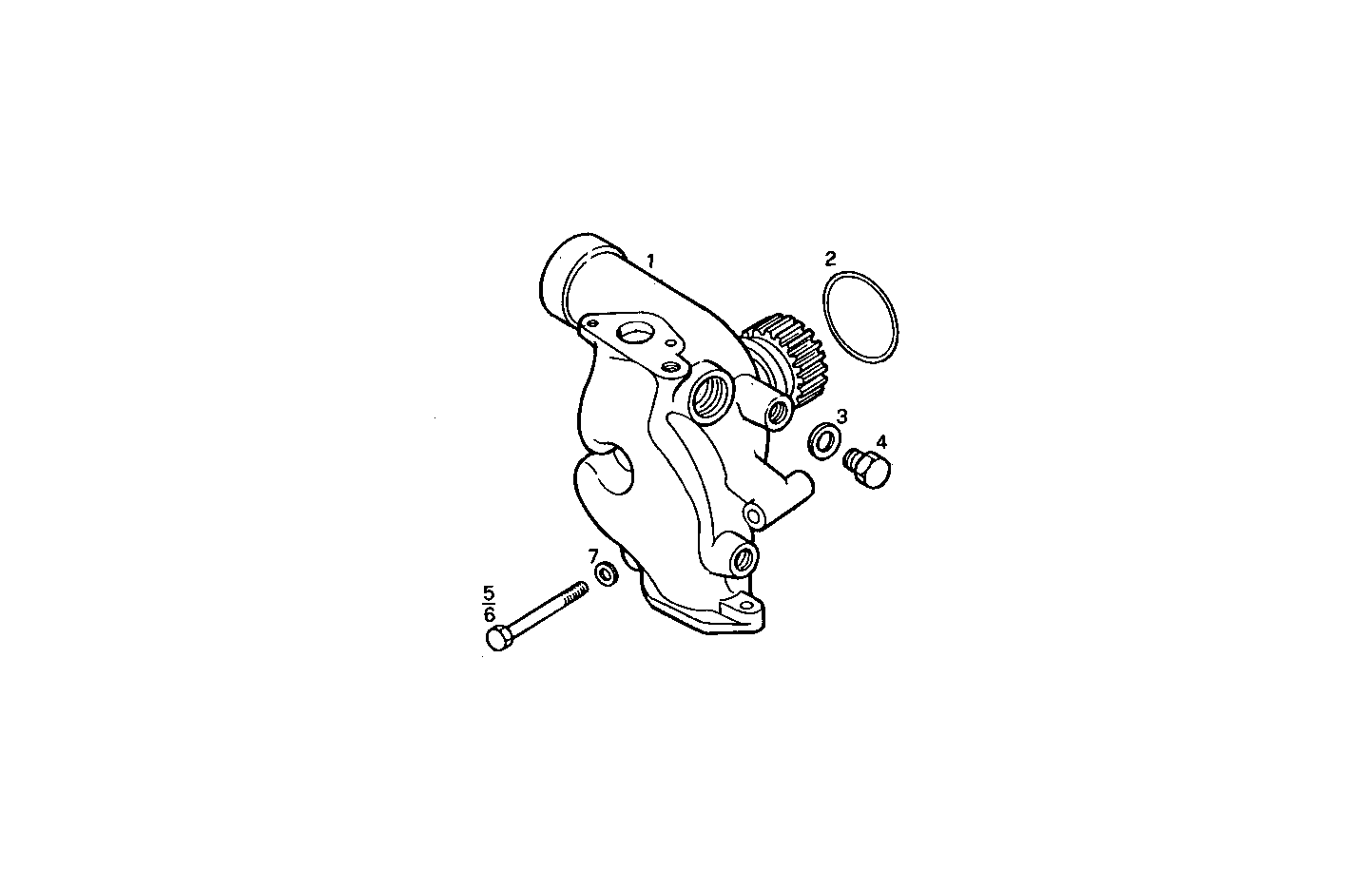

3200.039 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500301665 | WATER PUMP ASSY |
| 2 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
| 3 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 4 | 16992440 | THREADED PLUG M16X1,5 |
| 5 | 15971621 | HEXAGON BOLT M10X1,25X90 MM |
| 6 | 15972821 | HEXAGON BOLT M10X150 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
