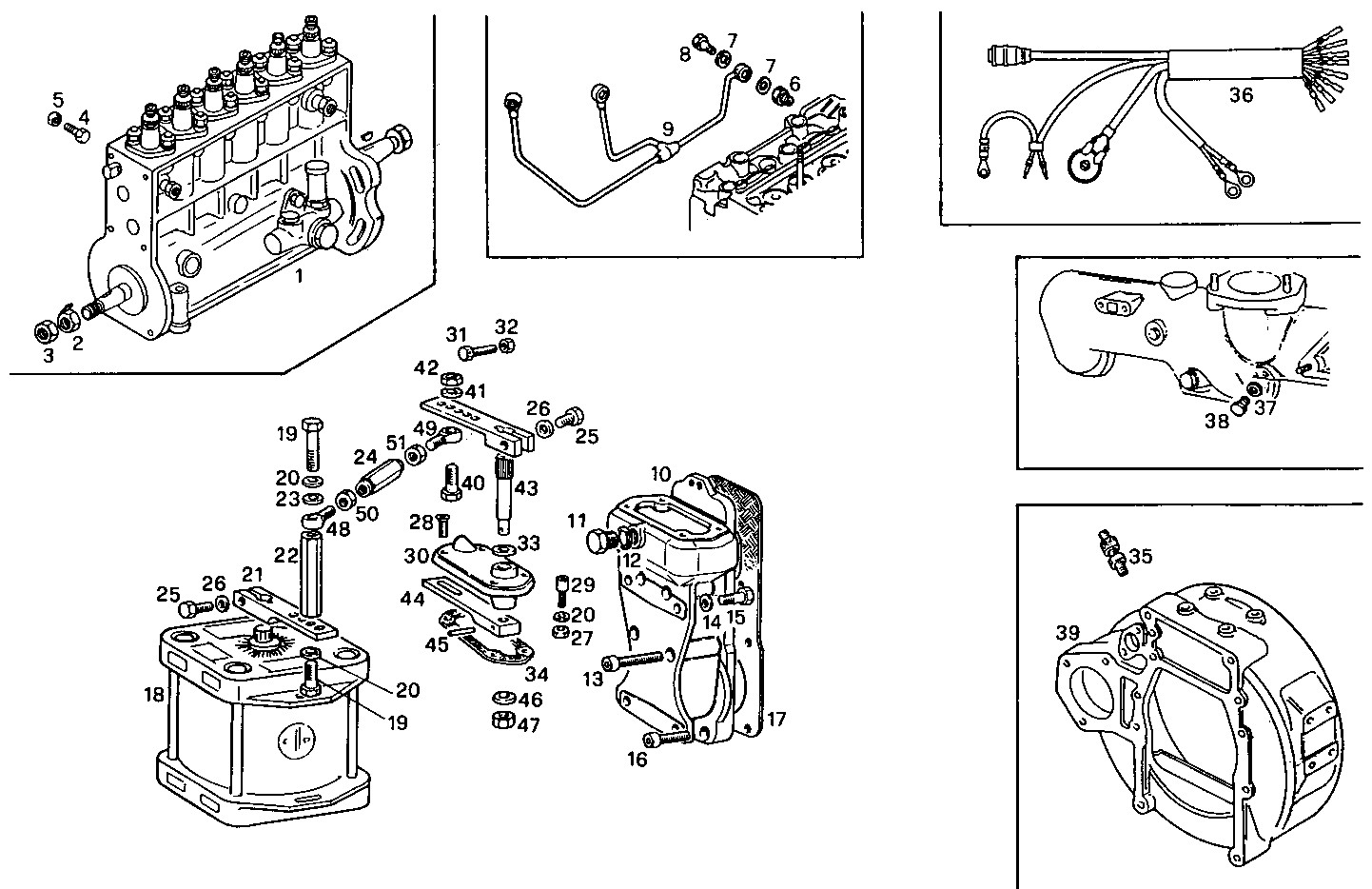

| Item |
Part number |
Description |
|
1 |
775634 |
INLINE INJECT.PUMP ASSY |
|
2 |
8108716 |
NUT |
|
3 |
10717311 |
NUT M12 |
|
4 |
10374811 |
CYLIND-HEAD SCREW M4X10 MM |
|
5 |
12574011 |
NUT M4 |
|
6 |
4750513 |
PIPE SOCKET [up to ...] |
|
7 |
10298360 |
SEAL GASKET Ø10X16 MM SP=1 MM |
|
8 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
9 |
8010134 |
OIL LINE |
|
10 |
8007450 |
TIMINGGEAR HOUSIN |
|
11 |
10300711 |
LOCK PLUG M16 |
|
12 |
10278650 |
GASKET Ø16X22X1 MM |
|
13 |
14309221 |
SCREW M6X65 |
|
14 |
11197771 |
SPRING WASHER Ø6X12 MM SP=1,2 MM |
|
15 |
4934404 |
SCREW |
|
16 |
16689177 |
SOCKET-HEAD SCREW M6X16 MM |
|
17 |
8015485 |
GASKET |
|
18 |
8107492 |
INJECTION CONTROL ASSY |
|
19 |
8016470 |
SCREW M5 |
|
20 |
17094504 |
WASHER Ø5,3X10 MM |
|
21 |
8108603 |
LEVER |
|
22 |
8108656 |
SPACING BAR |
|
23 |
17094714 |
WASHER Ø6,4X12 MM |
|
24 |
8016413 |
TIE ROD M6X1 [up to 06-95] |
|
25 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
26 |
17088474 |
WASHER Ø6X12 MM |
|
27 |
17152621 |
NUT M5X0,8 |
|
28 |
8109360 |
SCREW M5X12 |
|
29 |
8108604 |
PIN |
|
30 |
8007452 |
COVER ASSY |
|
31 |
8108715 |
SCREW |
|
32 |
17037721 |
NUT M5X0,8 |
|
33 |
8109732 |
WASHER |
|
34 |
8108602 |
GASKET |
|
35 |
4933865 |
TRANSMITTER |
|
36 |
8108631 |
ENGINE HARNESS ASSY [up to 06-95] |
|
37 |
10296160 |
SEAL GASKET Ø12X18 MM SP=1 MM |
|
38 |
10300571 |
PLUG M12X1,5 |
|
39 |
8101287 |
FLYWHEEL HOUSING |
|
40 |
16602224 |
HEXAGON BOLT M5X20 MM |
|
41 |
11199279 |
SPRING WASHER Ø5X10X0,5 MM |
|
43 |
8109731 |
PIN |
|
44 |
8108601 |
LEVER |
|
45 |
14158570 |
DOWEL PIN Ø2,3 MM |
|
46 |
8013188 |
WASHER |
|
47 |
16979331 |
HEXAGON NUT M6X1 |
|
48 |
8016588 |
TIE ROD LEFT [up to 06-95] |
|
49 |
8016587 |
TIE ROD RIGHT [up to 06-95] |
|
50 |
10789640 |
NUT M6 - LEFT [up to 06-95] |
|
51 |
15896240 |
NUT M6 - RIGHT [up to 06-95] |
