8361SRI10.01A801

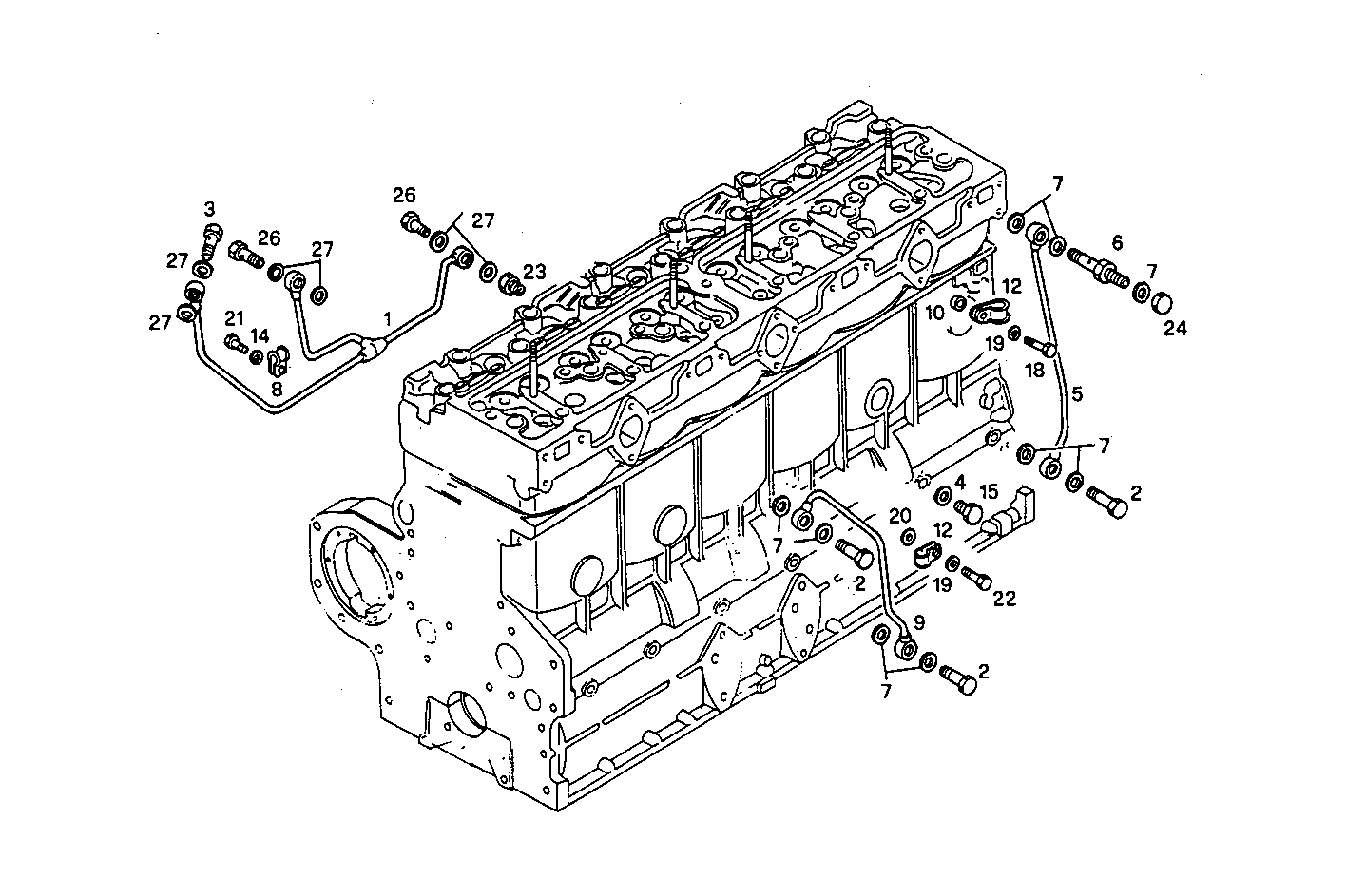

3010.143/01 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 98430603 OIL LINE
2 4864080 SCREW CONNECTOR M10X1,25
3 10181714 SCREW CONNECTOR
4 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
5 98427907 OIL LINE
6 98451916 PIPE SOCKET
7 4858606 GASKET Ø10X14X1 MM
8 10450090 PIPE CLIP Ø8 MM
9 98427899 OIL LINE
10 13606011 SPACER SP=8,5 MM
12 10449890 PIPE CLIP Ø53 MM
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 11903111 LOCK PLUG M10X1,25
18 16625734 HEXAGON BOLT M8X35
19 11193871 WASHER Ø8X16X1,4 MM
20 12646701 WASHER Ø8X20 MM
21 16043124 SCREW M8X14 MM
22 16043321 HEXAGON BOLT M8X18 MM
23 4858852 PIPE SOCKET
24 38827772 REAR SPRING
26 4864082 BANJO BOLT M12X1,5X25 MM
27 4858607 WASHER Ø12X17 MM SP=1,5 MM
