8361SRi11.05

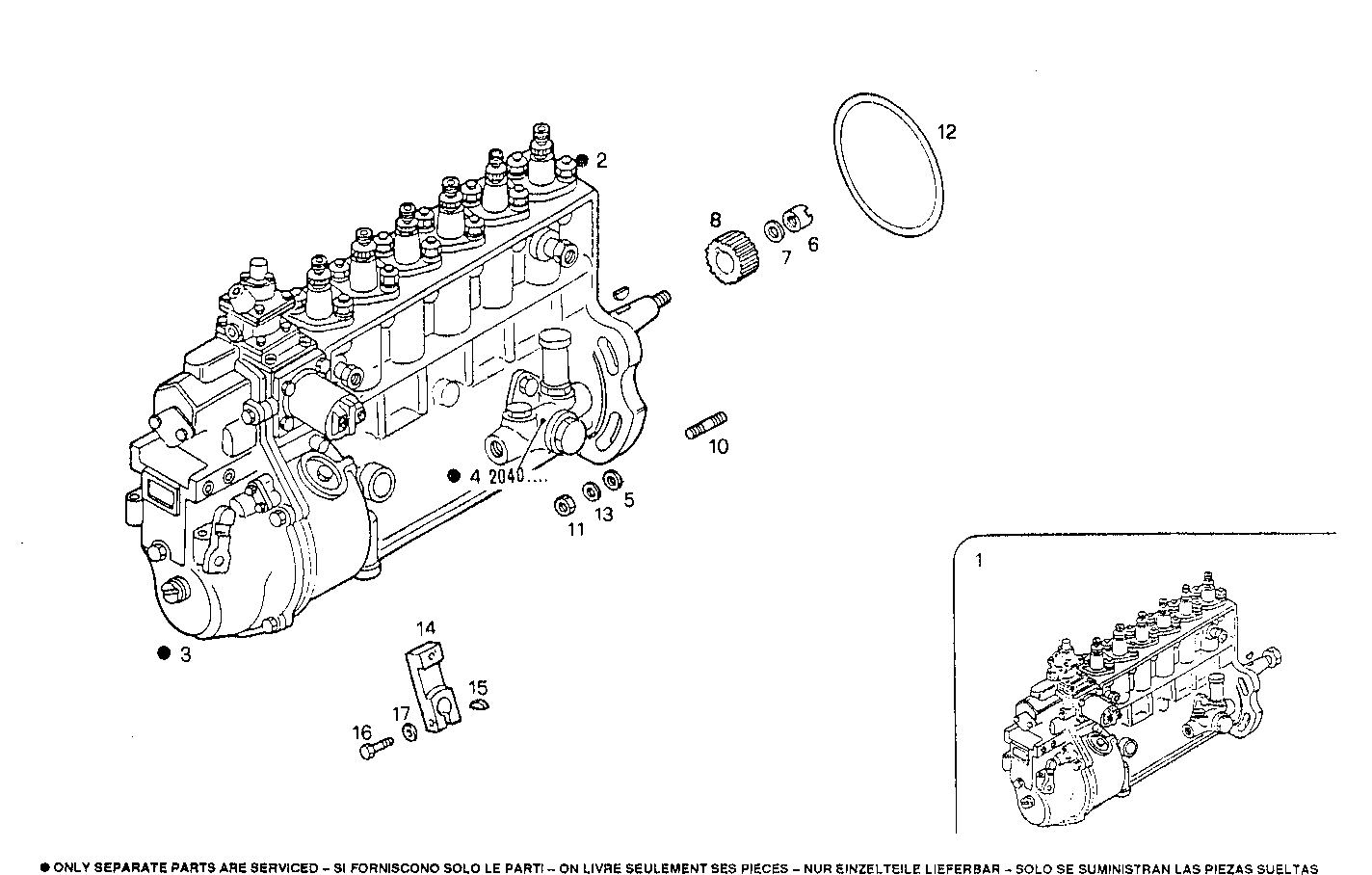

1400.116 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 8012936 | INLINE INJECT.PUMP ASSY BOSCH |
4 | 8092471 | FUEL PUMP ASSY BOSCH |
5 | 12626321 | WASHER Ø10X25 MM |
6 | 4750524 | NUT |
7 | 4750525 | WASHER |
8 | 4816287 | BUSH 156Ø40' |
10 | 13449821 | STUD M10X1,25X15 MM |
11 | 17038221 | HEXAGON NUT M10 |
12 | 98442367 | O-RING |
13 | 17090274 | WASHER Ø10X20 MM |
14 | 8108826 | LEVER |
15 | 1136607 | KEY |
16 | 16602124 | SCREW M5X16 MM |
17 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
