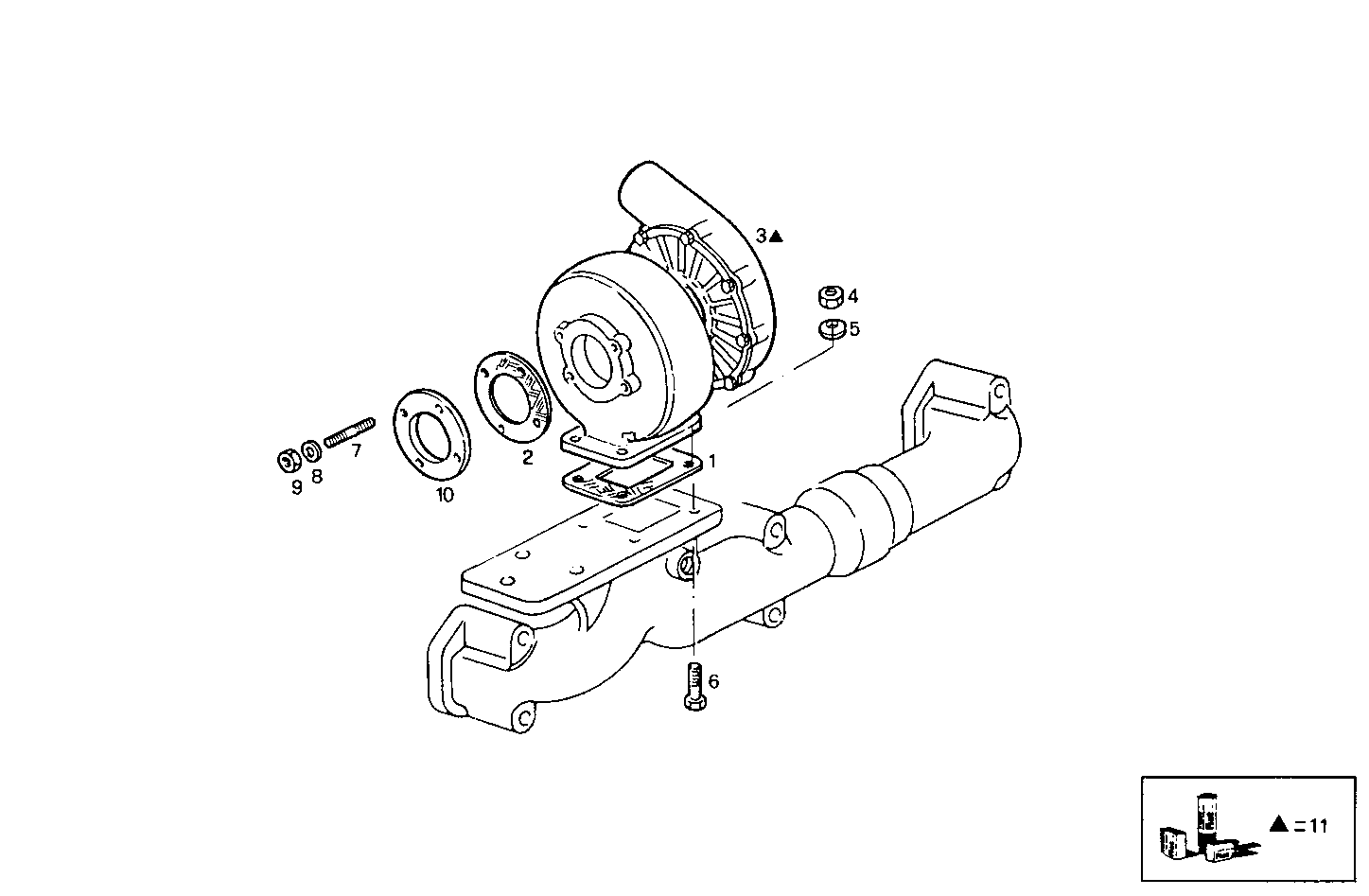

2400.017 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 4632123 GASKET
2 4729026 GASKET
3 8108015 TURBOCHARGER ASSY HOLSET
4 17038221 HEXAGON NUT M10
5 17095004 WASHER Ø10X18X2 MM
6 11307021 HEXAGON BOLT M10X40 MM
7 16729424 STUD M8X1,25X25
8 10730321 WASHER Ø8,15 MM
9 17037931 HEXAGON NUT M8X1,25
10 8113659 FLANGE
11 8090147 KIT-TURBOCHARGER HOLSET
