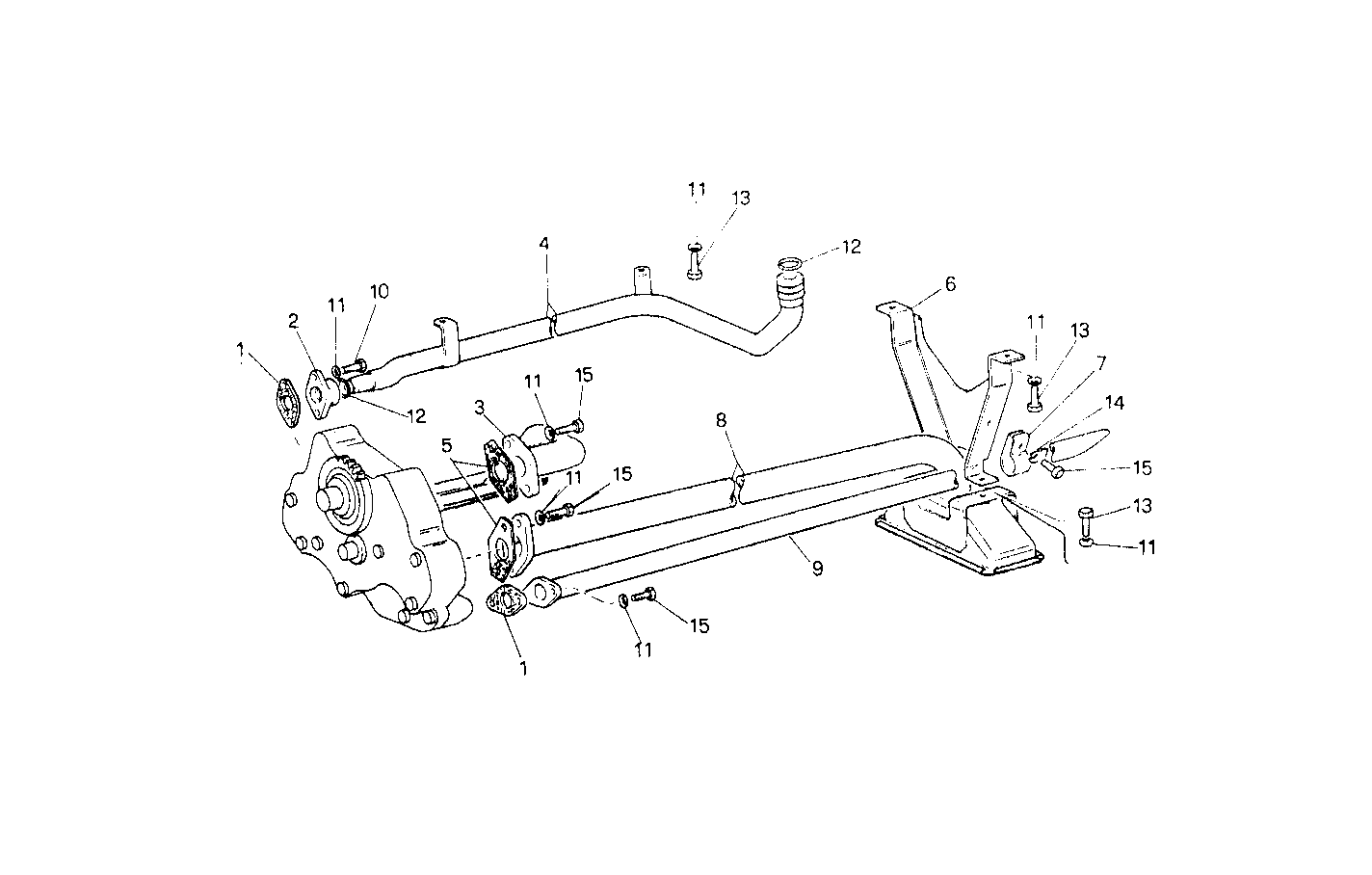

3010.026/02 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98412165 | FLAT ENGINE GASKET |
| 2 | 4692711 | BULKHEAD STR.COUPL |
| 3 | 4764731 | SUCTION STRAINER |
| 4 | 4724228 | OIL LINE |
| 5 | 98412164 | FLAT ENGINE GASKET |
| 6 | 4726348 | RETAINER |
| 7 | 4726350 | CLIP |
| 8 | 4726346 | SUCTION STRAINER |
| 9 | 4726353 | OIL LINE |
| 10 | 16044021 | HEXAGON BOLT M8X1,25X40 MM |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 14457581 | O-RING Ø20,29 MM SP=2,62 MM |
| 13 | 16043324 | HEXAGON BOLT M8X18 MM |
| 14 | 14198711 | PLATE |
| 15 | 16043621 | HEXAGON BOLT M8X25 MM |
