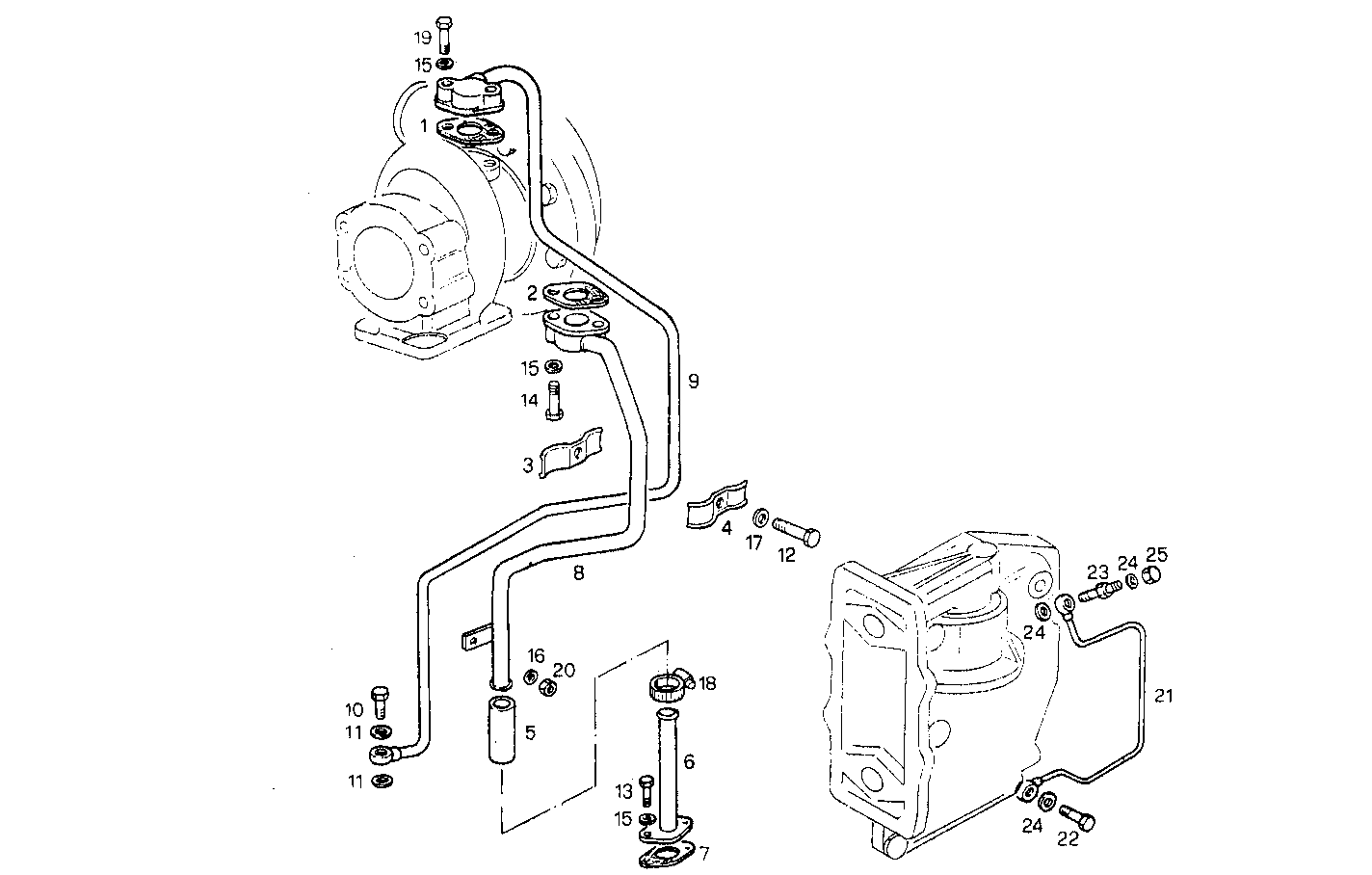

Item |
Part number |
Description |
1 |
98415922 |
FLAT ENGINE GASKET |
2 |
98412509 |
FLAT ENGINE GASKET |
3 |
4754649 |
RETAINER |
4 |
4754651 |
RETAINER |
5 |
98420478 |
RUBBER SLEEVE |
6 |
98426497 |
OIL LINE |
7 |
98412099 |
GASKET |
8 |
98426499 |
OIL LINE |
9 |
98428334 |
OIL LINE |
10 |
4864084 |
BANJO BOLT M16X1,5 |
11 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
12 |
10902321 |
HEXAGON BOLT M6X18 MM (8.8) |
13 |
16043621 |
HEXAGON BOLT M8X25 MM |
14 |
16043821 |
HEXAGON BOLT M8X30 MM |
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
16 |
17090274 |
WASHER Ø10X20 MM |
17 |
17088474 |
WASHER Ø6X12 MM |
18 |
17764592 |
CLIP Ø20/32 MM |
19 |
16625734 |
HEXAGON BOLT M8X35 |
20 |
17038221 |
HEXAGON NUT M10 |
21 |
98427361 |
AIR PIPE/DUCT |
22 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
23 |
10182117 |
SCREW CONNECTOR |
24 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
25 |
10183217 |
LOCK PLUG M12X1,5 |
