8361SRi11.05

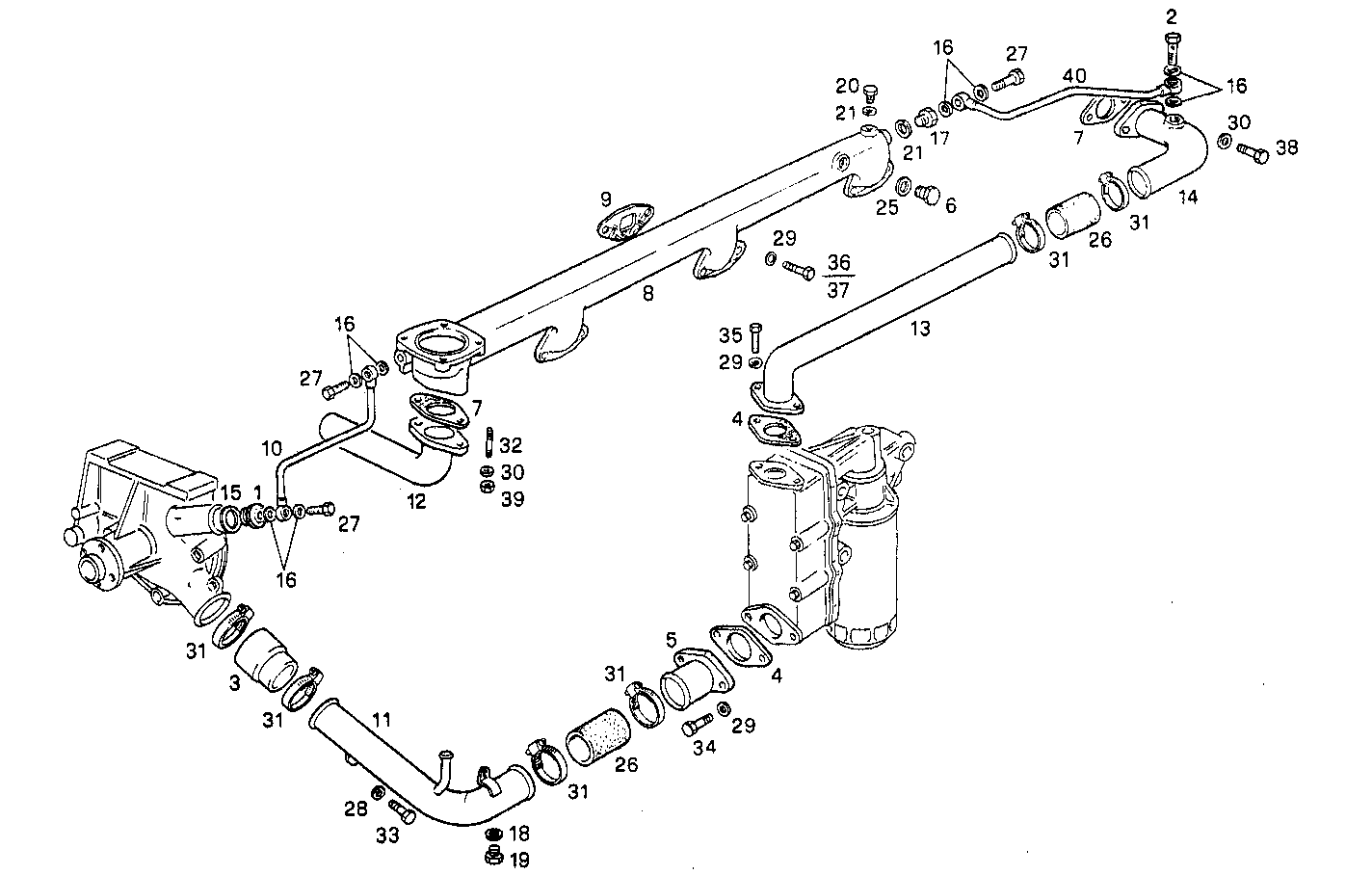

3210.032/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4934984 PLUG
2 8009696 SCREW CONNECTOR M12X1,5X25
3 98432897 WATER HOSE
4 98412396 GASKET
5 4936216 WATER PIPE
6 4595833 THREADED PLUG M20X1,5
7 98412227 GASKET
8 4726340 WATER PIPE
9 98412317 GASKET
10 8012512 WATER PIPE
11 8106109 WATER PIPE
12 8107512 WATER PIPE
13 8106102 WATER PIPE
14 8106101 WATER PIPE
15 10265160 SEAL GASKET Ø35,3 MM
16 4858607 WASHER Ø12X17 MM SP=1,5 MM
17 8113358 PIPE SOCKET
18 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
19 16992211 THREADED PLUG M12X1,5
20 10305171 PLUG M22X1,5
21 16508460 WASHER 22x27x1,5
25 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
26 10138787 RUBBER SLEEVE
27 4864082 BANJO BOLT M12X1,5X25 MM
28 11190579 SPRING WASHER Ø10X20 MM SP=2,3
29 17090274 WASHER Ø10X20 MM
30 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 12174790 CLIP Ø47-67 MM
32 16729424 STUD M8X1,25X25
33 15970521 HEXAGON BOLT M10X20 MM
34 16045721 HEXAGON BOLT M8X125 MM
35 16043621 HEXAGON BOLT M8X25 MM
36 15004021 HEXAGON BOLT M10X1,25X25 MM
37 15971321 HEXAGON BOLT M10X1,25X75 MM
38 16043321 HEXAGON BOLT M8X18 MM
39 16100821 HEXAGON NUT M8
40 8012513 WATER PIPE
