8361SRi11.05

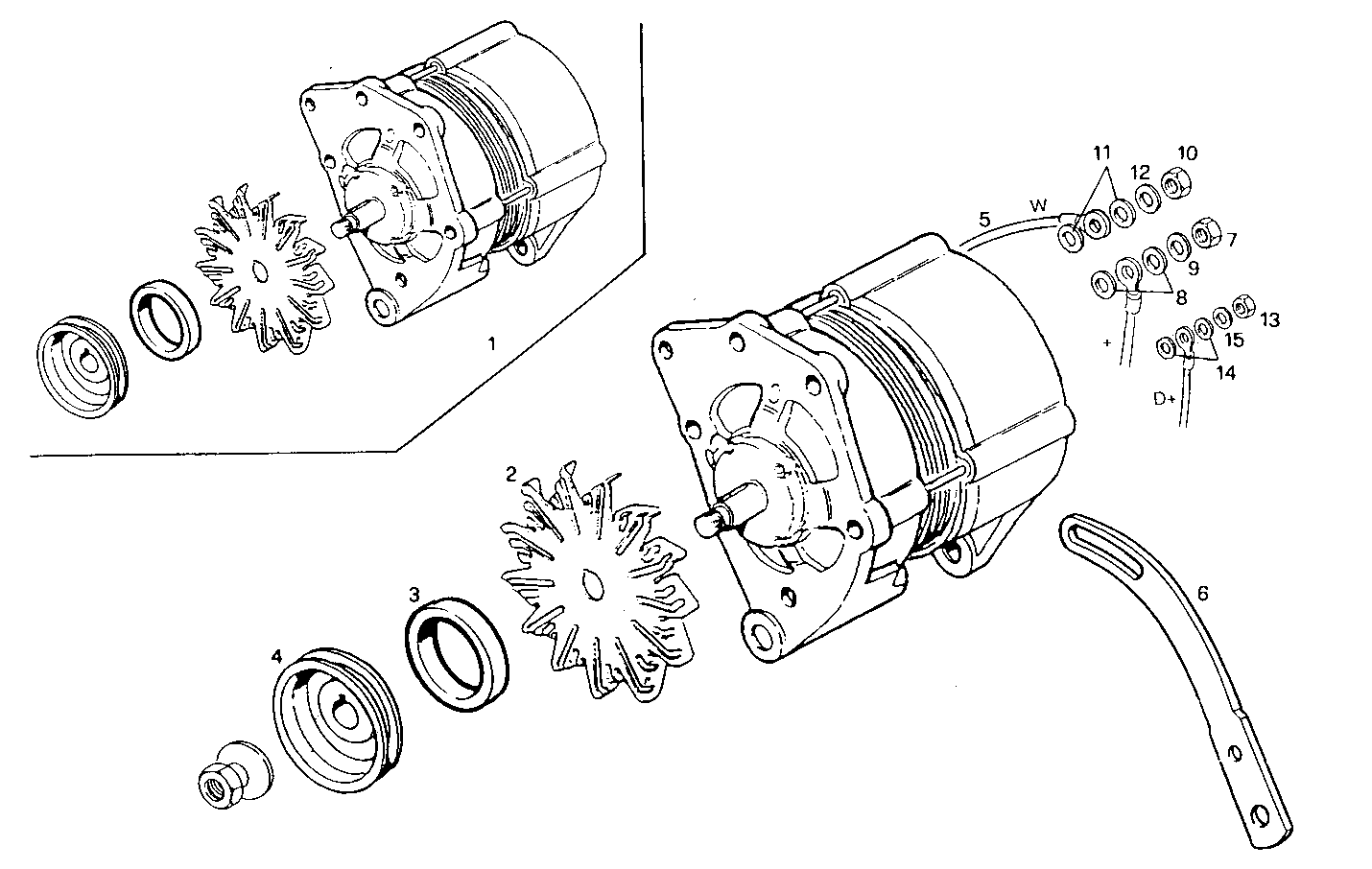

A14120037 SELF-REGULATED ALTERNATOR - 24V 55A (W)
Item | Part number | Description |
---|---|---|
1 | 98424450 | ALTERNATOR ASSY BOSCH |
2 | 4757196 | GENERATOR FAN BOSCH |
3 | 98454596 | SPACING BAR BOSCH |
4 | 4833642 | PULLEY ASSY |
5 | 8019531 | WIRE/CABLE W |
6 | 8100618 | BELT TENSIONER |
7 | 17037931 | HEXAGON NUT M8X1,25 |
8 | 17094914 | WASHER 8x16 |
9 | 17094834 | WASHER |
10 | 17037721 | NUT M5X0,8 |
11 | 17094504 | WASHER Ø5,3X10 MM |
12 | 10615379 | TOOTHED WASHER Ø5,3 MM |
13 | 17037621 | HEXAGON NUT M4 |
14 | 17094204 | WASHER Ø4X8X0,8 MM |
15 | 10615279 | WASHER Ø4 MM |
