8361SRi12.00

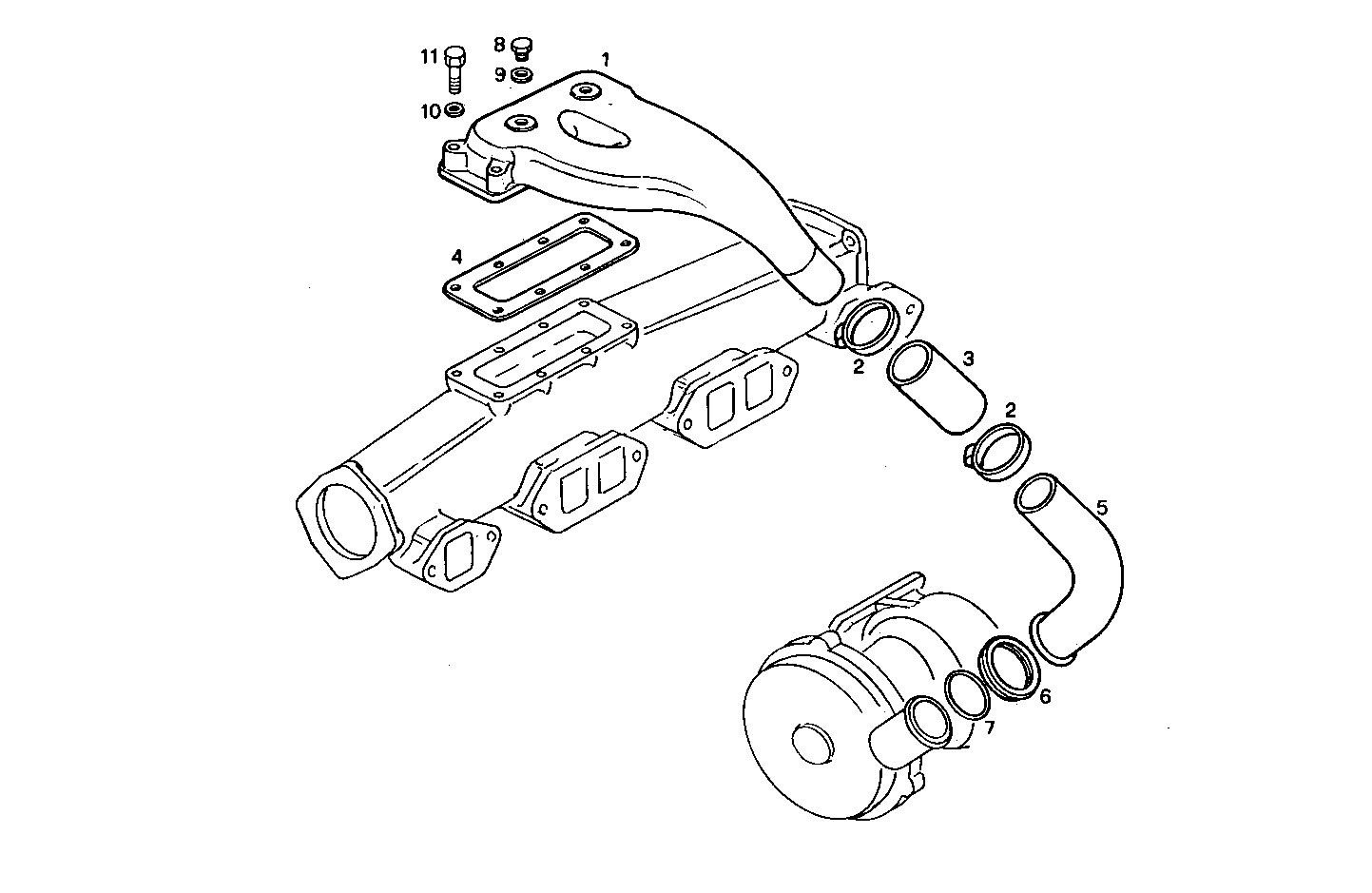

2420.064 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8017705 | INTAKE ELBOW |
| 2 | 17764992 | CLIP Ø50-70 MM |
| 3 | 98437496 | RUBBER SLEEVE |
| 4 | 8019078 | GASKET |
| 5 | 8017685 | EXHAUST ELBOW |
| 6 | 4853260 | CLIP |
| 7 | 17284281 | O-RING Ø55,24X2,62 MM |
| 8 | 10304911 | THREADED PLUG M20X1,5 |
| 9 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 10 | 17793804 | WASHER Ø8X21X1,5 MM |
| 11 | 8023383 | SCREW M10X45 |
