8361SRI12.00A800

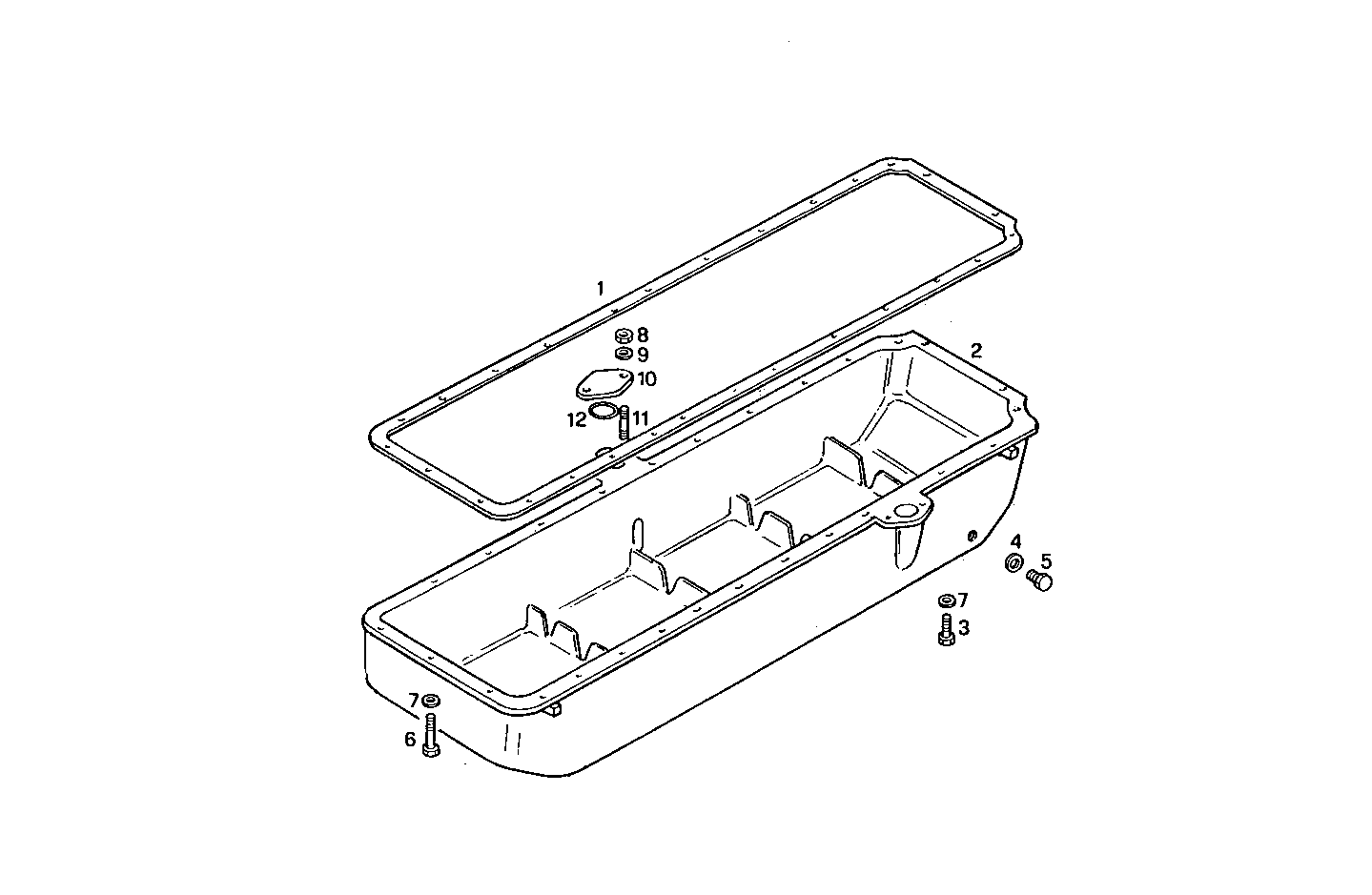

0420.053 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 98424771 | OIL SUMP GASKET |
| 2 | 98427149 | OIL SUMP |
| 3 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 4 | 10257060 | SEAL GASKET Ø16X22 MM SP=1,5 MM |
| 5 | 16992240 | THREADED PLUG M12X1,5 |
| 6 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
| 9 | 17089574 | WASHER Ø8X16 MM |
| 10 | 4726295 | COVER |
| 11 | 16729324 | STUD M8X12X20 MM |
| 12 | 17282481 | O-RING Ø26,64 MM SP=2,62 MM |
