8361SRI12.00A800

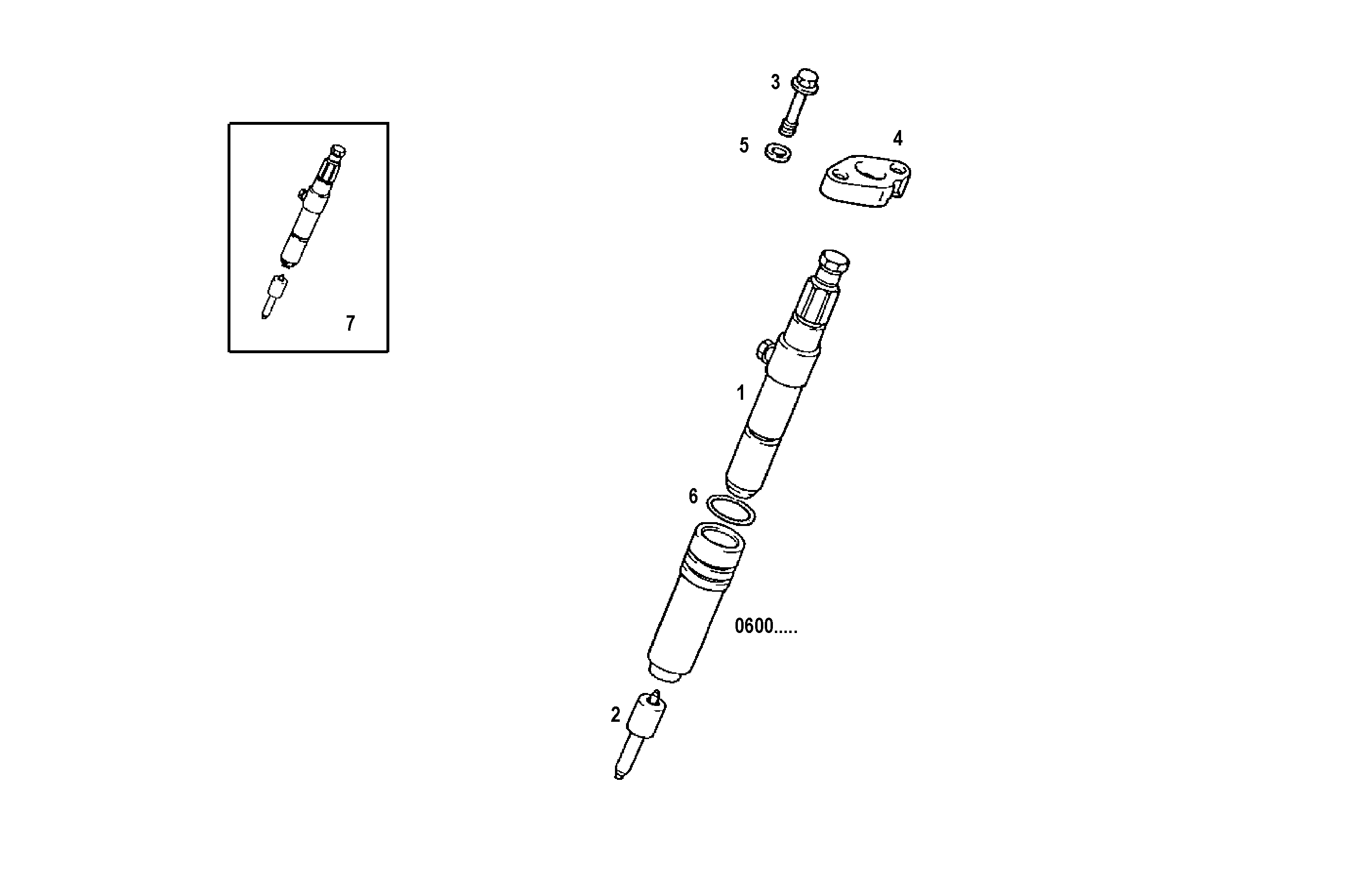

1420.044 INJECTORS
Item | Part number | Description |
---|---|---|
1 | 98404700 | NOZZLE HOLDER ASSY BOSCH |
2 | 98418591 | FUEL NOZZLE |
3 | 16288824 | HEXAGON BOLT M10X45 MM |
4 | 98406199 | FASTENING BRACKET |
5 | 4700162 | WASHER Ø11,5 MM |
6 | 17278581 | O-RING Ø18,77 MM SP=1,78 MM |
7 | 98418590 | NOZZLE ASSY |
