8361SRI12.00A800

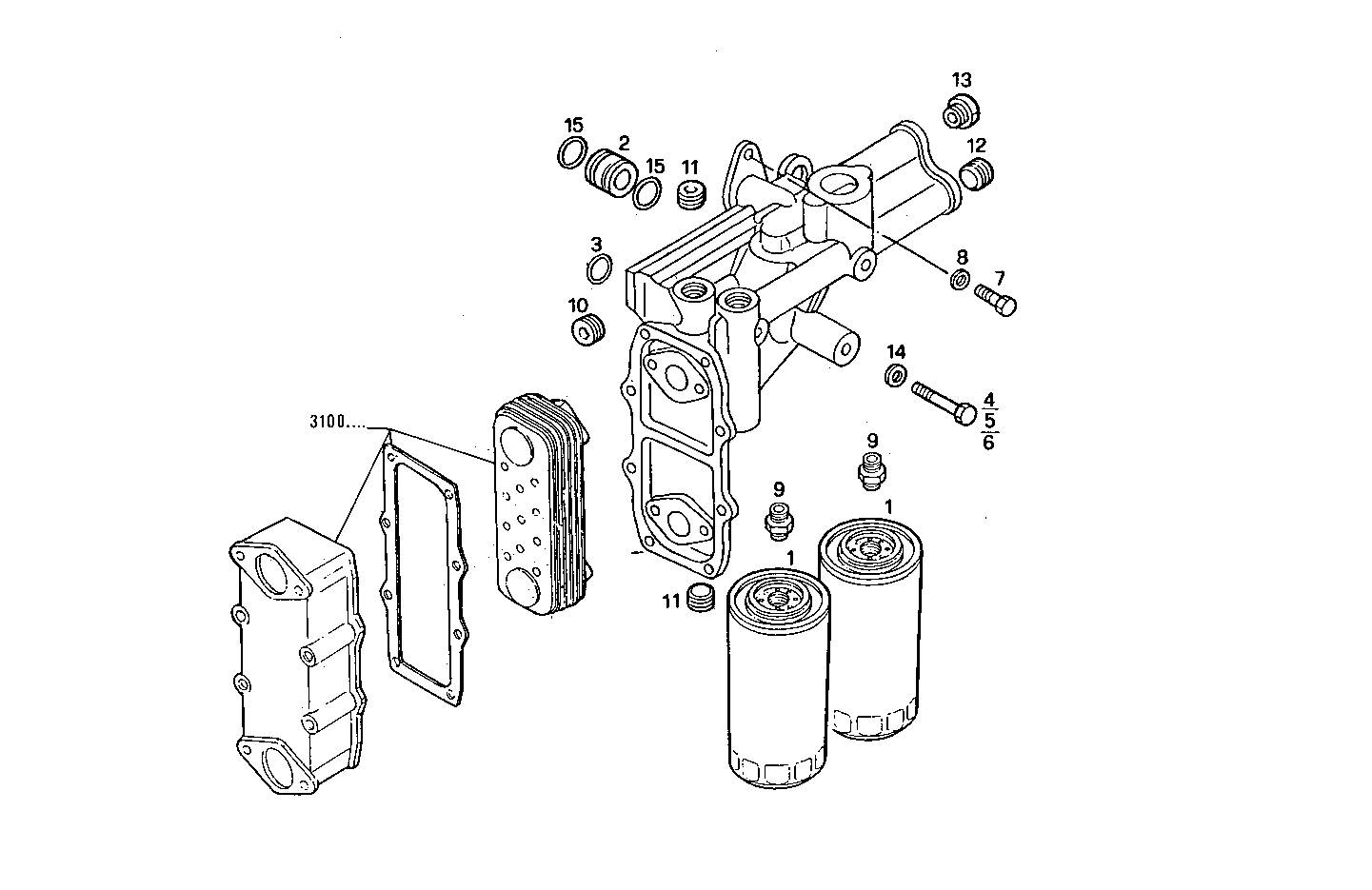

3020.036 OIL FILTERS

Iveco/FPT OIL FILTERS

Item Part number Description
1 1903629 OIL FILTER CARTRIDGE
2 4853307 CENTERING BUSH
3 17282581 O-RING Ø28,24 MM SP=2,62 MM
4 15541121 HEXAGON BOLT M12X1,25X65 MM
5 15541721 HEXAGON BOLT M12X1,25X110 MM
6 15542121 HEXAGON BOLT M12X1,25X150
7 16605624 HEXAGON BOLT M8X25 MM (8.8)
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 4741301 THREADED UNION ASSY
10 16994811 LOCK PLUG M22
11 16994911 LOCK PLUG M24
12 16994711 LOCK PLUG M20
13 4846400 PIPE SOCKET
14 17091074 WASHER Ø12X24X2,8 MM
15 17278981 O-RING Ø25,12 MM SP=1,78 MM
