8361SRI12.00A800

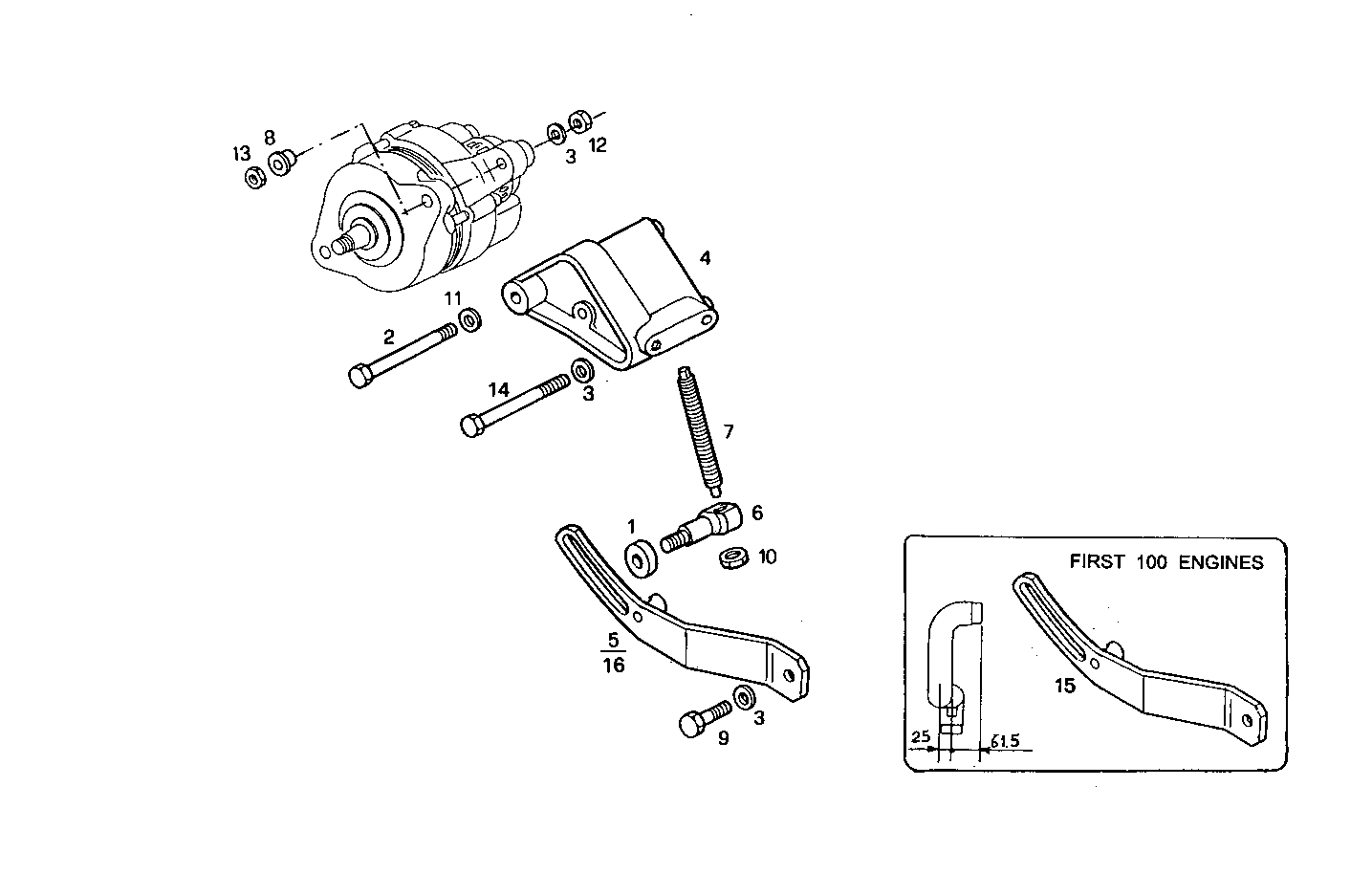

4010.035 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4513436 | SUPPORT RING Ø10X21X2 MM |
| 2 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
| 3 | 17091074 | WASHER Ø12X24X2,8 MM |
| 4 | 4853916 | SUPPORT |
| 5 | 4853918 | BELT TENSIONER [up to 05-98] |
| 6 | 4853920 | ADJUSTING SCREW |
| 7 | 4853921 | ADJUSTING SCREW |
| 8 | 4853922 | SPACING BAR |
| 9 | 11306921 | SCREW M10X1,25X30 |
| 10 | 16979731 | NUT M10X1,25 |
| 11 | 12646901 | WASHER Ø12X28 MM |
| 12 | 17042931 | NUT M12 |
| 13 | 17157221 | NUT M10X1,25 |
| 14 | 15971824 | SCREW M10X1,25X100 |
| 15 | 8018461 | TENSIONER |
| 16 | 8026709 | TENSIONER [from 05-98] |
