8361SRi13.00

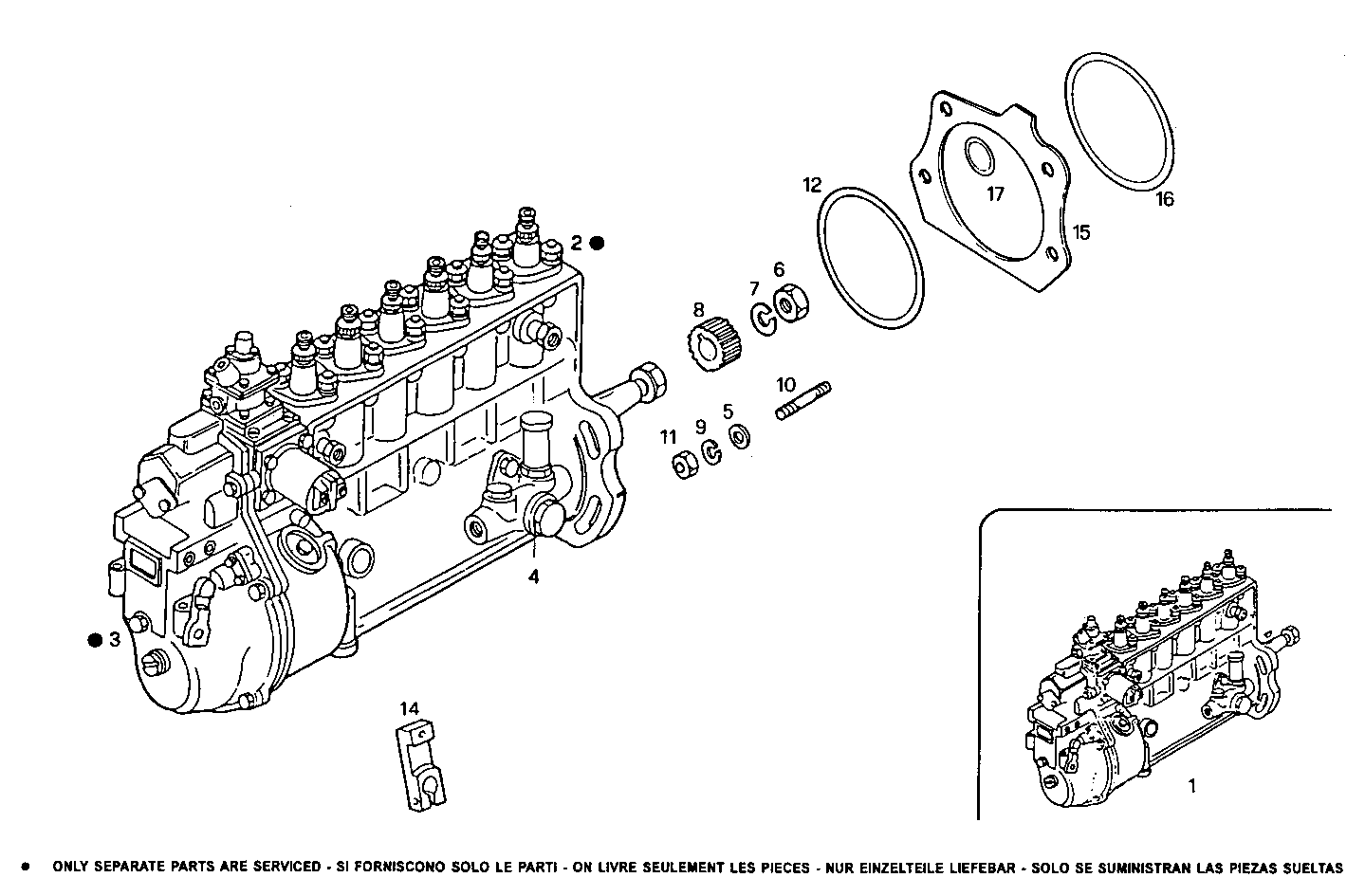

1400.239 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 8023786 | INLINE INJECT.PUMP ASSY BOSCH |
5 | 759850 | WASHER Ø10X21X2 MM |
6 | 4750524 | NUT |
7 | 4750525 | WASHER |
8 | 4816287 | BUSH 156Ø40' |
9 | 17090274 | WASHER Ø10X20 MM |
10 | 13449824 | STUD M10X1,25X15 MM |
11 | 17038221 | HEXAGON NUT M10 |
12 | 98429284 | O-RING |
14 | 8023697 | LEVER |
15 | 8023762 | SPACING BAR |
16 | 42492884 | O-RING |
17 | 61317701 | O-RING Ø3,2X10 MM |
