8361SRi13.00

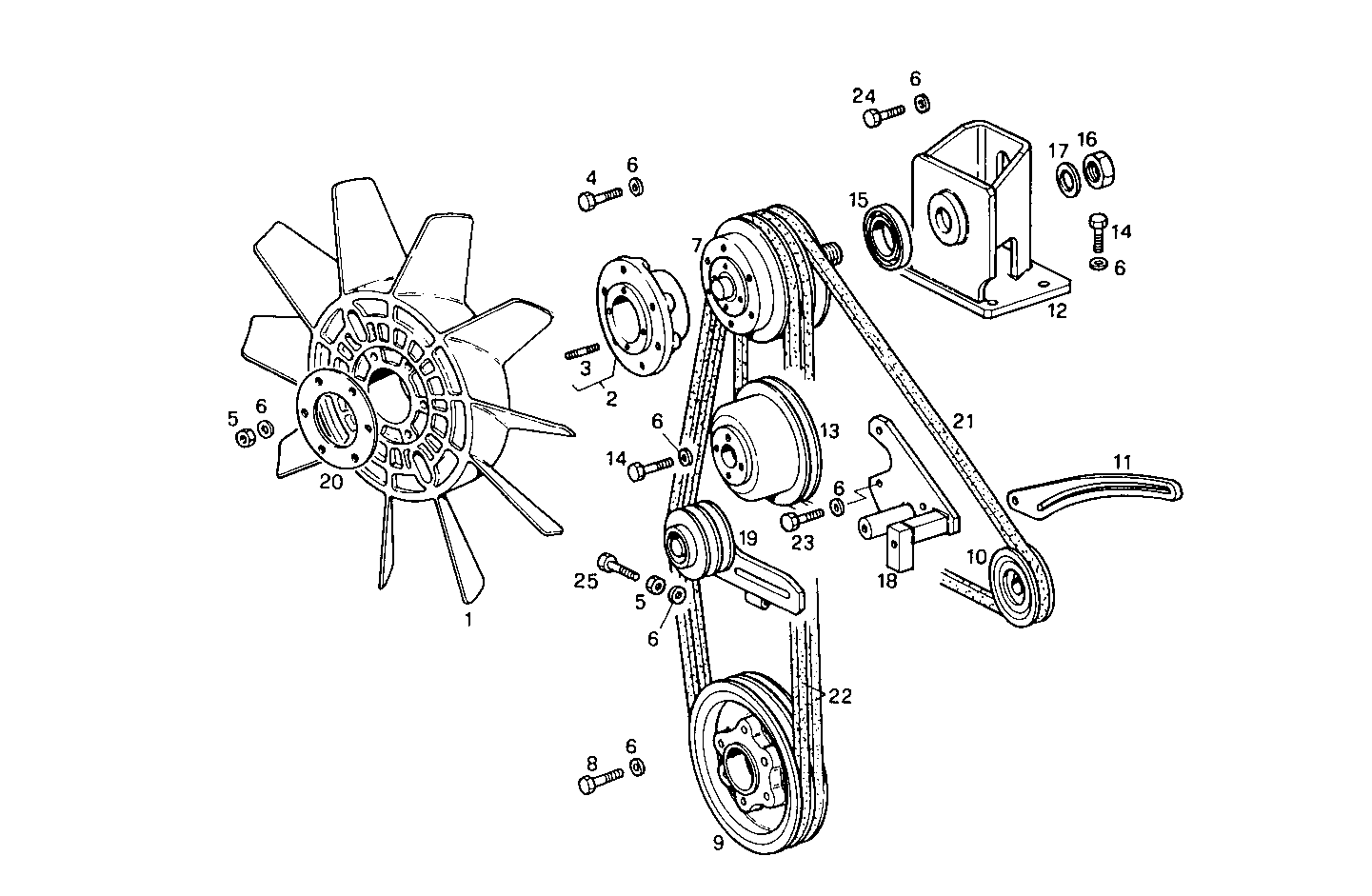

A08000041 PULLER FAN - high position
| Item | Part number | Description |
|---|---|---|
| 1 | 4629725 | BLOWER Ø560 MM |
| 2 | 4936525 | HUB ASSY |
| 3 | 13546621 | STUD M10X1,25X20X35 MM |
| 4 | 15971631 | HEXAGON BOLT M10X1,25X90 |
| 5 | 12164711 | HEXAGON NUT M10X1,25 |
| 6 | 11198371 | SPRING WASHER Ø10X20 MM |
| 7 | 8007613 | PULLEY |
| 8 | 15888831 | HEXAGON BOLT M10X70 MM |
| 9 | 8112730 | PULLEY |
| 10 | 8112961 | PULLEY |
| 11 | 4626125 | RETAINER |
| 12 | 8007596 | SUPPORT |
| 13 | 8113709 | PULLEY |
| 14 | 11306931 | SCREW M10X1,25X30 |
| 15 | 4772231 | SPACER RING |
| 16 | 12164421 | NUT |
| 17 | 11200579 | WASHER |
| 18 | 8112731 | SUPPORT |
| 19 | 8112733 | BELT TENSIONER |
| 20 | 4629908 | SUPPORT RING |
| 21 | 8110511 | V-BELT |
| 22 | 8005523 | V-BELT KIT |
| 23 | 15971321 | HEXAGON BOLT M10X1,25X75 MM |
| 24 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 25 | 15231721 | SCREW M10X1,25X65 |
| 26 | 11343731 | SCREW |
