8361SRi13.00

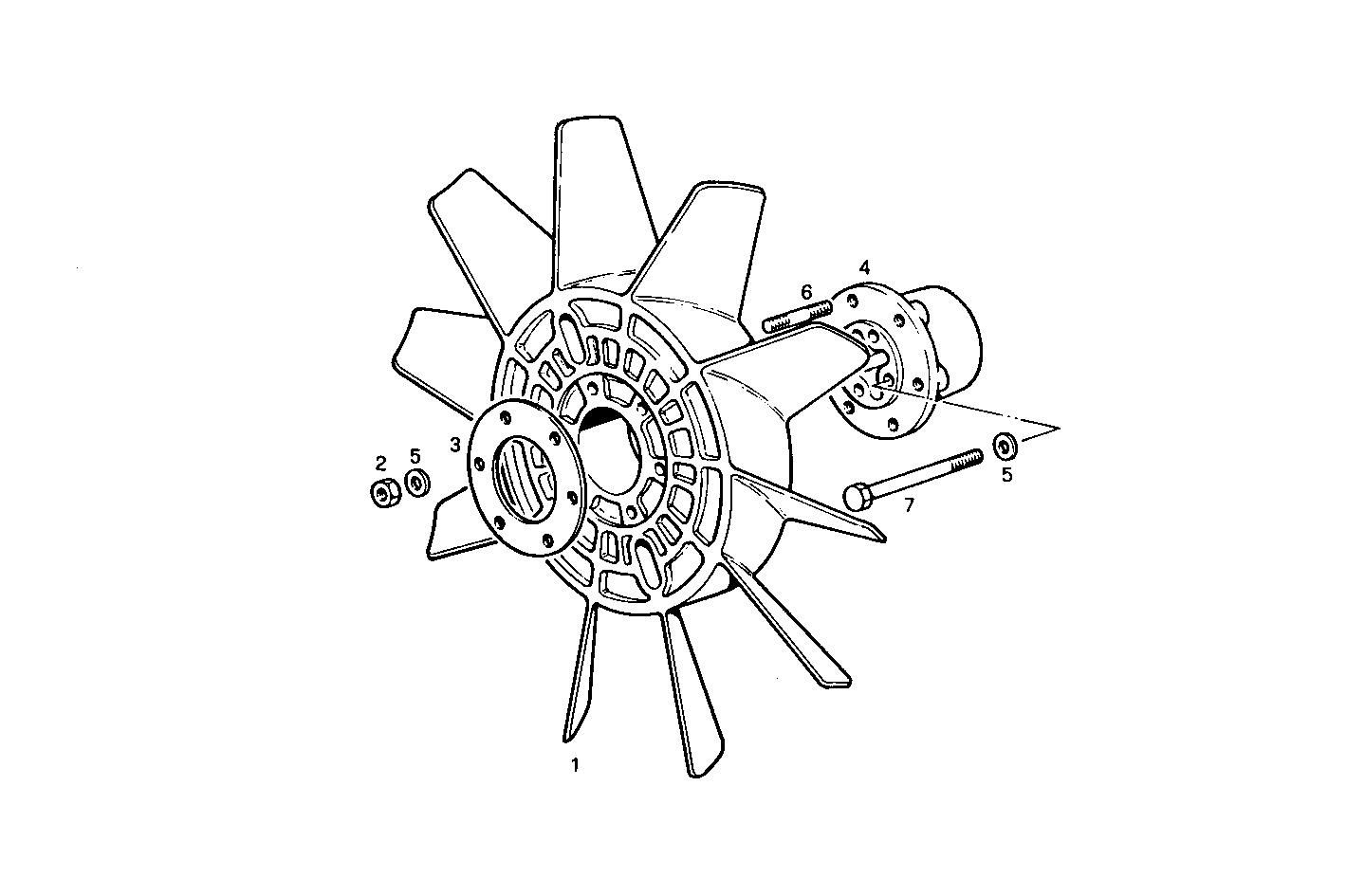

A08030004 PULLER FAN - on water pump
Item | Part number | Description |
---|---|---|
1 | 4629725 | BLOWER Ø560 MM |
2 | 12164711 | HEXAGON NUT M10X1,25 |
3 | 4629908 | SUPPORT RING |
4 | 8104535 | HUB |
5 | 11198371 | SPRING WASHER Ø10X20 MM |
6 | 13546621 | STUD M10X1,25X20X35 MM |
7 | 15972121 | SCREW M10X1,25X115 |
