Catalogue Menu

8361SRi15.02

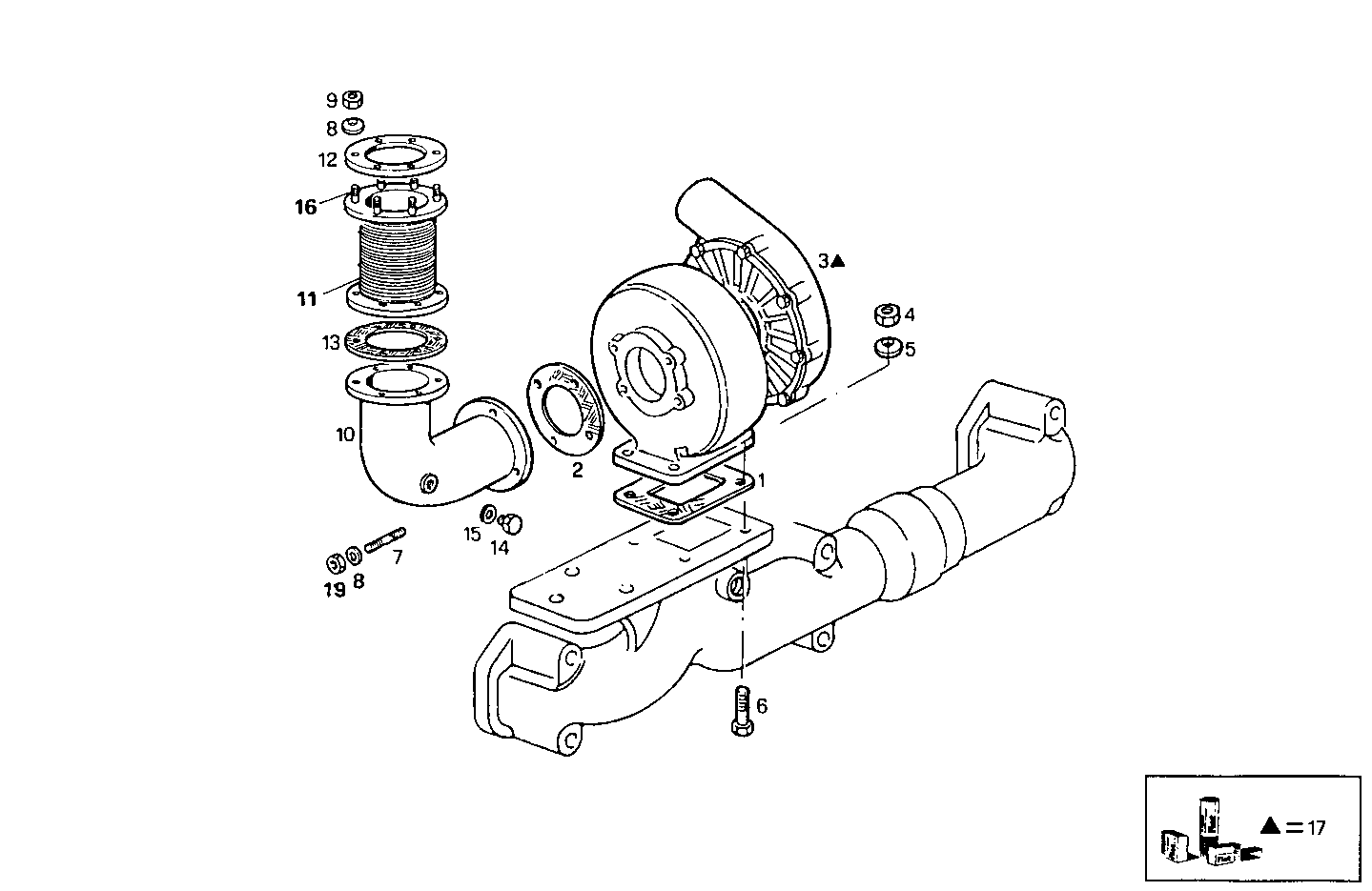

2400.018 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 4632123 GASKET
2 8107311 GASKET
3 8107560 TURBOCHARGER ASSY HOLSET
4 17038121 HEXAGON NUT M10
5 17095004 WASHER Ø10X18X2 MM
6 16607824 HEXAGON BOLT M10X35 MM (8.8)
7 16729424 STUD M8X1,25X25
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 17037931 HEXAGON NUT M8X1,25
10 8107751 EXHAUST ELBOW
11 4935378 EXHAUST BELLOWS
12 4919183 FLANGE
13 8009606 GASKET
14 16992211 THREADED PLUG M12X1,5
15 4858607 WASHER Ø12X17 MM SP=1,5 MM
16 13516921 STUD M8X12X22 MM
17 8090147 KIT-TURBOCHARGER HOLSET
19 17030321 NUT
