8361SRi15.02

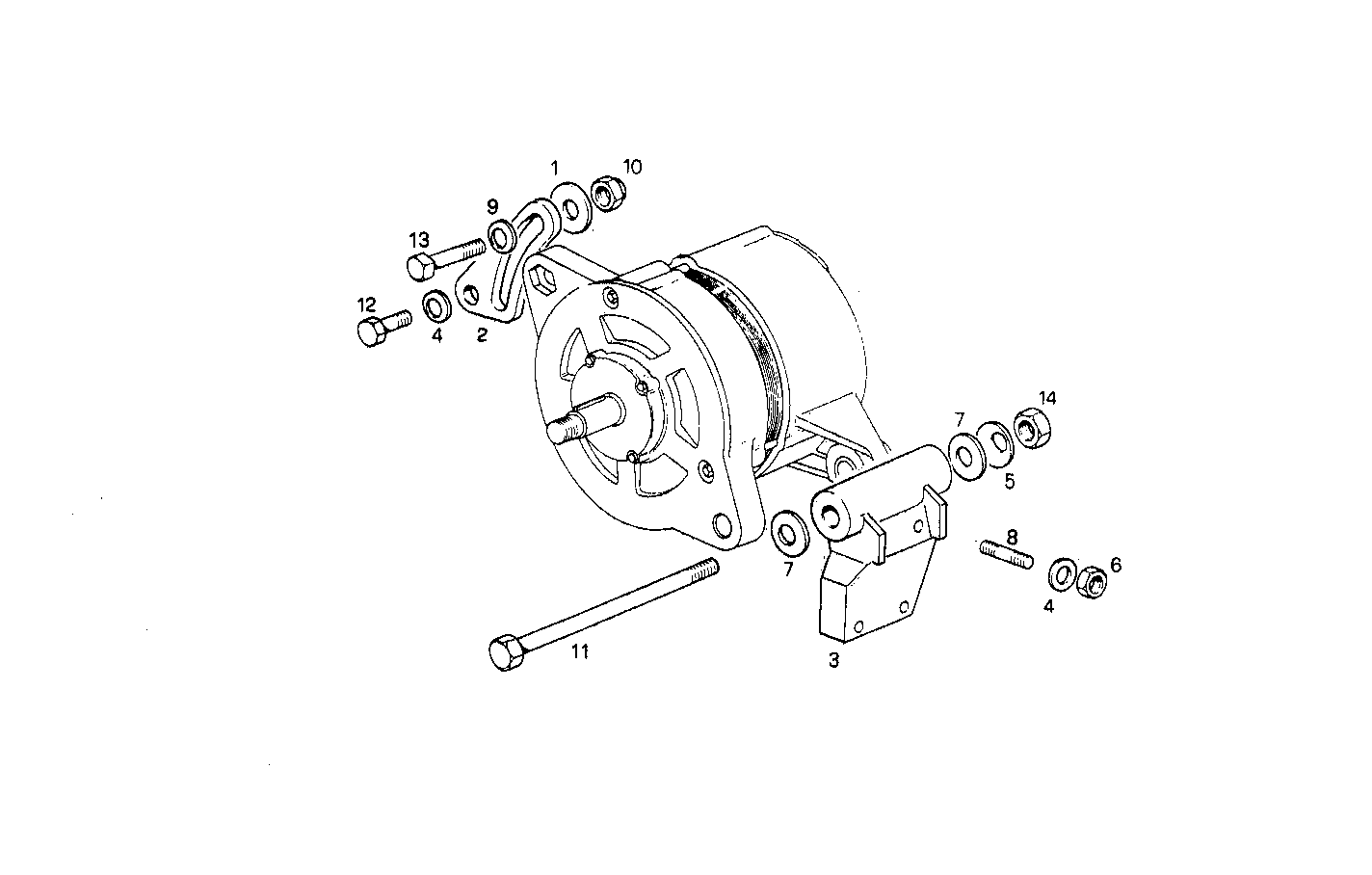

4010.054 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4513436 | SUPPORT RING Ø10X21X2 MM |
| 2 | 4712521 | BELT TENSIONER |
| 3 | 8105500 | SUPPORT |
| 4 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 5 | 11198679 | SPRING WASHER Ø13 MM |
| 6 | 12164711 | HEXAGON NUT M10X1,25 |
| 7 | 12646901 | WASHER Ø12X28 MM |
| 8 | 13546421 | STUD M10X1,25X48 MM |
| 9 | 12626001 | WASHER Ø10X21X2 MM |
| 10 | 14048717 | NUT M10X1,25 |
| 11 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
| 12 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 13 | 11234721 | HEXAGON BOLT M10X1,25X45 MM |
| 14 | 16101511 | HEXAGON NUT M12X1,25 |
