8361SRi25.00

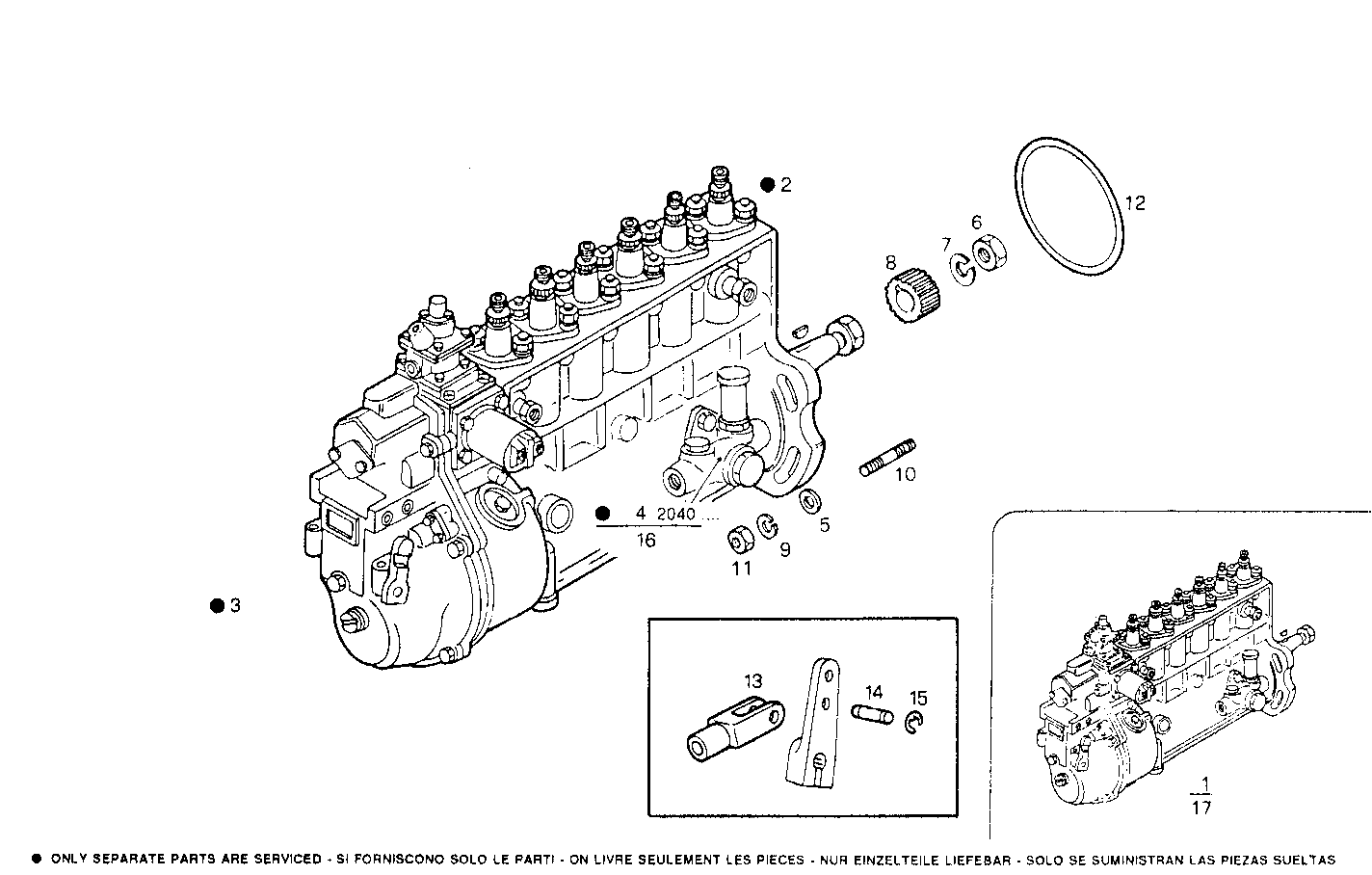

1400.041 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 4807509 | INLINE INJECT.PUMP W.ALTECNA |
| 4 | 772110 | FUEL PUMP ASSY WEBER ALTECNA |
| 5 | 759850 | WASHER Ø10X21X2 MM |
| 6 | 4750524 | NUT |
| 7 | 4750525 | WASHER |
| 8 | 4816287 | BUSH 156Ø40' |
| 9 | 17090274 | WASHER Ø10X20 MM |
| 10 | 13449824 | STUD M10X1,25X15 MM |
| 11 | 17038221 | HEXAGON NUT M10 |
| 12 | 17289281 | O-RING Ø34,5 MM SP=3,53 MM |
| 13 | 10001071 | CLEVIS |
| 14 | 10249110 | GUIDE BOLT Ø6 MM |
| 15 | 11087776 | CIRCLIP Ø5 MM |
| 16 | 1173764 | FUEL PUMP ASSY |
| 17 | 98453585 | INLINE INJECT.PUMP BOSCH |
