8361SRi25.00

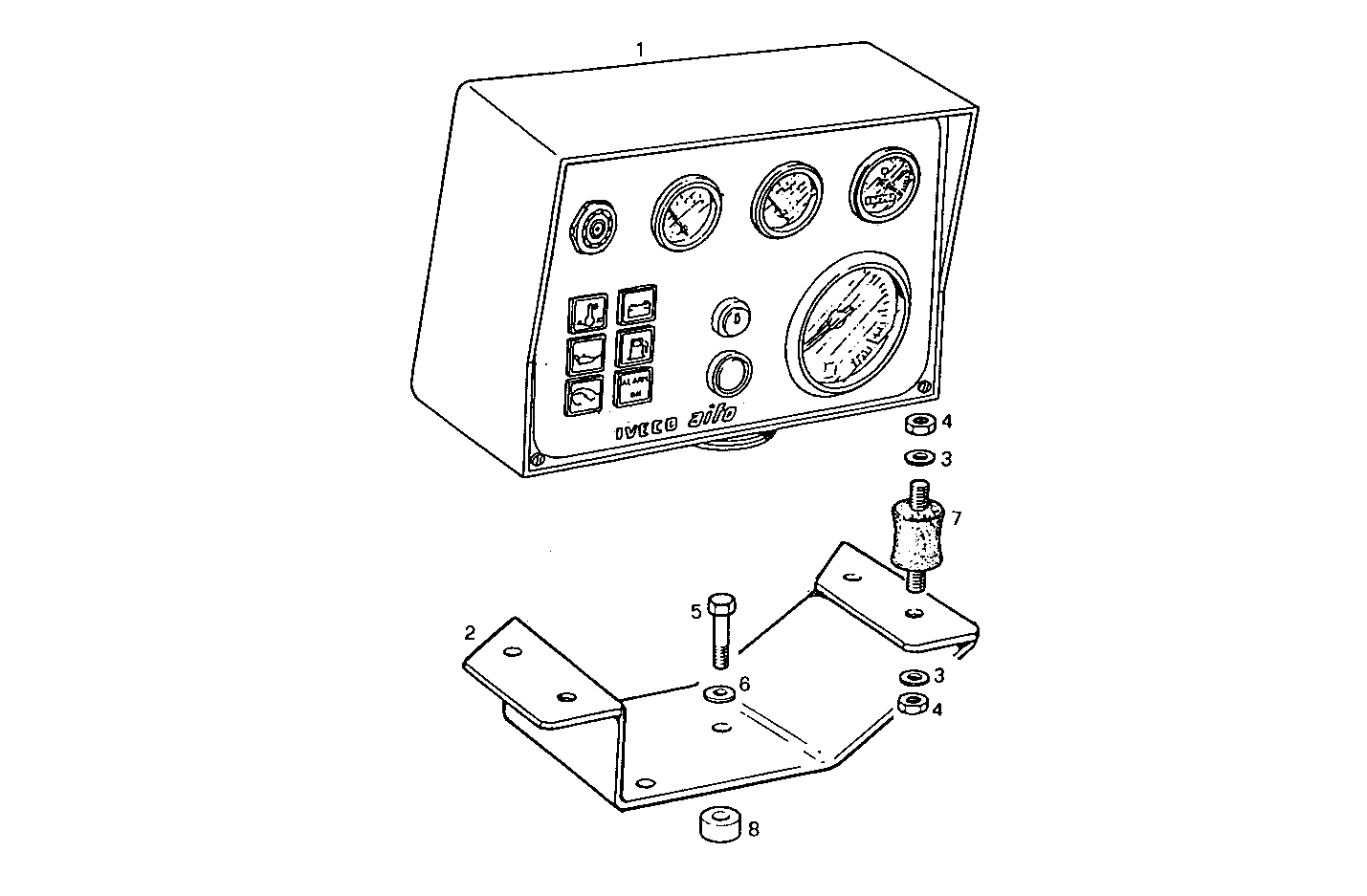

A38680005/01 ELECTRIC INSTRUMENTS PANEL - VEGLIA 24V
Item | Part number | Description |
---|---|---|
1 | 8005746 | INSTRUMENTS BOARD ASSY |
2 | 8011723 | SUPPORT |
3 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
4 | 15896211 | HEXAGON NUT M6 |
5 | 16044421 | HEXAGON BOLT M8X60 MM |
6 | 11198371 | SPRING WASHER Ø10X20 MM |
7 | 4910949 | RUBBER LUG |
8 | 13606411 | SPACER SP=8,5 MM |
